9.1 Automatically Measuring Waveform Parameters

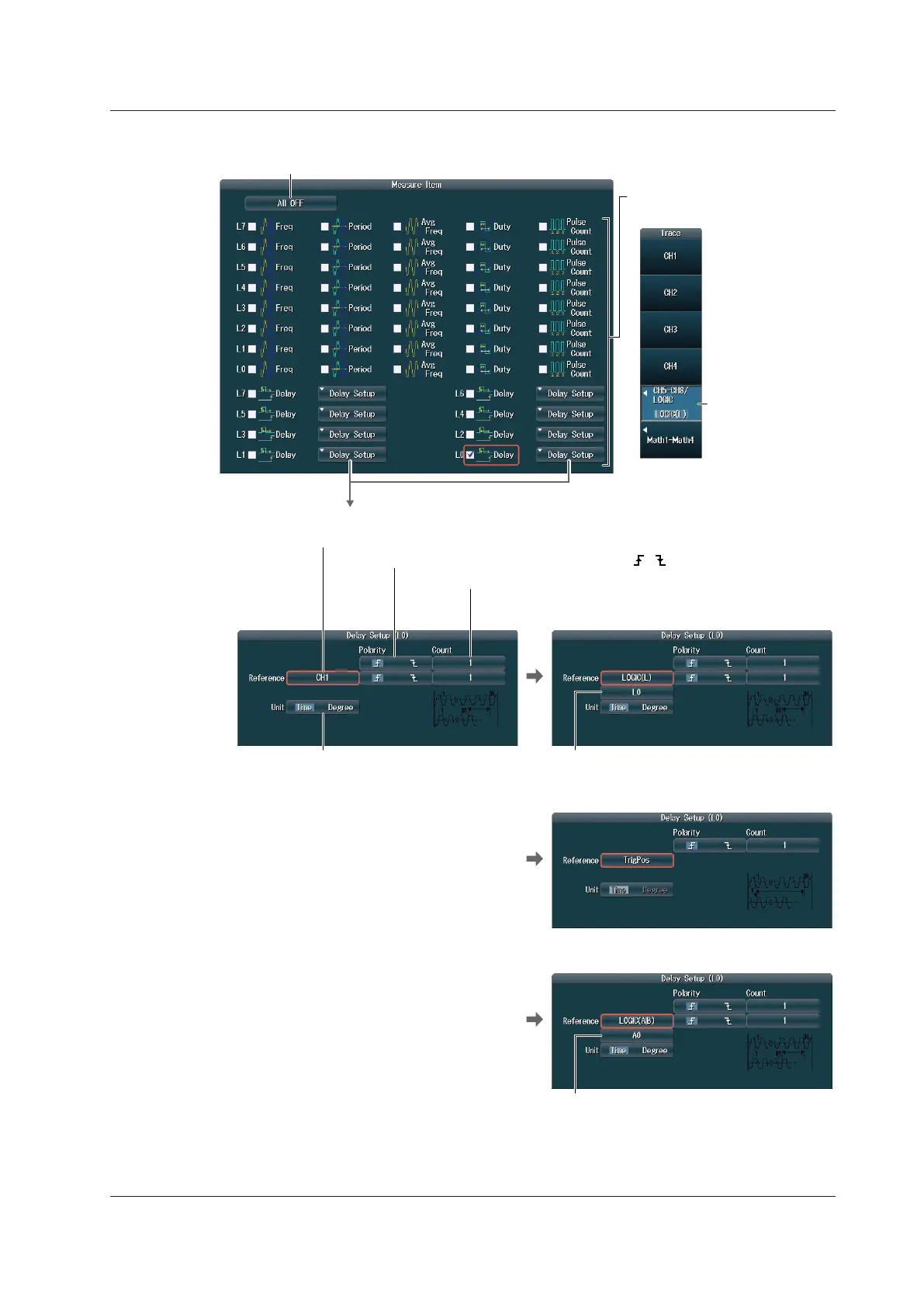

When the Measurement Source Waveform Is LOGIC(L)
* LOGIC(A|B) is available on models with the /L16 option.
Press the LOGIC(L)
soft key.
Clears the check boxes of all the measurement items
Set the reference (CH1 to CH7, LOGIC(L), LOGIC(A|B),
*
Math1 to Math4, TrigPos).
Set the unit (Time, Degree).
Set the reference bit (L0 to L7).
Set the polarity of the edge to be detected ( , ).
Set which counted edge to use as a detected point.
Configure the measurement of delay between waveforms.
• When Reference is set to LOGIC(L).
• When Reference is set to TrigPos.
Select the measurement items
that you want to use.
Set the reference bit (A0 to A7, B0 to B7).
• When Reference is set to LOGIC(A|B).
*
