Manual Setup

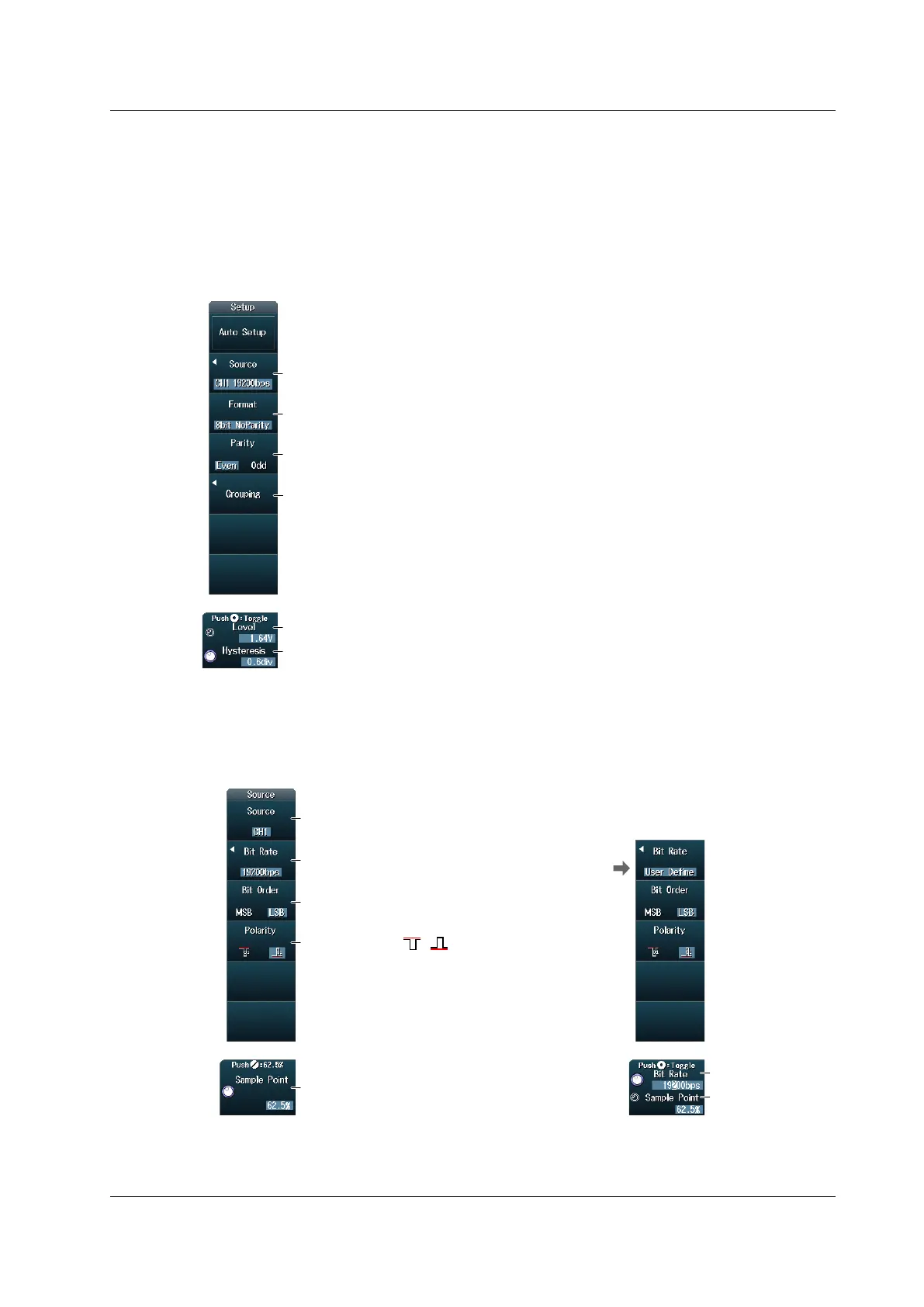

After running auto setup, you can change the following settings and display decoded results.
• Source
• Format
• Parity
• Grouping
• Level used to detect source states
• Hysteresis
Set the source.
Set the data format (8bit NoParity, 7bit Parity, 8bit Parity).
Set the parity check (Even, Odd).
Turn grouping on or off.
Set the level used to detect source states.
Set the hysteresis.
Setting the Source (Source)
Press the Source soft key to display one of the menus shown below. The menu that is displayed
varies depending on the specified source.
• When the Source is CH1 to CH8 or Math1 to Math4
Set the sample point.
Set the source
(CH1 to CH8, Math1 to Math4).
Set the bit rate.
Set the sample point.
When the Bit Rate Is Set
to User Define
Set the bit rate
(1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps,
38400 bps, 57600 bps, 115200 bps, User Define).
Set the bit order (MSB, LSB).
Set the polarity ( , ).
0 1
0 1
12.8 Analyzing and Searching UART Signals (Option)
