YOKOGAWA DLM4000 Series User Manual

12-42
IM DLM4038-02EN

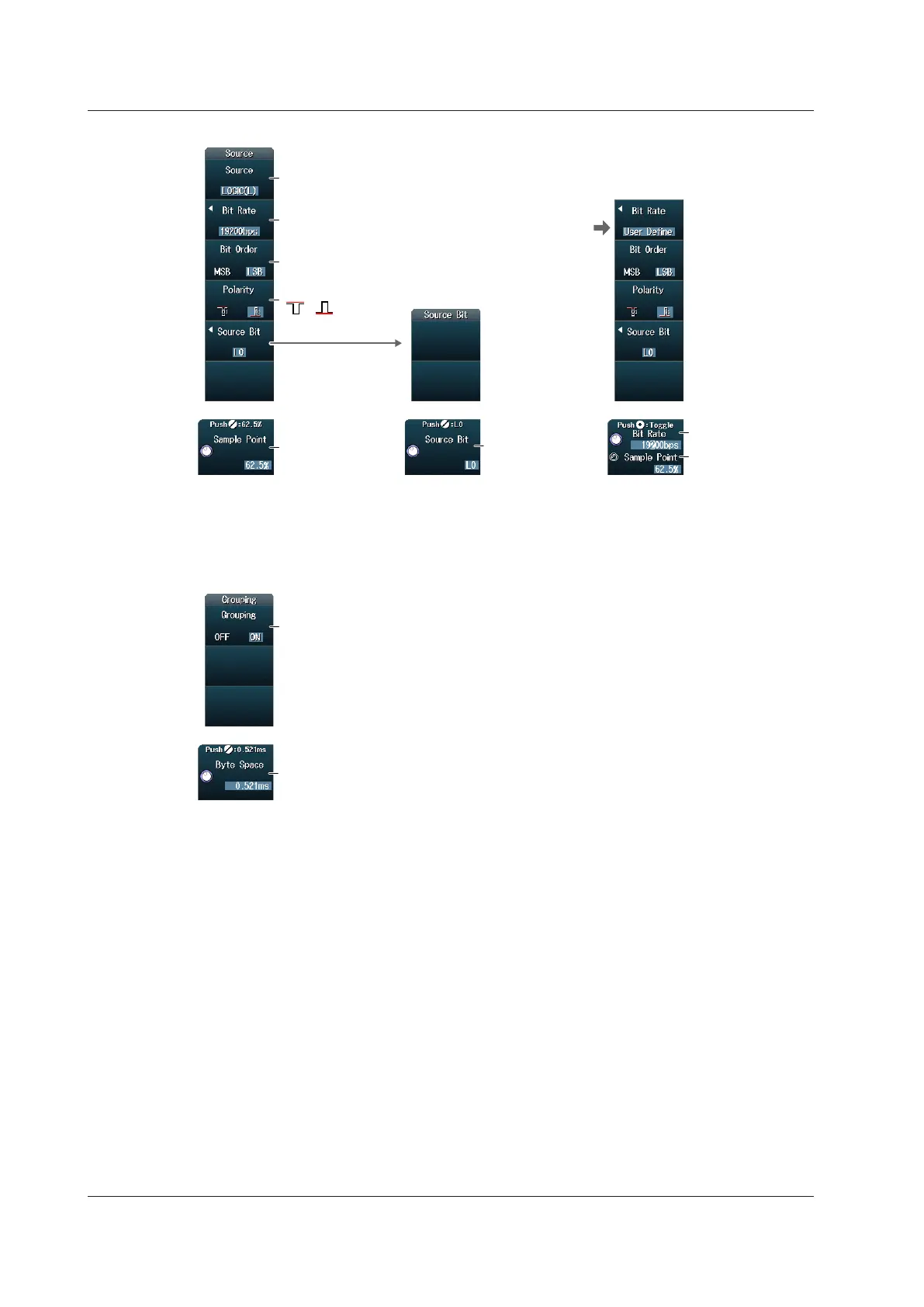

• When the Source Is LOGIC(L) or LOGIC(A|B)
Set the source bit
(L0 to L7, A0 to A7,
B0 to B7).*
Set the sample
point.
Set the source (LOGIC(L), LOGIC(A|B)).*
Set the bit rate.
Set the sample
point.
When the Bit Rate Is
Set to User Define
Set the bit rate
(1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps,
38400 bps, 57600 bps, 115200 bps, User Define).
Set the bit order (MSB, LSB).
Set the polarity
( , ).
* You can select CH8 or LOGIC(L), depending on which channelʼs corresponding key (CH8 or L) is illuminated.
LOGIC(A|B), A0 to A7, and B0 to B7 are available on models with the /L16 option.
0 1
0 1
Setting the Grouping (Grouping)
Press the Grouping soft key to display the following menu.
Set the byte space.
Turn grouping on or off.
12.8 Analyzing and Searching UART Signals (Option)
