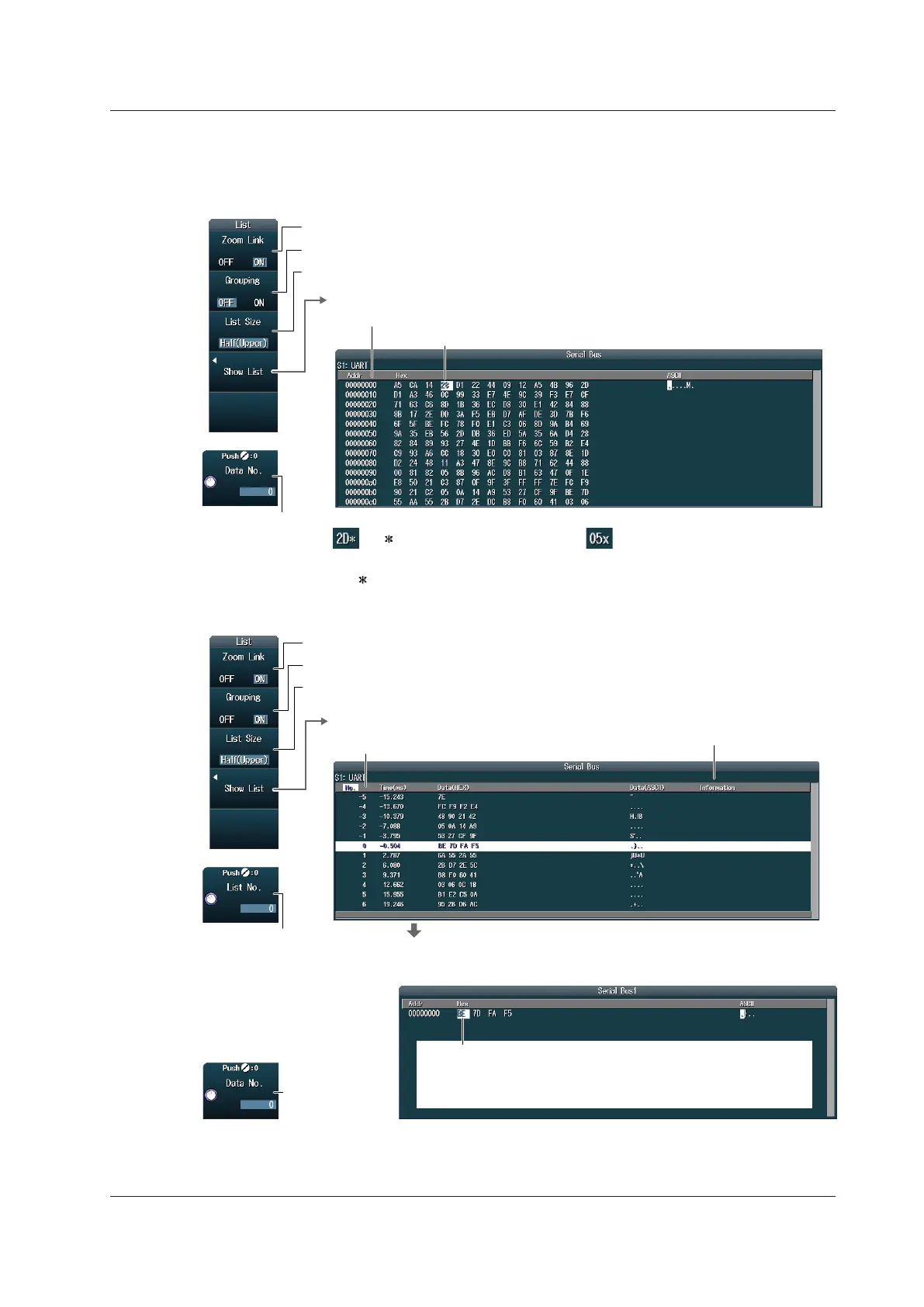

Setting the List Display (List)
Press the List soft key on the SEARCH UART menu to display the following menu.
When Grouping Is Set to OFF
Set the data
number.
Lists the analysis results
Data from the leftmost side of the waveform display
The data that corresponds to the selected data number is highlighted.
Set the list size and the display position (Full Screen, Half(Upper), Half(Lower)).
Turns zoom linking on or off
Set the grouping (set this to OFF).
When A Framing Error Is Detected When a Parity Error Is Detected
When Both a Framing Error and a Parity Error Are Detected
The used for marking framing errors is appended to the data number.
An is appended to the data number.
An x is appended to the data number.
When Grouping Is Set to ON
Set the analysis
number.
Set the data
number.
Set the list size and the display position (Full Screen, Half(Upper), Half(Lower)).
Lists the analysis results
Analysis number
If multiple errors are detected in one piece of data, the
DLM4000 only displays the framing error indication.
Framing Error or Parity Error
Turns zoom linking on or off
When You Press SET
Set the grouping (set this to ON).
• The data that corresponds to the selected data number is highlighted.
• In the list that appears when you press SET, the same marks are
appended to the data numbers when an error is detected as when
grouping is off.
This is the detailed list of analysis results that is displayed when
you press SET.
All data for the specified analysis number is displayed.
Data before the trigger position (on the left side of the waveform display) is assigned analysis
numbers in descending order (-1, -2, and so on). Data after the trigger position (on the right side of the
waveform display) is assigned analysis numbers in ascending order (0, 1, 2, and so on).
12.8 Analyzing and Searching UART Signals (Option)
