Setting the State and Trigger Conditions (Pattern Setup)
2.

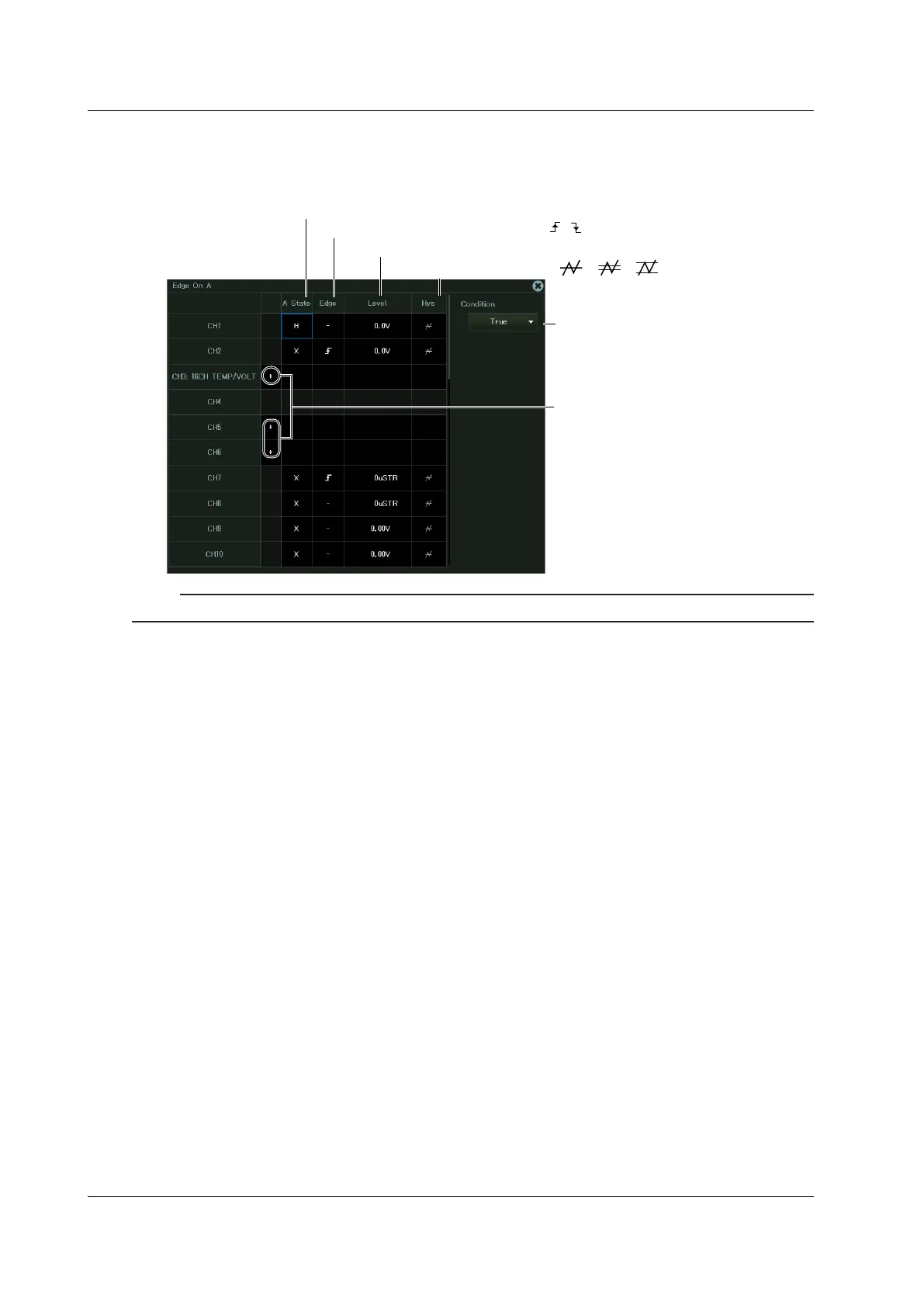

Tap Pattern Setup, or press the soft key. The following menu appears.
On a module with logic inputs or sub
channels, expand the menu, and set
each bit or sub channel.
Set the state condition (H, L, or X (do not use as a trigger source)).
Set the trigger level.
Set the hysteresis ( , , ).
Set the state condition
achievement conditions
(True, False)
Set the edge detection condition ( , , –).
Note
If linear scaling is applied to the trigger source, set the trigger level using a linearly scaled value.
4.10 Triggering on an Edge On A Trigger (Enhanced)
