19.7 Loading Waveform Data
This section explains the following settings for loading waveform data:
Items Common to Scope Mode and Recorder Mode
• Displaying file information
• Loading into channels
► “Loading Waveform Data (Waveform)” in the Features Guide
FILE Waveform (Load) Menu
1.
On the waveform screen’s MENU, tap FILE > FILE, or press FILE.
2.

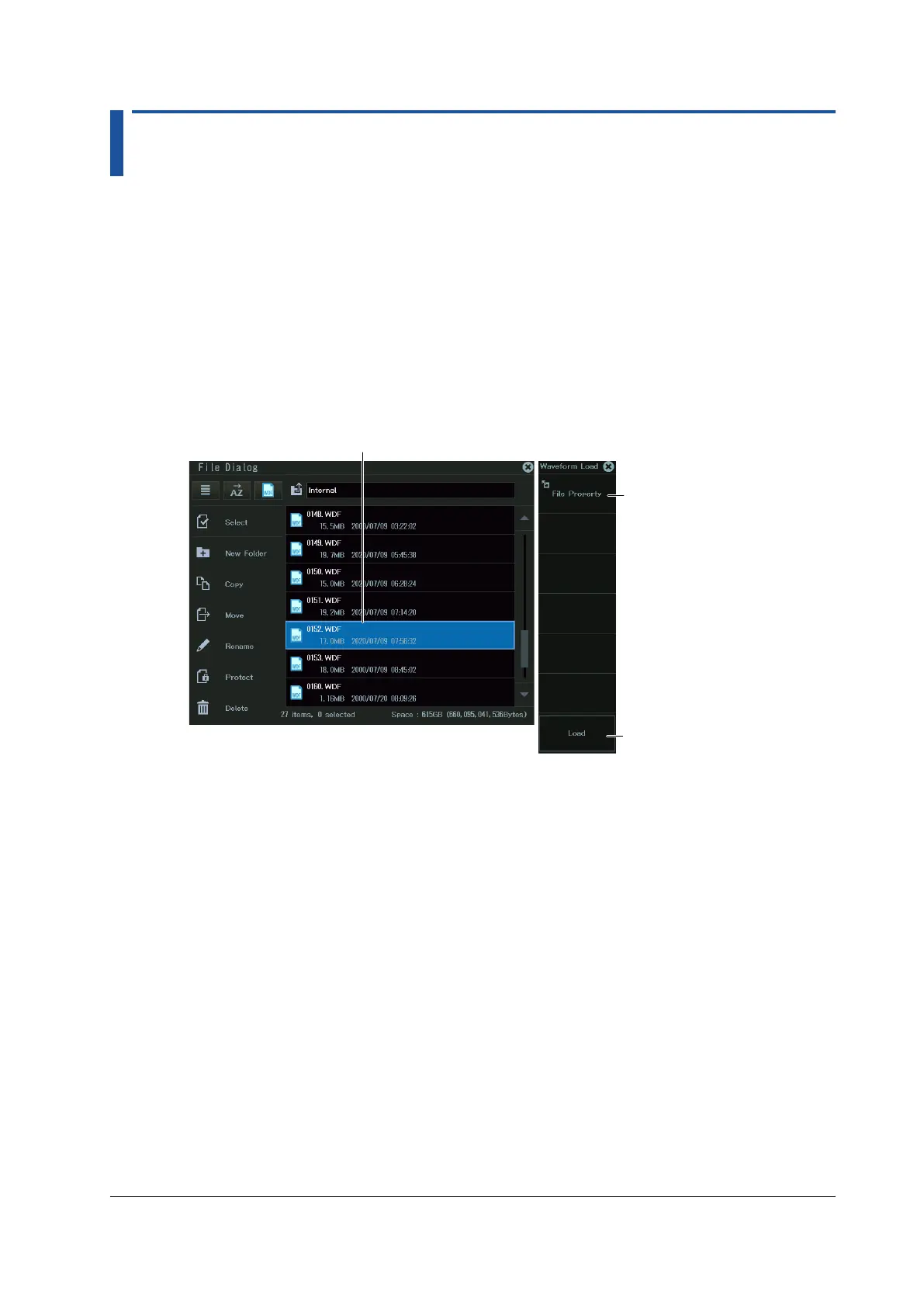

Tap Waveform under Load, or press the soft key. The following screen appears.
Select the .WDF file that you want to load.
Displays file information
Starts loading
Selecting a File
Select the file to load from the file list. For details on file operations, see section 19.10.
Loading Waveform Data (Load)
• The selected waveform data file is loaded together with the setup file. The extension is .WDF.
Loaded data is cleared when you start measurement.
• If the module configuration when the waveform data is saved and that when the data is loaded
are different, only the waveform data of modules that match is loaded. When loading is complete,
a message indicating the channel numbers that were not loaded is displayed.
