11.4 Performing Statistical Processing on History
Waveforms (Scope mode)
This section explains the following settings for performing statistical processing on history
waveforms:
Scope Mode
• Turning history waveform statistics on
• Displaying results
► “Statistical Processing of History Waveforms (History)” in the Features Guide
MEASURE Statistics Menu
1.
On the waveform screen’s MENU, tap ANALYSIS > MEASURE, or press Measure.
2.
Tap Statistics, or press the soft key. The following screen appears.

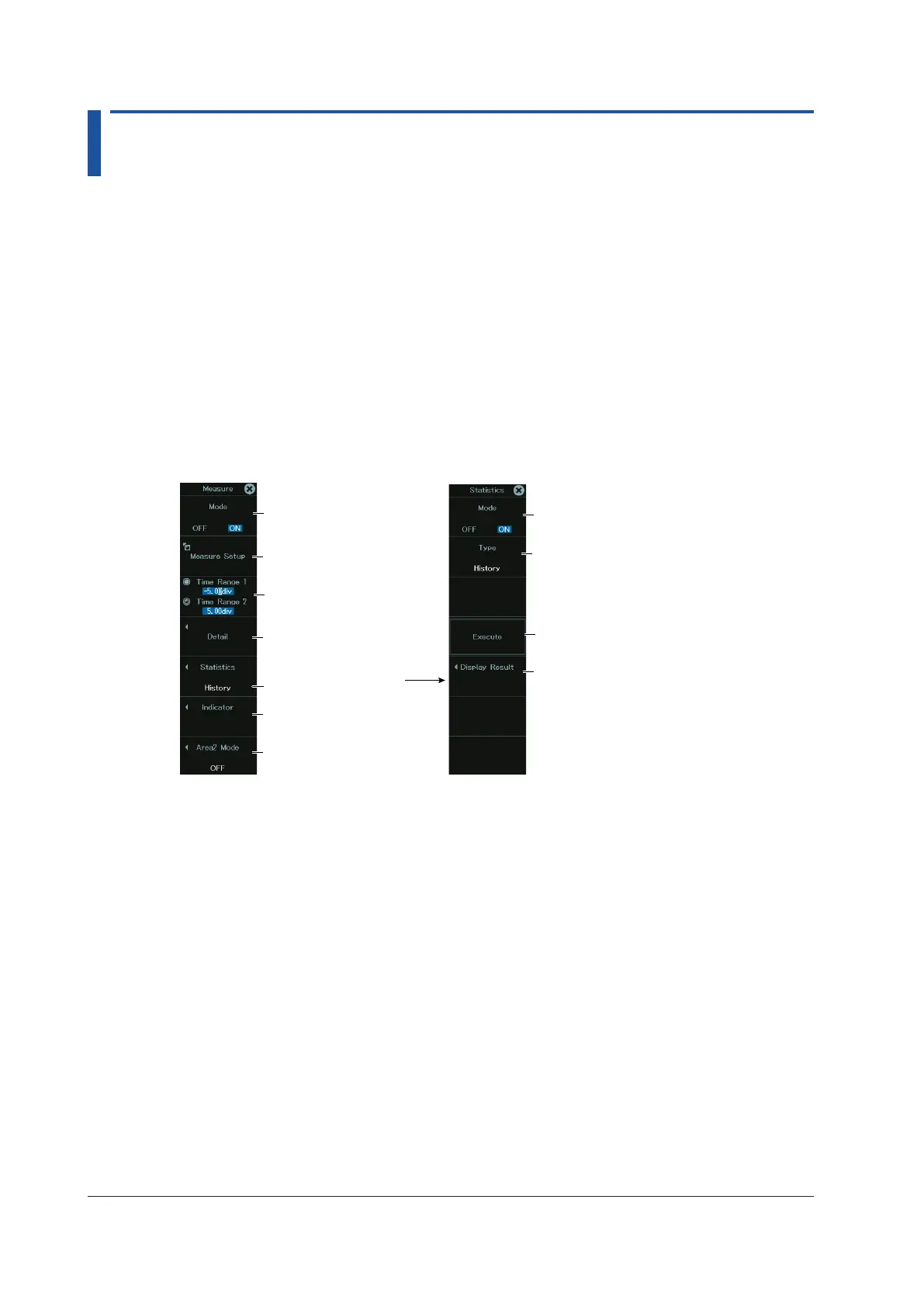

Set the measurement
time period.
► sec. 11.1
Turns automated
measurement on or off
► sec. 11.1
Set the source waveform
and measurement items.
► sec. 11.1
Detail setup
► sec. 11.1
Set the indicator.
► sec. 11.1
Configure Area2.
► sec. 11.1
Set Mode to ON.
Set Type to History.
Executes measurement
Displays the measured
results ► sec. 11.3
Measure menu
Statistics menu
Configure statistical
processing.
