19.9 Loading Other Types of Data
This section explains the following settings for loading snapshot waveforms or symbol data:
Applicable in Scope Mode
• Displaying file information
• Data to load
• Loading data
Applicable in Recorder Mode
• Displaying symbol file information
• Load destination
• Loading files
► “Loading Other Types of Data (Others),” and
“Loading Symbols (Symbol)” in the Features Guide
Scope Mode
FILE Others (Load) Menu
1.
On the waveform screen’s MENU, tap FILE > FILE, or press FILE.
2.

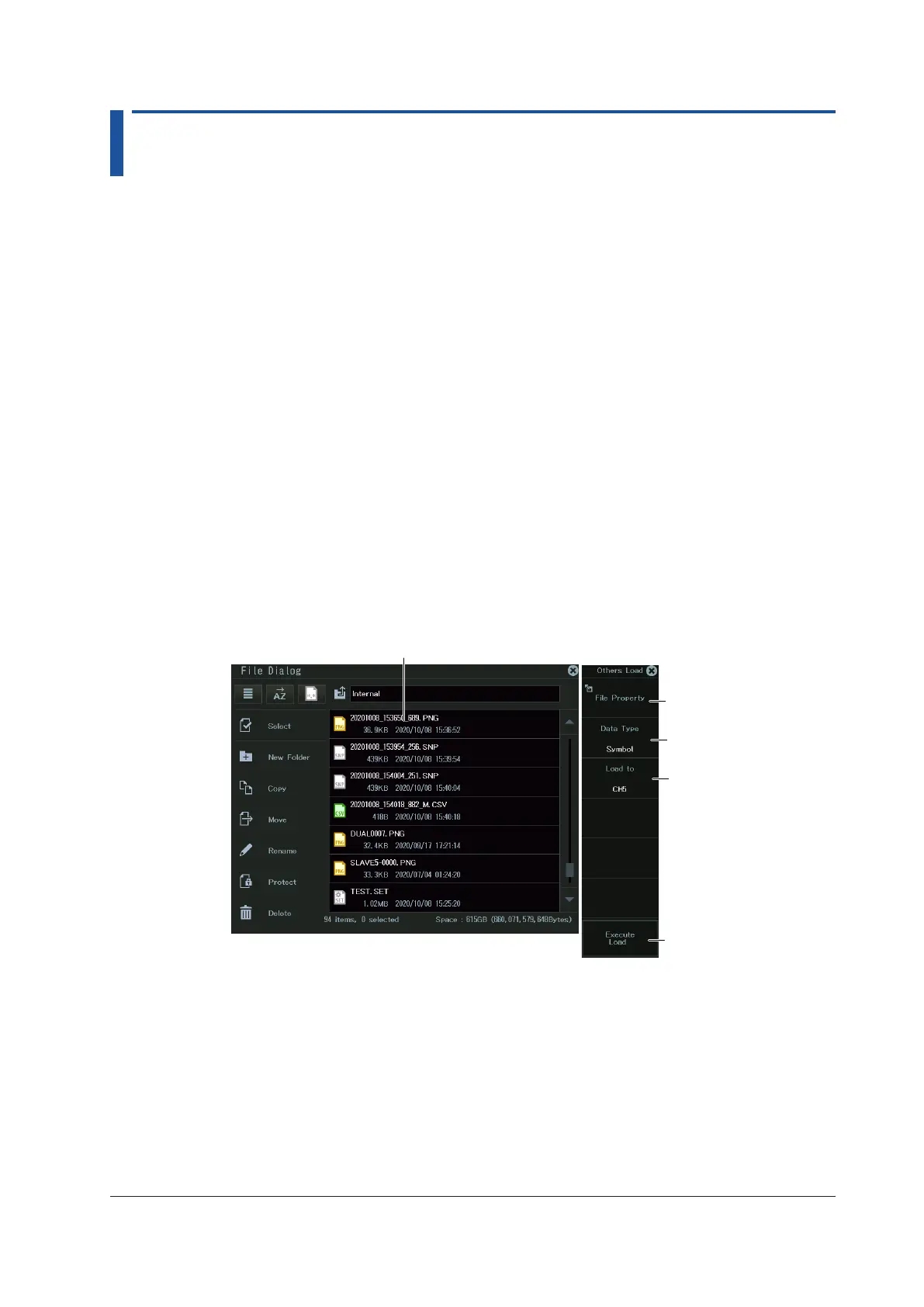

Tap Others under Load, or press the soft key. The following screen appears.
Select the file to load.
Displays file
information
Starts loading
Set the data to load
(Snap, Symbol).
* Only when the loaded data is Symbol
Set the load
destination
(CH13 to CH16).*
Setting the Data Type to Load (Data Type)
Snap: A saved snapshot waveform is loaded. The extension is .SNP. This is valid in Scope
mode.
Symbol: A CAN or CAN FD or LIN data definition file is loaded. The extension is .SBL. This
is valid when a CAN bus monitor, CAN & LIN bus monitor, CAN/CAN FD monitor, or
SENT monitor is installed.
