YOKOGAWA ScopeCorder DL950 User Manual

4-5
IM DL950-02EN
4.3 Triggering on an Edge Trigger (Simple) in
Scope Mode
This section explains the settings for triggering on the edges of an analog-signal trigger source in
Scope mode: To use a logic signal for the trigger source, see section 4.7.
Applicable in Scope Mode
• Trigger source
• Trigger slope
• Trigger level
• Trigger hysteresis
► “Simple Trigger (Simple),” “Trigger Source (Source),”
“Trigger Slope (Slope),” “Trigger Level (Level),” and
“Trigger Hysteresis (Hysteresis)” in the Features Guide

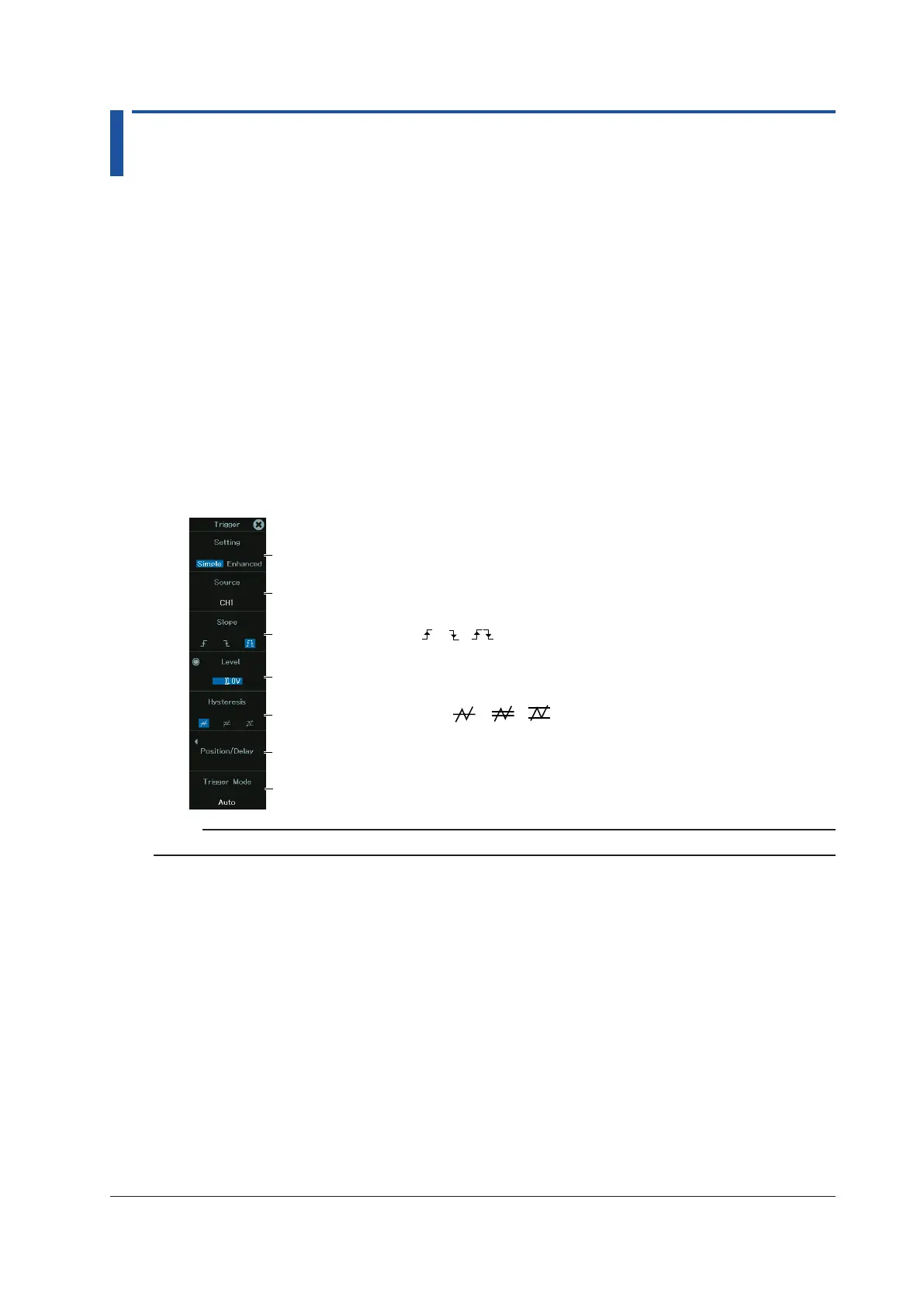

Trigger Menu
1.
On the waveform screen’s MENU, tap TRIGGER > MENU, or press TRIG.MENU. A trigger
menu appears.
Set the trigger position, trigger delay, and hold-off
► sec. 4.2
Select Simple.
See “Setting the Trigger Source.”
Set the trigger slope ( , , ).
Set the trigger level.
Set the trigger hysteresis ( , , ).
Set the trigger mode. ► sec. 4.1
Note
If linear scaling is applied to the trigger source, set the trigger level using a linearly scaled value.
