4.7 Triggering on a Logic Trigger (Simple)
This section explains the following settings for triggering on the edges of a logic-signal trigger
source:
Applicable in Scope Mode
• Trigger source
• Source bit
• Trigger slope
► “Simple Trigger (Simple)” and “Trigger Source (Source)” in the Features Guide

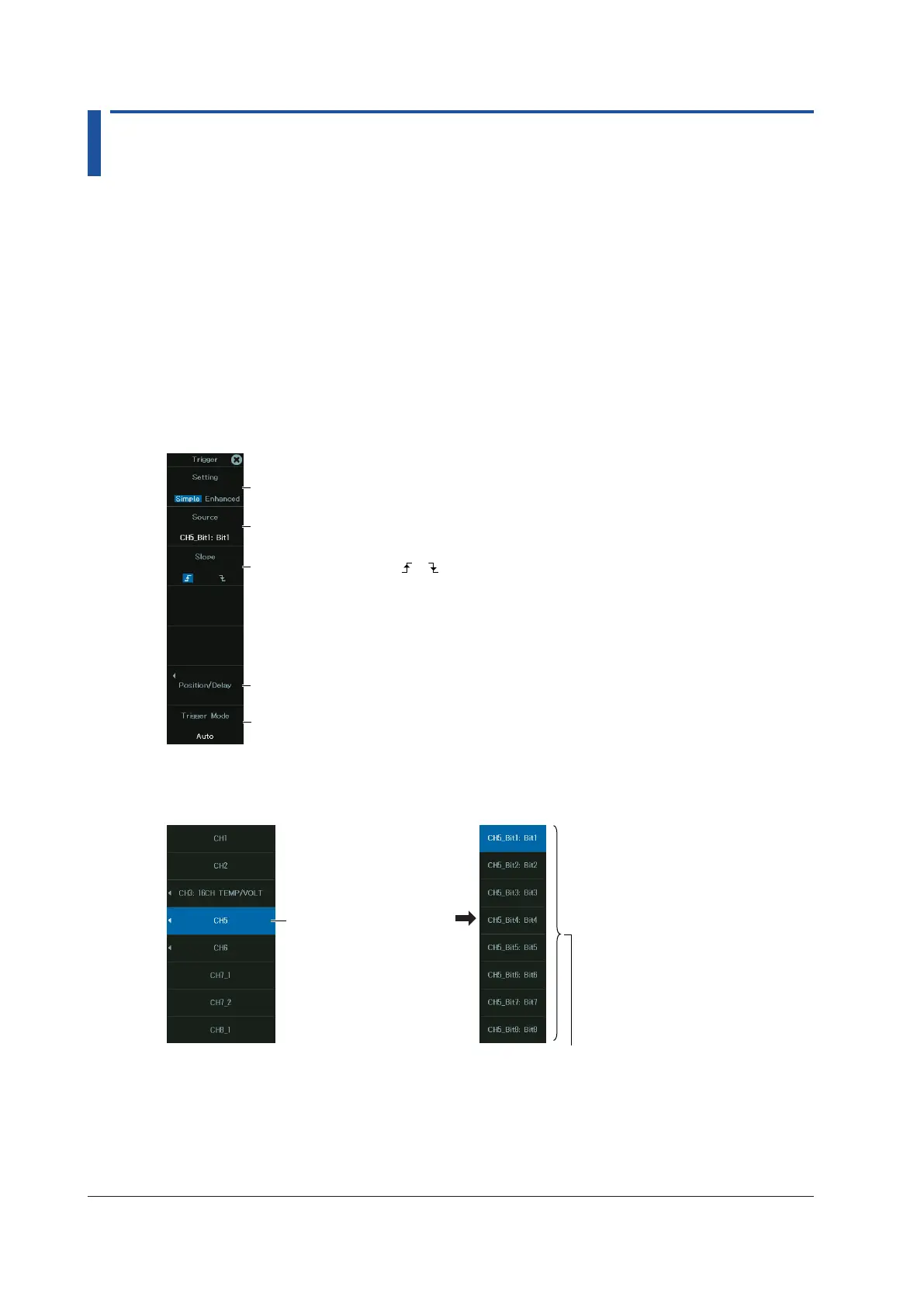

Trigger Menu
1.
On the waveform screen’s MENU, tap TRIGGER > MENU, or press TRIG.MENU. A trigger
menu appears.
Set the trigger position, trigger delay, and hold-off
► sec. 4.2
Select Simple.
See “Setting the Trigger Source.”
Set the trigger slope ( , ).
Set the trigger mode. ► sec. 4.1
Setting the Trigger Source (Source)
2.
Press the Source soft key. The following menu appears.
Set the source channel
(logic input module)
Set the source bit.
