4-28
IM DL950-02EN
4.17 Triggering on an OR or AND Trigger in
Recorder Mode
This section explains the following settings for triggering on an OR or AND trigger in Recorder
mode:
Applicable in Recorder Mode
• Trigger source
• Edge detection condition (OR trigger)
• Achievement condition (AND trigger)
• Trigger conditions
• Pre-trigger
► “Pre-Trigger (Pre Trigger),” “OR Trigger (Enhanced),” and
“AND Trigger (Enhanced)” in the Features Guide

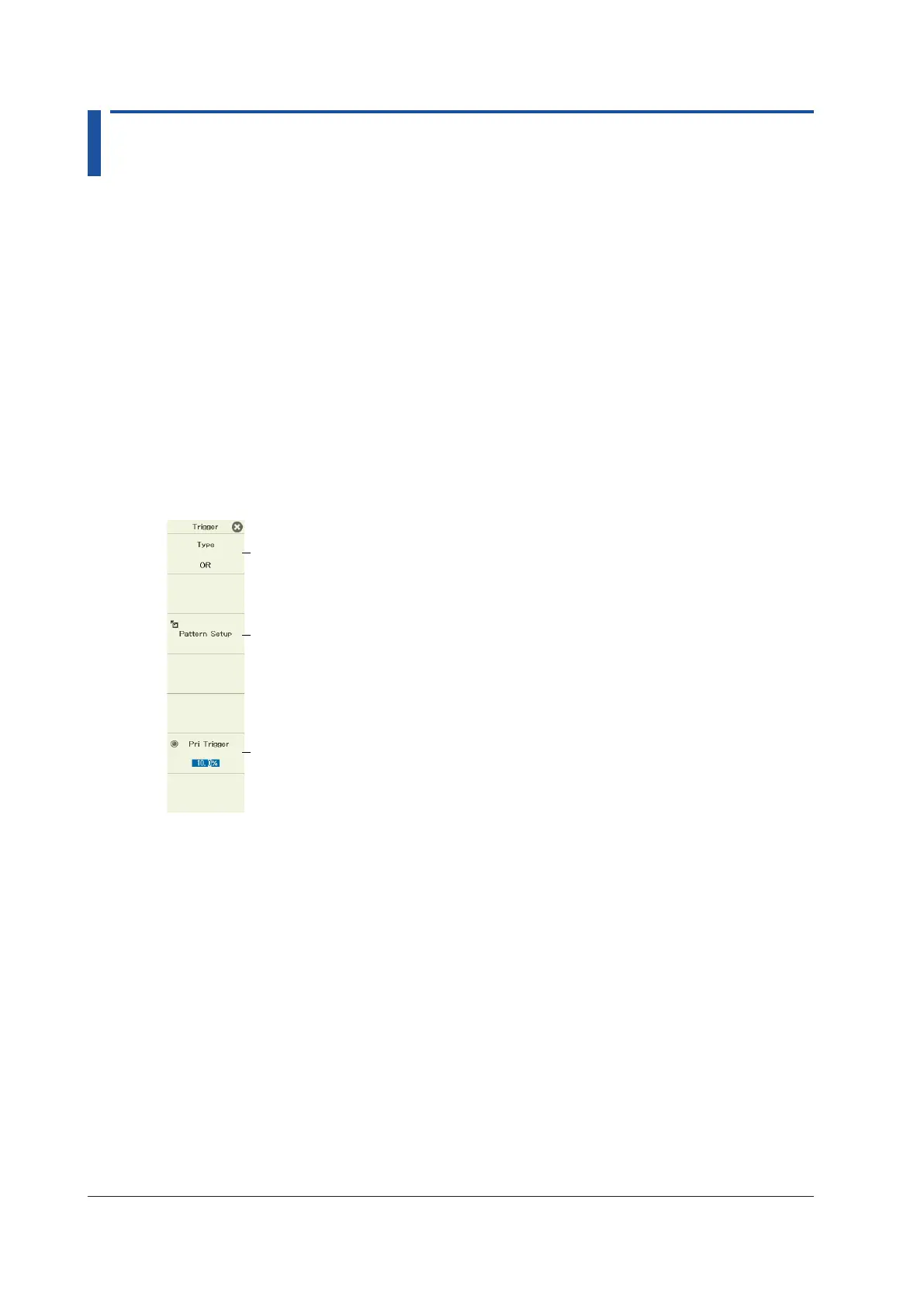

Trigger Menu
1.
On the waveform screen’s MENU, tap TRIGGER > MENU, or press TRIG.MENU. A trigger
menu appears.
Set the trigger type to OR or AND.
See “Setting the State and
Trigger Conditions.”
Set the pre-trigger.
To Next Page
