YOKOGAWA ScopeCorder DL950 User Manual

10-9
IM DL950-02EN
10.5 Measuring with Horizontal and Vertical Cursors
(H & V)
This section explains the following settings for measuring T-Y waveforms with horizontal and
vertical cursors:
For information on cursor measurement on X-Y waveforms, see chapter 6.3.
Items Common to Scope Mode and Recorder Mode
• Turning the cursors on and off
• Cursor type
• Source waveform
• Vertical cursor position
• Horizontal cursor position
• Measurement items
• Measurement source window
► “Horizontal and Vertical Cursors (H & V)” in the Features Guide

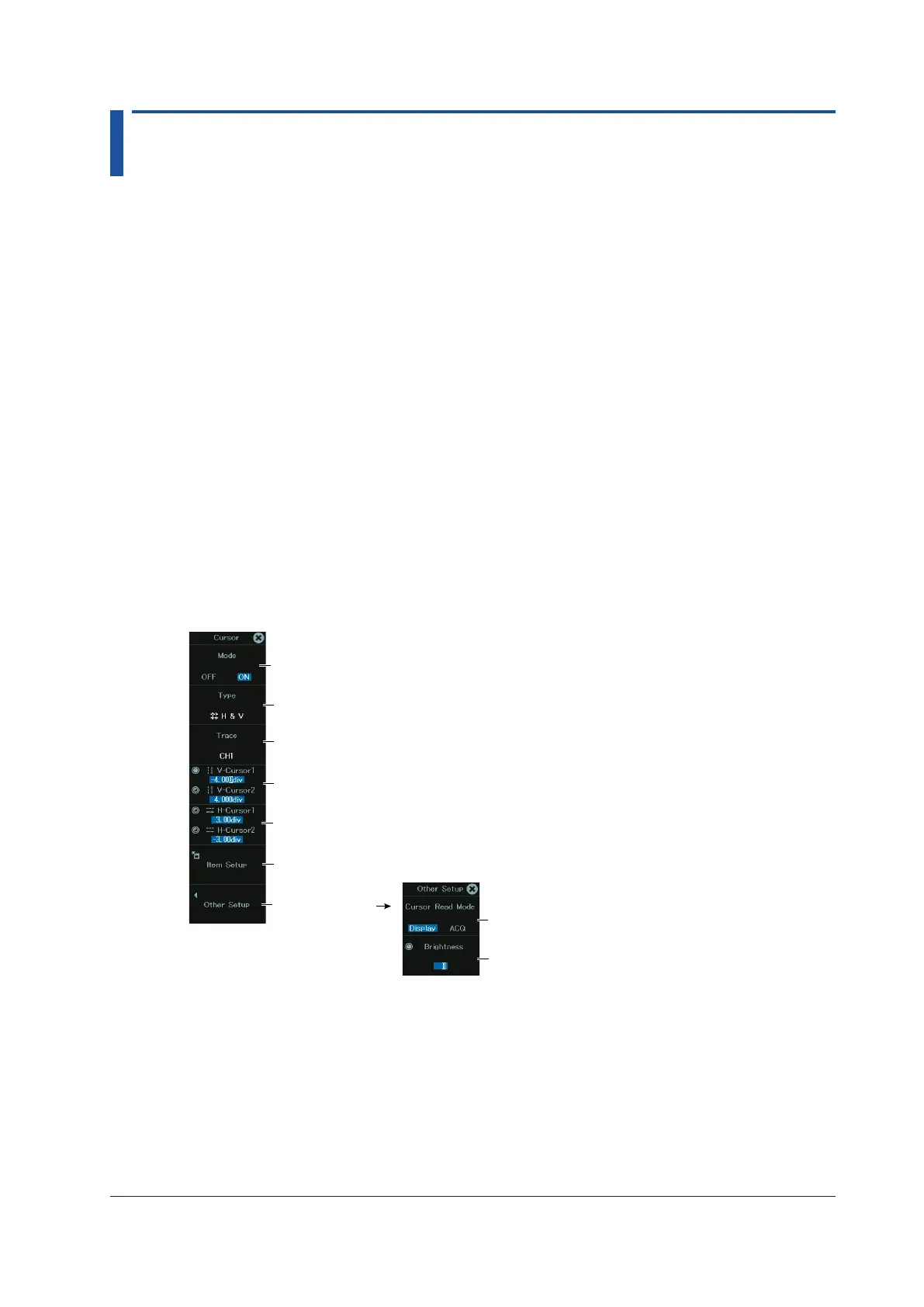

CURSOR H & V menu
1.
On the waveform screen’s MENU, tap ANALYSIS > CURSOR, or press CURSOR.
2.
Tap Mode, or press the soft key to select ON.
3.
Tap Type, or press the soft key to select H & V.
Set the cursor type to H&V.
Set the measurement source waveform (OFF, CH1 to CH16,
16CH TEMP/VOLT, CAN, CAN FD, LIN, SENT, Math1 to
Math8).
Set the vertical cursor positions.
See “Setting Measurement Items.”
Turns cursor measurement on or off
Set the cursor display intensity.
See “Cursor Value Read Mode.”
Set the horizontal cursor positions.
Other settings
