13.1 Setting Expressions and Computation Ranges
This section explains the following settings for setting expressions:
Items Common to Scope Mode and Recorder Mode
• Math waveform to edit
• Turning computation on and off
• Setting expressions (operator, function, computation source waveform, unit, label, settings for
specific operators and functions)
• Setting the computation range
► “Math” in the Features Guide
Math Menu

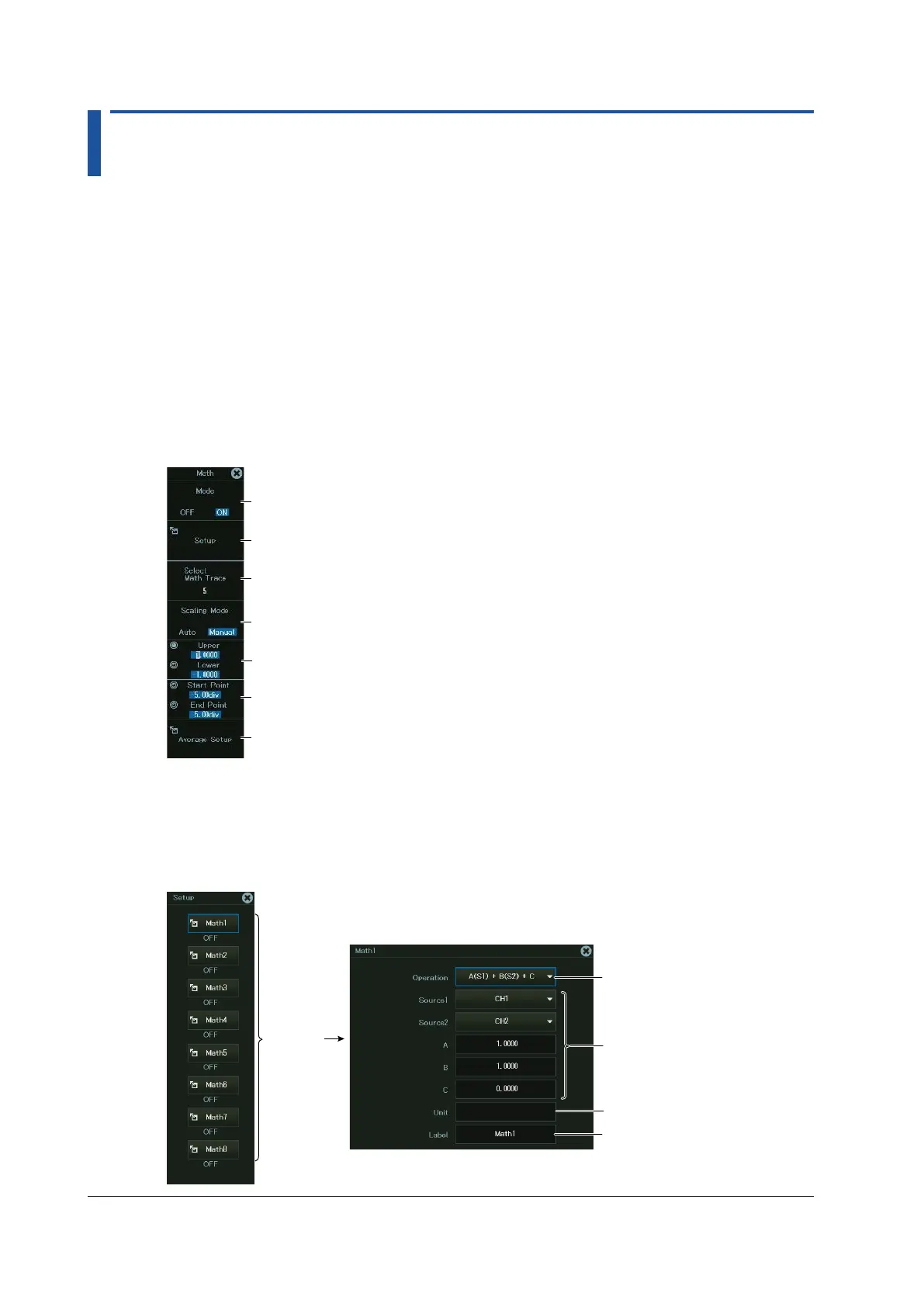

1.
On the waveform screen’s MENU, tap ANALYSIS > MATH, or press SHIFT+FFT (MATH). The
Math menu appears.
Set the math mode to ON.
See “Setting the Equation.”
Set the math waveform to set scaling. ► sec. 13.2
Set the scaling mode. ► sec. 13.2
Set averaging. ► sec. 13.3
(For user-defined math function, /G02 option)
Set the upper and lower limits. ► sec. 13.2
Set the math range.
Setting the Expression (Setup)
2.
Tap Setup, or press the soft key.
3.
Tap the math number that you want to assign an expression to, or use a jog dial and arrow
keys to select the math number, and press SET. The following screen appears.
Set operators and
functions.
Setup items
(Varies depending
on expression)
Set the label.
Set the unit.
Math
number
