2.12 Displaying the All Channel Setup Menu
This section explains the following settings for configuring all channels:
Items Common to Scope Mode and Recorder Mode
Turning waveform input or and off
Input settings
Linear scaling
Real time math channels (/G03, /G05 option)
Copying channels
Strain balancing (strain module) and DC offset cancellation
► “Displaying the Menu for Configuring All Channels (ALL CH)” in the Features Guide

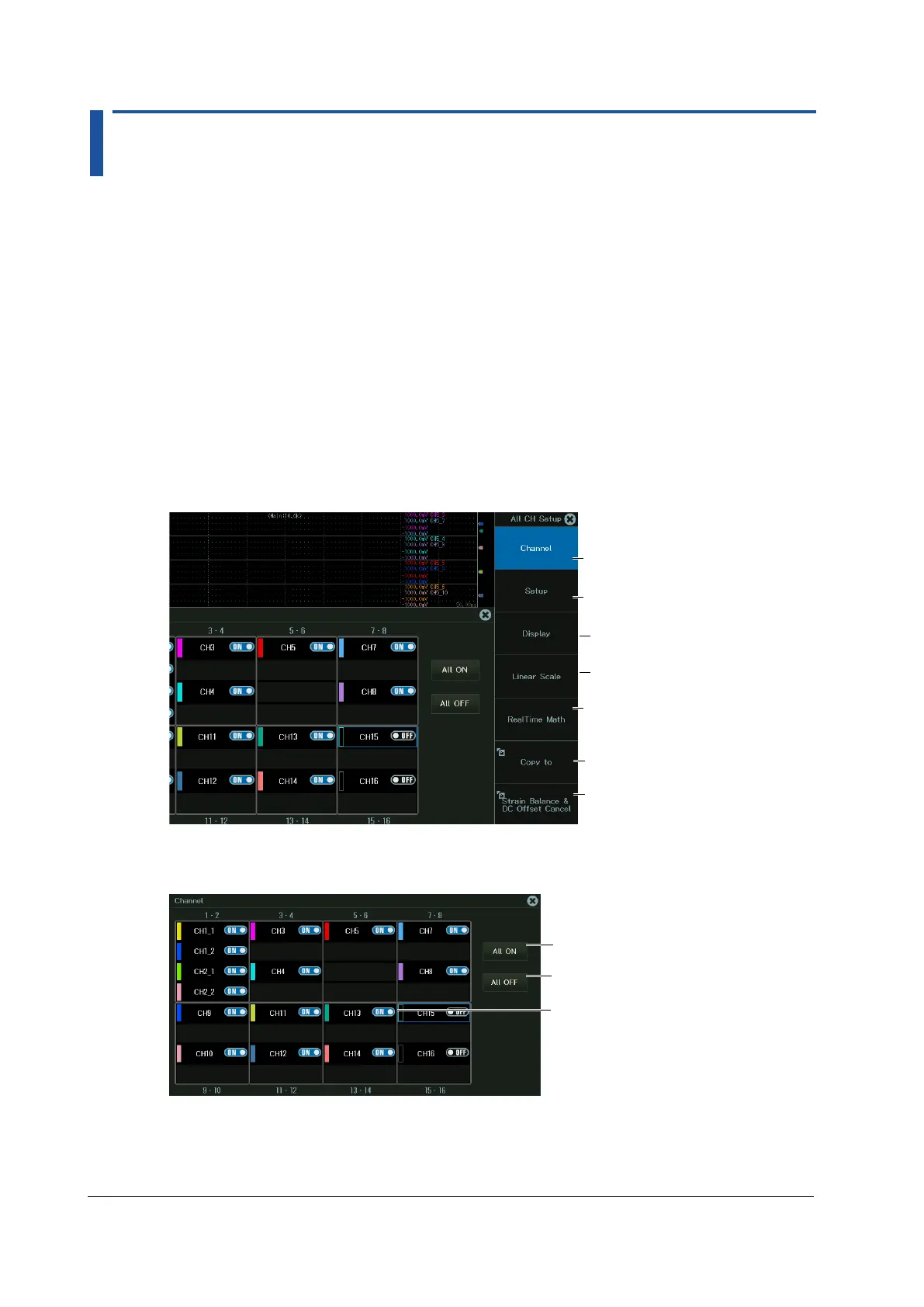

All channel setup menu
1.
On the waveform screen’s MENU, tap VERTICAL > All CH, or press ALL CH. An all channel
setup menu appears.
See “Setting the Linear
Scaling.”
See “Input Setup.”
See “Strain Balance and
DC Offset Cancellation.”
See “Copying Channels.”
See “Turning Waveform Input
On and Off”
See “Configuring the Display.”
See “Configuring Real Time
Math Settings” (displayed with
a /G03 or /G05 option)
Turning Waveform Input On and OFF
2.
Tap Channel, or press the soft key.
Turns each channel or sub
channel on or off
Turns all channels on
Turns all channels off
