Setting the Scale and Display Groups
3.

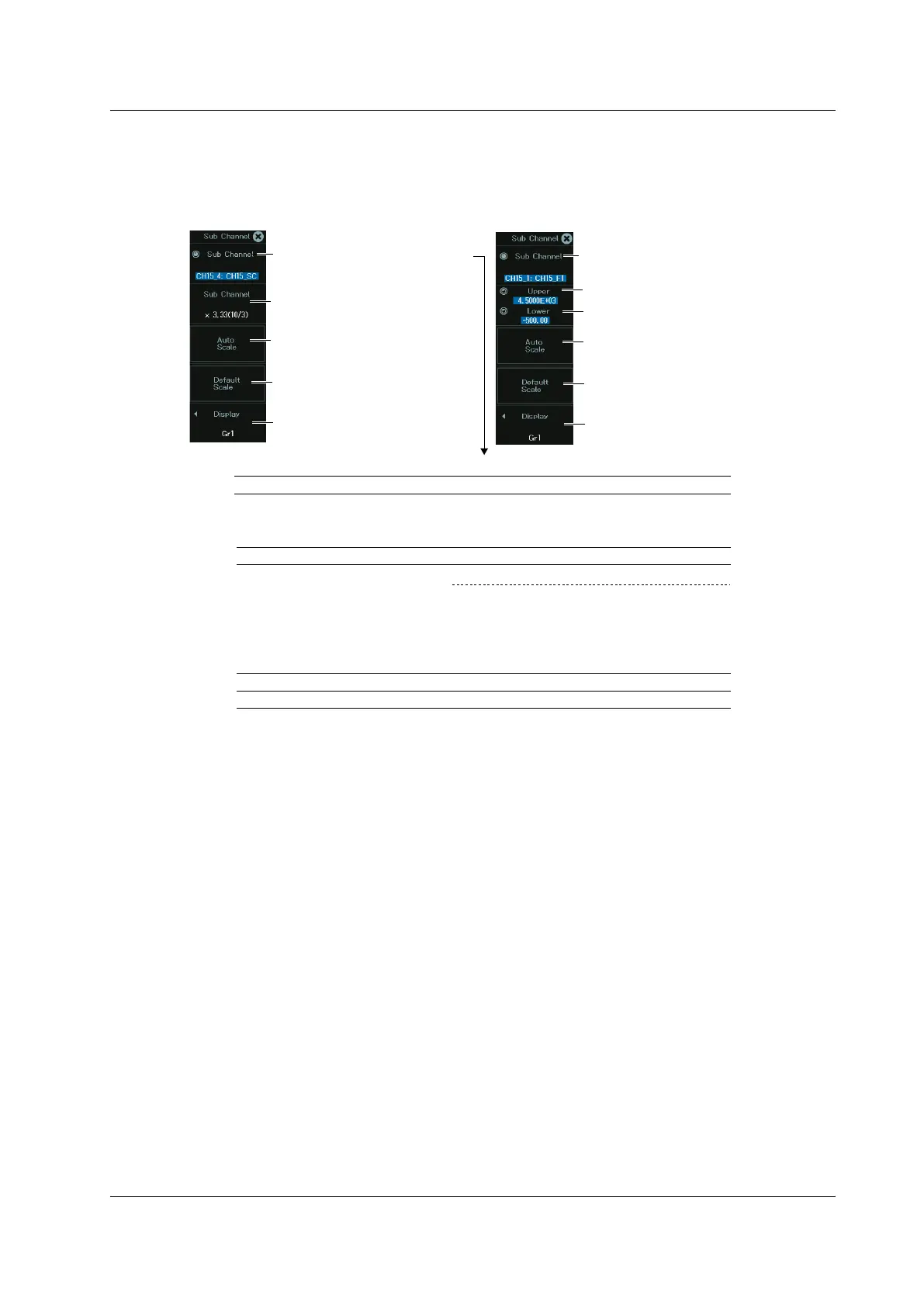

Tap Sub Channel, or press the soft key. The following screen appears.
Set the upper display range limit.
Executes auto scale
Executes default scale
Set the lower display range limit.
FastCH
S&C (Stauts & Communication)
SlowCH
Error Trigger
Error Count
1: FastCH
2: FastCH
3: FastCH
4: S&C
5: SlowCH
6: SlowCH
7: SlowCH
8: SlowCH
9: SlowCH
10: Error Trigger
11: Error Count
Sub Channel Data Type
When Fast Channel Multiplexing is on*
5: SlowCH/FastCH
6: SlowCH/FastCH
7: SlowCH/FastCH
8: SlowCH/FastCH
9: SlowCH/FastCH
SlowCH or FastCH
* For details on Fast Channel Multiplexing, see “Setting the SENT Format (SENT Format
Setup).”
The types of data acquired in sub channels are as follows.
Select the sub channel that
you want to set.
When the sub channel is not 4:S&C
(SC) or 10:ErrorTrig (ET)
When the sub channel is 4:S&C
(SC) or 10:ErrorTrig (ET)
Executes auto scale
Executes default scale
Sub channel magnification
Select the sub channel that
you want to set.
Display settings
► sec. 2.1
Display settings
► sec. 2.1
2.11 Configuring the Monitoring of SENT Signals (/VCE option)
