YOKOGAWA ScopeCorder DL950 User Manual

2-34
IM DL950-02EN
2.8 Configuring Logic Signal Measurements
This section explains the following settings for logic measurements:
Items Common to Scope Mode and Recorder Mode
• Turning waveform input or and off
• Display label
• Logic settings
• Deskewing
• Sample Rate and Sample Interval
• Set the zoom percentage
• Display setup (display group)
• Vertical position
► “Logic Measurement” in the Features Guide

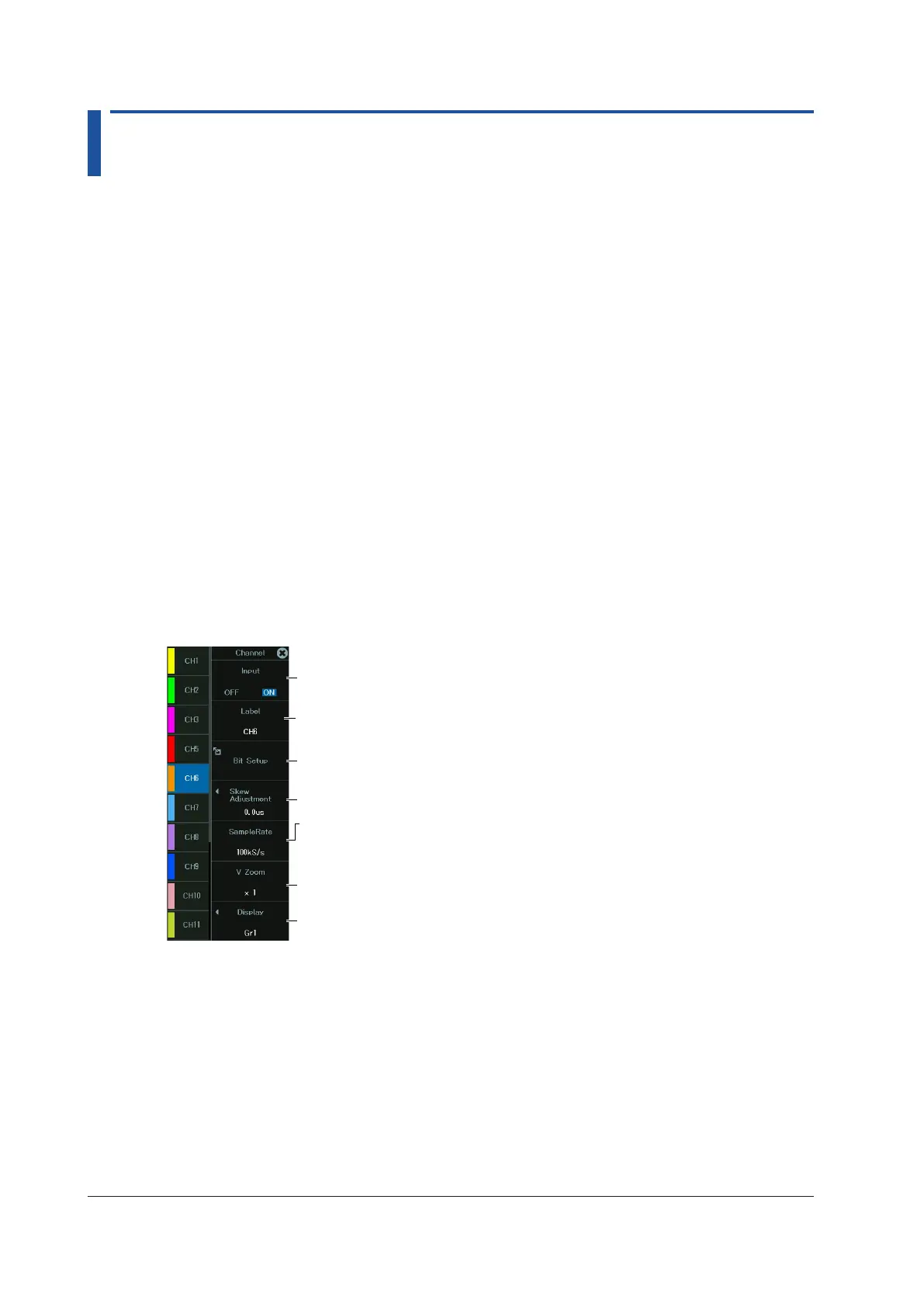

Channel Setup Menu
1.
On the waveform screen’s MENU, tap VERTICAL > CH, or press CH. A channel setup menu
appears.
(You can also tap the channel information display area at the top of the screen to display the
channel setup menu.)
2.
Tap a channel you want to configure, or select it using the jog dial or up and down arrow keys.
Deskewing
See “Setting Logic Bits.”
Turns the waveform input
on or off
Set the display label.
Display settings
► sec. 2.1
Set the sample rate (Scope mode).
Set the sample interval (Recorder mode).
► sec. 2.1
Set the display range.
► sec. 2.1
