Setting Logic Bits (Logic Setup)
3.

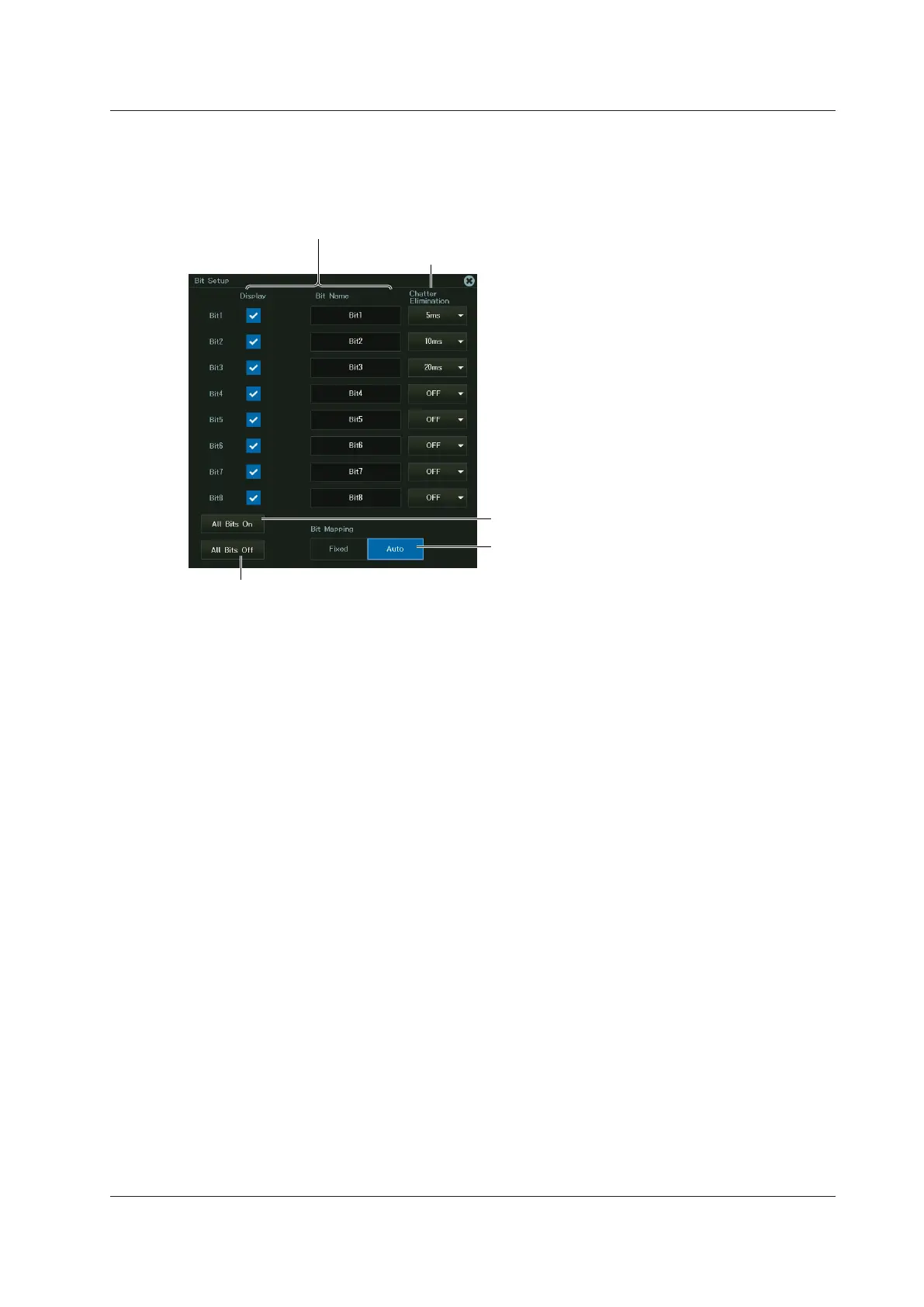

Tap Logic Setup, or press the soft key. The following screen appears.
Use the check boxes to turn the display on or off for each bit
and press the buttons to set the label for each bit.
Set the chatter elimination.
Turns the display on or off
for all bits
Turns the display on for all bits
Bit mapping
Fixed (Fixed): The display position is fixed
regardless of the bit settings.
Auto (Auto): The display position is set
automatically according to the
bit settings.
Setting the Vertical Scale (SCALE knob)
► section 2.1
Setting the Waveform Vertical and Horizontal Positions (Sliding
the waveform screen)
► section 2.1
