5-2
IM DL950-02EN
5.1 Setting Display Groups and Display Format
This section explains the following settings for displaying waveforms:
Items Common to Scope Mode and Recorder Mode
• Display group, display format (number of divided screens)
► “Group Selection (Select Group)” and
“Display Format (Format)”in the Features Guide

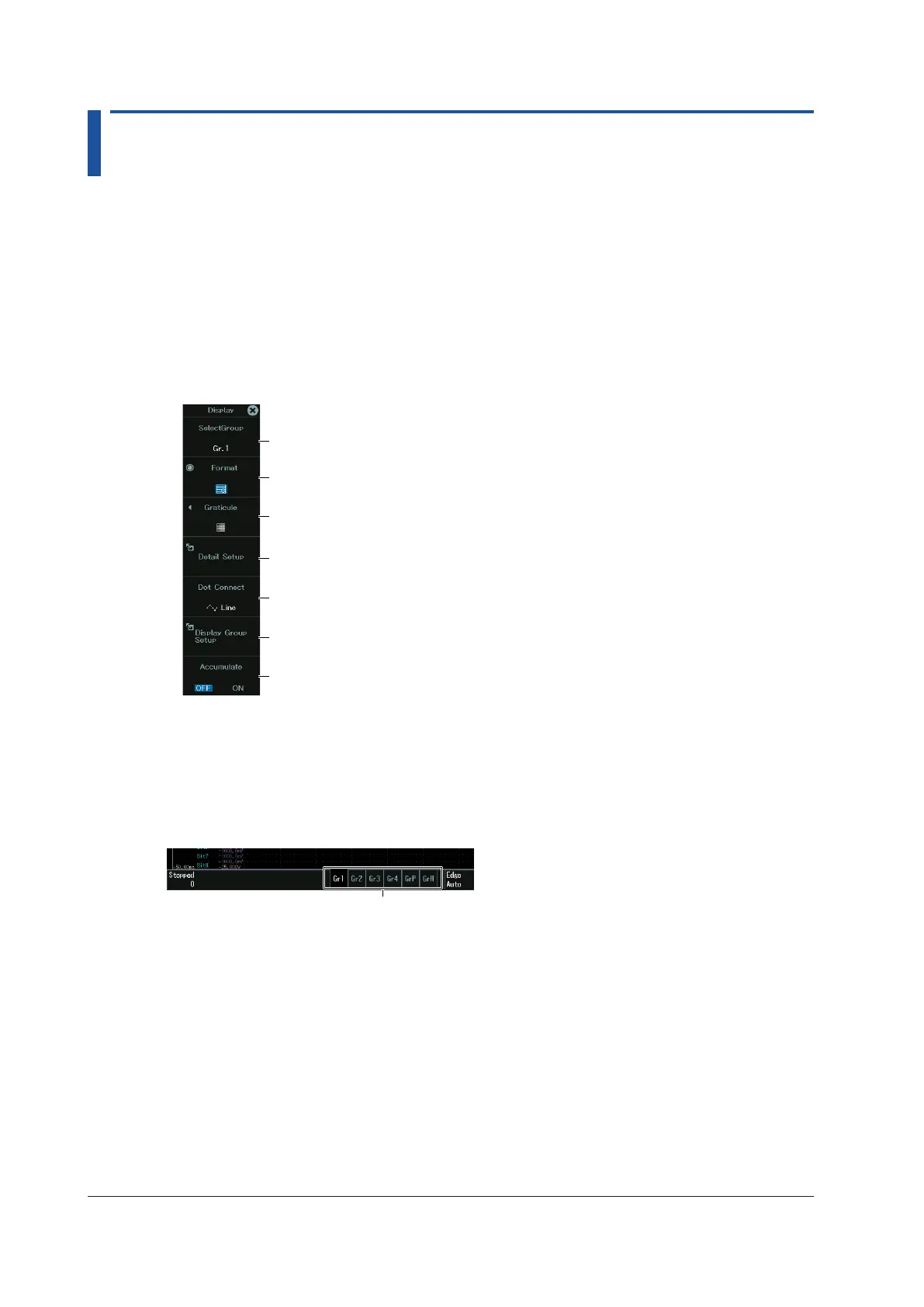

Display Menu
1.
On the waveform screen’s MENU tap DISPLAY > DISPLAY, or press DISPLAY. The Display
menu appears.
Set the display format (Group 1,
2
1 (no windows), 2,
3, 4, 5, 6, 8, 12, 16).
1 Selectable on models with the power math option (/G5)
2 The Group 1 option appears when display groups 2 to 4, P, or H is selected.
Select the display group you want to edit
(Gr.1 to Gr.4, P,
1
H
1
).
Set the grid. ► sec. 5.3
Detail setup ► sec. 5.4
Set the waveform arrangement, color, and grouping.
► sec. 5.2
Set the interpolation method. ► sec. 5.3
Turns accumulation on or off (Scope mode only)
► sec. 5.5
Changing the Display Group Shown on the Screen
2.
You can also tap Gr1 to Gr4, GrP (power analysis), or GrH (harmonic analysis) at the bottom
of the screen to change the display group.
Tap the display group to show on the screen.
(GrP and GrH are available when power analysis or
harmonic analysis is not set to OFF.)
To Next Page
