21.1 Setting Time Synchronization Mode
This section explains the following setting for synchronizing instruments on a network.
Items Common to Scope Mode and Recorder Mode
• Time synchronization mode
• Configuring IRIG settings
• Configuring IEEE1588 settings
► “Time Synchronization” in the Features Guide
Utility System Config Time Sync Menu
1.
On the waveform screen’s MENU, tap OTHERS > UTILITY, or press UTILITY.
2.
Tap System Config, or press the soft key.
3.
Tap Time Sync, or press the soft key. The following screen appears.

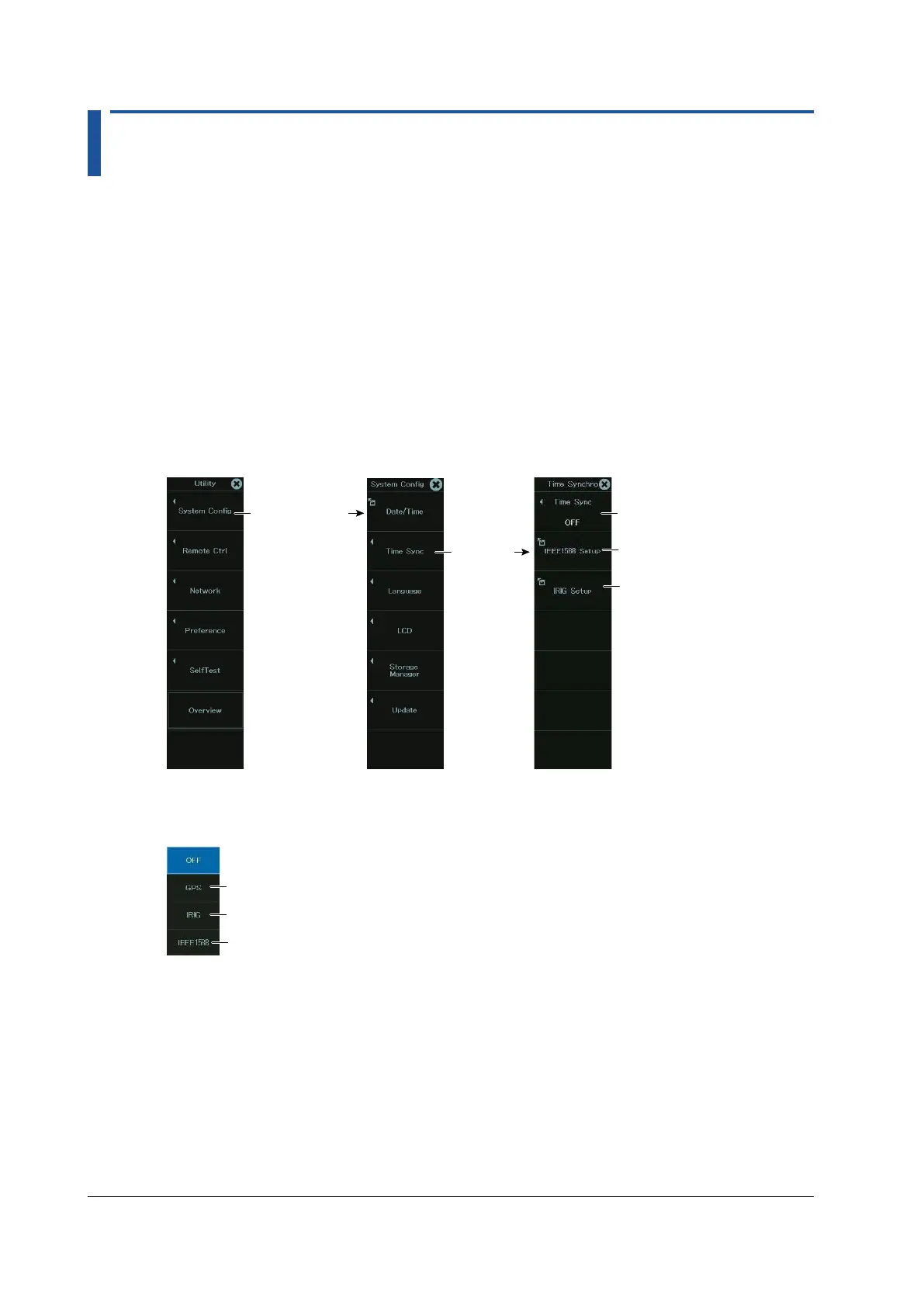

Select System
Config.
Select
Time Sync.
See “Setting the
Synchronization Mode.”
See “Configuring
IEEE1588 Settings.”
See “Configuring
IRIG Settings.”
Setting the Synchronization Mode (Time Sync)
4.
Tap Time Sync, or press the soft key. The following screen appears.
GPS (when the IRIG, GPS (/C35) option is installed)
IRIG (when the IRIG, GPS (/C35) option is installed)
IEEE1588
