YOKOGAWA ScopeCorder DL950 User Manual

2-46
IM DL950-02EN
2.11 Configuring the Monitoring of SENT Signals
(/VCE option)
This section explains the following settings for monitoring SENT signals.
Items Common to Scope Mode and Recorder Mode
• Turning waveform input or and off
• SENT frame reading settings (all sub channel settings, factor and offset settings of all sub
channels, SENT format, error channel, input settings)
• Scale
• Display group
• Sample rate and sample interval settings
► “SENT Signal Monitoring (/VCE option)” in the Features Guide

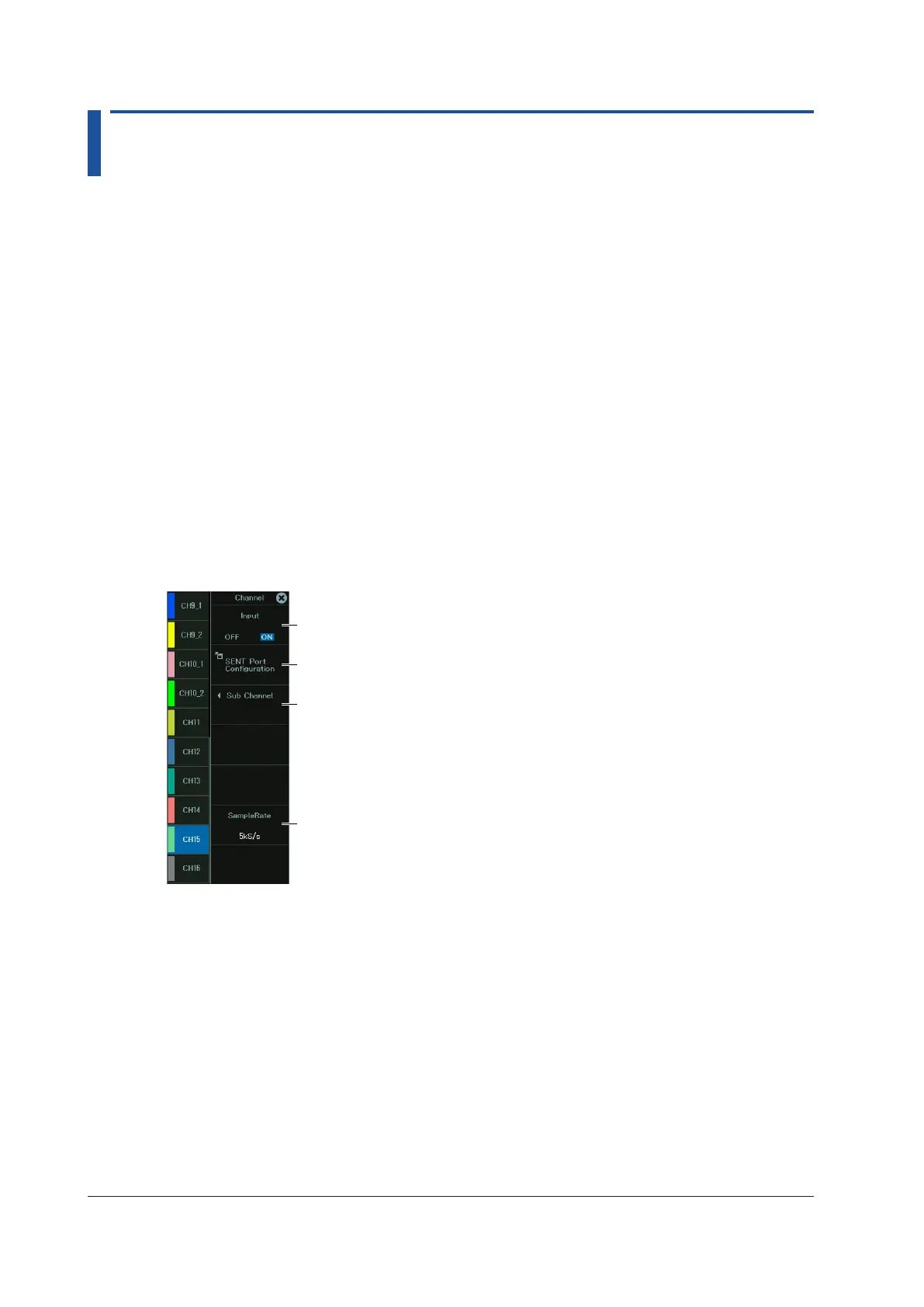

Channel Setup Menu
1.
On the waveform screen’s MENU, tap VERTICAL > CH, or press CH. A channel setup menu
appears.
(You can also tap the channel information display area at the top of the screen to display the
channel setup menu.)
2.
Tap a channel you want to configure, or select it using the jog dial or up and down arrow keys.
Turns the waveform input on or off
See “Configuring SENT Frame
Reading Settings.”
See “Setting the Scale and
Display Groups.”
Set the sample rate (Scope mode).
Set the sample interval (Recorder mode).
► sec. 2.1
