YOKOGAWA ScopeCorder DL950 User Manual

7-6
IM DL950-02EN
7.2 Zooming In on or Out of Waveforms (Recorder
mode)
This section explains the following settings for zooming in or out of waveforms in Recorder mode:
Applicable in Recorder Mode
• Turning zoom on and off
• Zoom position
• Display range (zoom factor)
• Display format
• Main window’s display ratio
• Window layout
• Auto scroll
• Zoom source waveform
• Changing the range for performing automated measurement of waveform parameters
► “Zooming in on or Out of Waveforms” in the Features Guide
ZOOM Menu

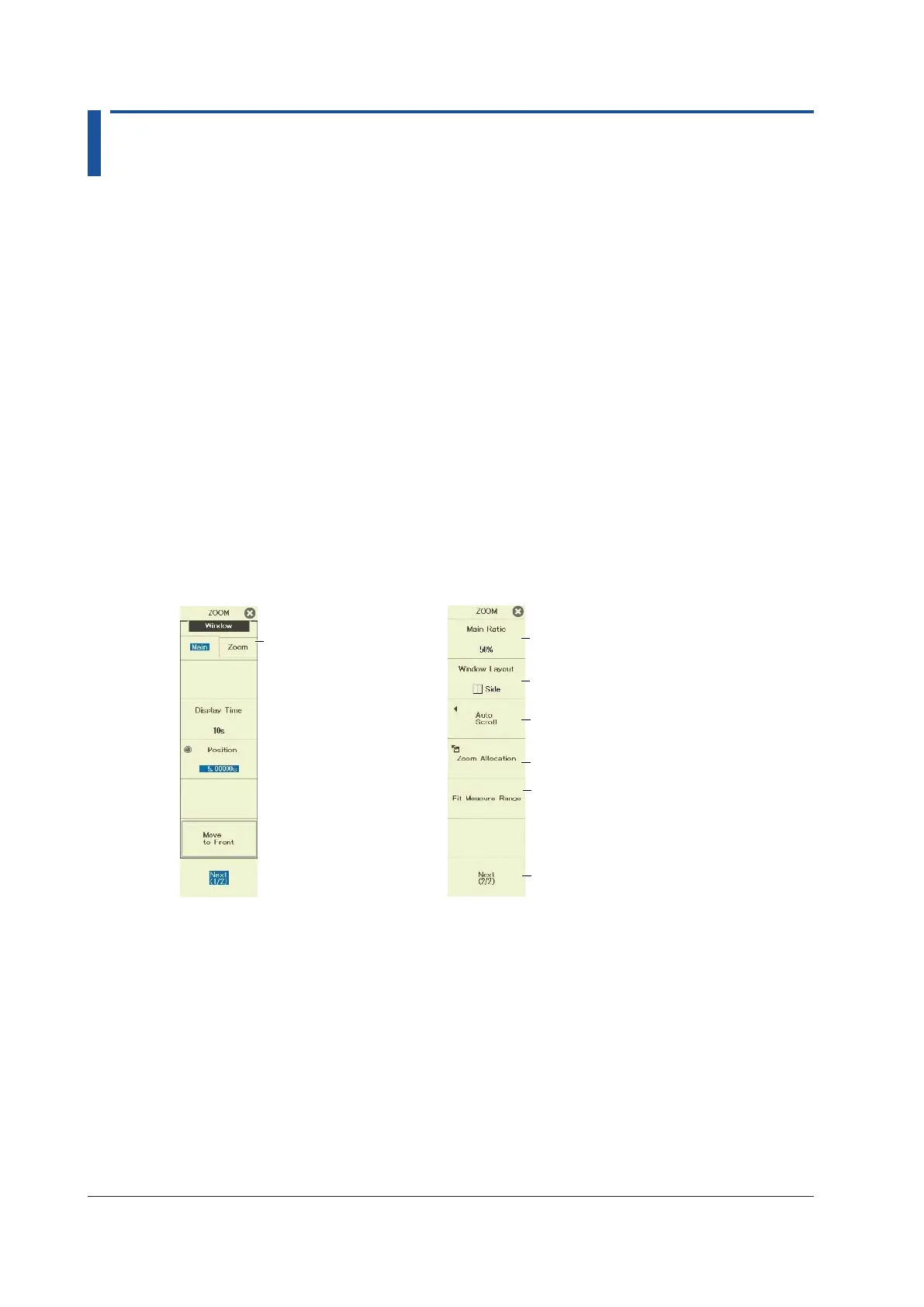

1.
On the waveform screen’s MENU, tap ANALYSIS > ZOOM, or press ZOOM. The ZOOM
menu appears.
See “Switching between
the Main Window and
Zoom Window.”
ZOOM menu (page 1/2)
Set the main window’s display
ratio (50%, 20%, 0%).
Set the window layout
(Side, Vertical).
See “Setting Auto
Scrolling.”
See “Allocating Zoom Source
Waveforms.”
Displays the first
page of the menu
Set the range of automated
measurement of waveform
parameters to the zoom area.
ZOOM menu (page 2/2)
