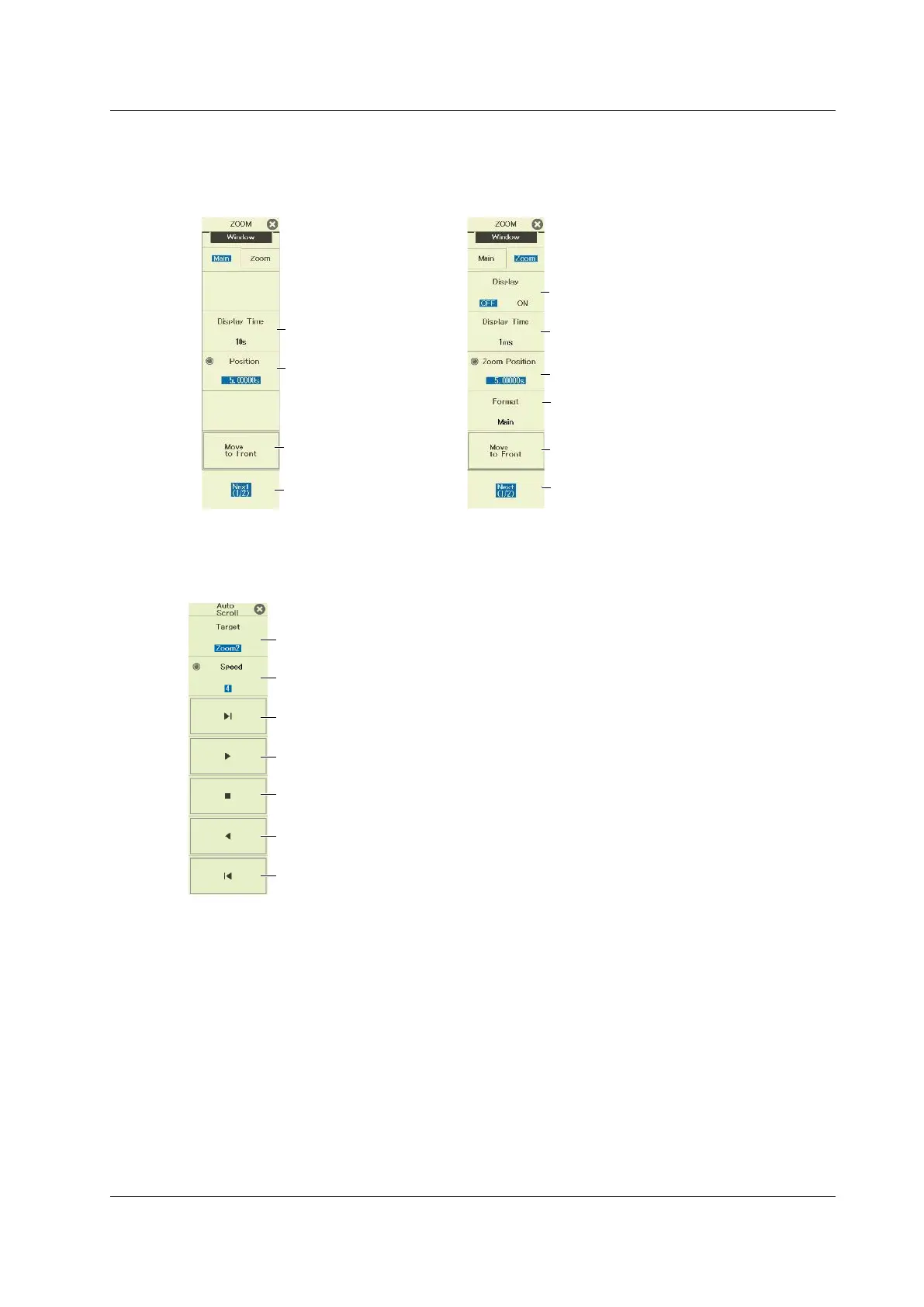

Switching between the Main Window and Zoom Window
2.
Tap the Main or Zoom tab, or press the zoom POSITION knob. The selected tab switches.
Displays the second
page of the menu
Main window menu
Turns the zoom
window on or off
Set the zoom window’s
display time period.
Set the center position of the
zoom window.
Displays the second
page of the menu
Zoom window menu
Set the display format (Main (same
as Main), 1, 2, 3, 4, 5, 6, 8, 12, 16).
Set the main window’s
display time period.
Set the center position
of the main window.
Moves to the beginning
of the waveform
Moves to the beginning
of the waveform
Setting Auto Scrolling (Auto Scroll)
2
. Press the Auto Scroll soft key. The following menu appears.
Target zoom box
Set the scroll speed.
Zoom in on the right edge of the
Main window
Scroll right
Stop auto scrolling
Scroll left
Zoom in on the left edge of the
Main window
7.2 Zooming In on or Out of Waveforms (Recorder mode)
