12.1 Displaying FFT Waveforms
This section explains the following FFT waveform display settings:
Items Common to Scope Mode and Recorder Mode
• Turning the window for displaying FFT waveforms on and off
• Main waveform display area ratio
• FFT window layout
• Turning FFT window linking on and off
• Window1 and Window2 display settings
► “Display Ratio of the Main Window (Main Ratio),”
“Window Layout (Window Layout),”
“Combine Display (Combine Display),” and
“Window Display Setup (Window Display Setup)” in the Features Guide

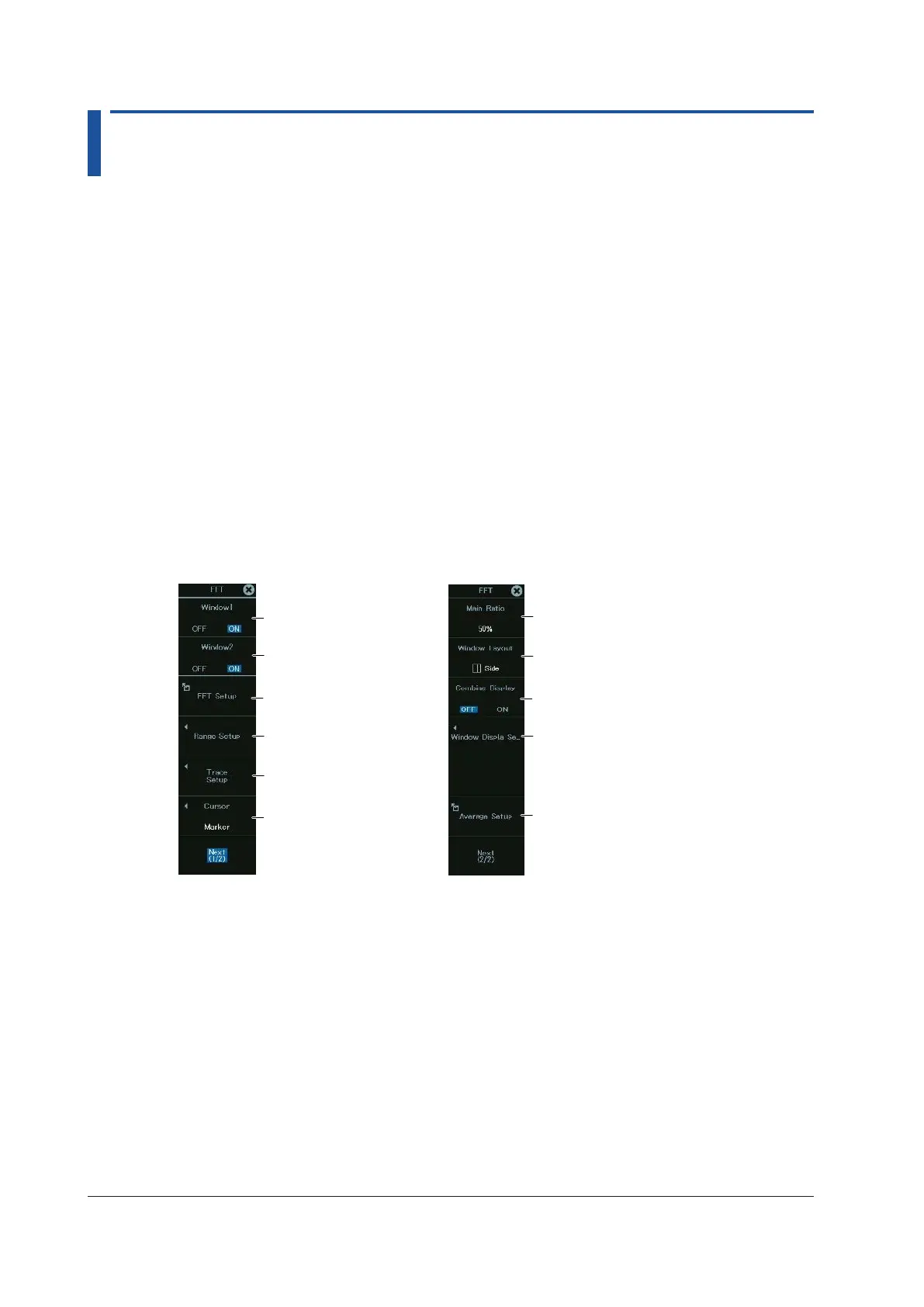

FFT Menu
1.
On the waveform screen’s MENU, tap ANALYSIS > FFT, or press FFT. The following screen
appears.
Configure the FFT.
► sec. 12.2
Turns FFT Window1
on or off
Set the cursor.
► sec. 12.3
Set the main waveform’s
display ratio.
(0%, 20%, 50%)
Set the layout (Side, Vertical).
Turns Window1 and Window2
linking on or off
Set the average measurement.
► sec. 12.2
FFT menu (1/2) FFT menu (2/2)
Turns FFT Window2
on or off
Press to set the traces.
► sec. 12.2
See “Configuring Window1
and Window2 Displays.”
Set the FFT analysis range.
► sec. 12.2
