9.1 Displaying Waveform History Waveforms
This section explains the following settings for displaying history waveforms, which are waveforms
that were previously saved to acquisition memory:
Applicable to Scope Mode
• Display mode
• Highlighting the selected record number
• Display range (start and end record numbers)
• Showing a list of timestamps
• Clearing all history waveforms
► “History Waveform Display/Search (Scope mode only)” in the Features Guide

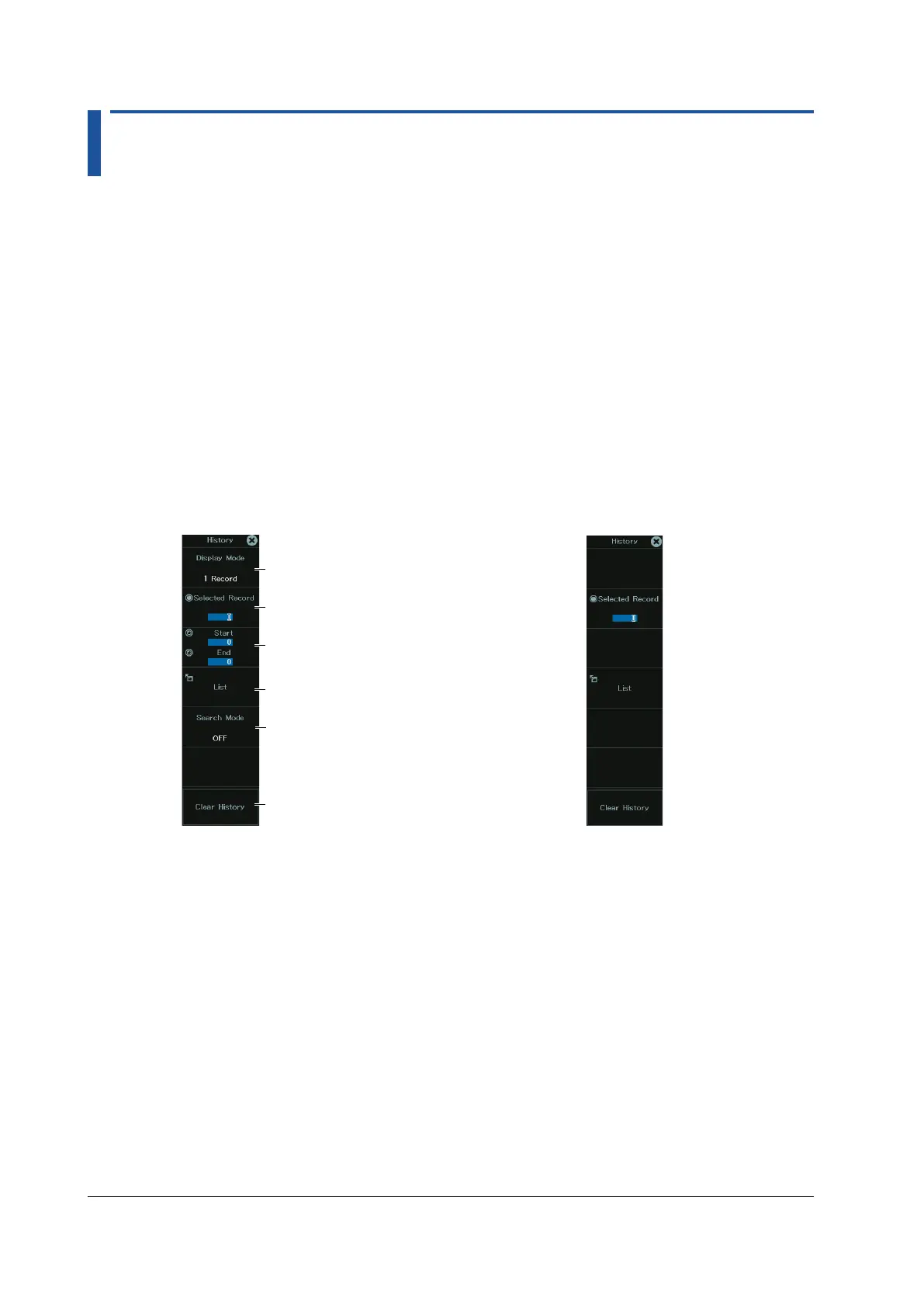

HISTORY menu
1.
On the waveform screen’s MENU, tap ANALYSIS > HISTORY, or press HISTORY
(ANALYSIS).
* This setting only appears when Display Mode is set to 1 Record or All Record.
See “Setting the Display Mode.”
Set the highlight display.*
Set the display range.
See “Displaying a List of History
Waveforms.”
Deletes all the history waveforms
(Changes to Execute when Search Mode is not
set to OFF (see section 9.2)).
Search history waveforms
► sec. 9.2
In dual capture mode
Setting the Display Mode (Display Mode)
2.
Tap Display Mode, or press the soft key.
From the menu that appears, select the display mode.
1 Record: Only the waveform corresponding to the selected record number is displayed.
1
All Record: All selected waveforms are superimposed on each other.
2
All other waveforms
1
are displayed with an intermediate color.
Average Record: Computes the linear average of all the selected waveforms
2
and displays
the result.
1 Specify the highlighted waveform with Selected Record.
2 Specify with Start Record and End Record.
