YOKOGAWA ScopeCorder DL950 User Manual

16-2
IM DL950-02EN
16.1 Configuring Real Time Math
This section explains the following real time math settings.
Items Common to Scope Mode and Recorder Mode
• Turning real time math on and off
• Setting labels
• Setting real time math expressions
• Setting the scaling
• Setting the unit
• Setting display groups
► “Real Time Math (/G03, /G05 option)” in the Features Guide
RealTime Math Menu
1.
On the waveform screen’s MENU, tap CH > RT.MATH CH, or press RT. MATH CH. A real time
math setup menu appears.
2.
Tap a real time math channel you want to configure, or select the channel using the jog dial or
up and down arrow keys.

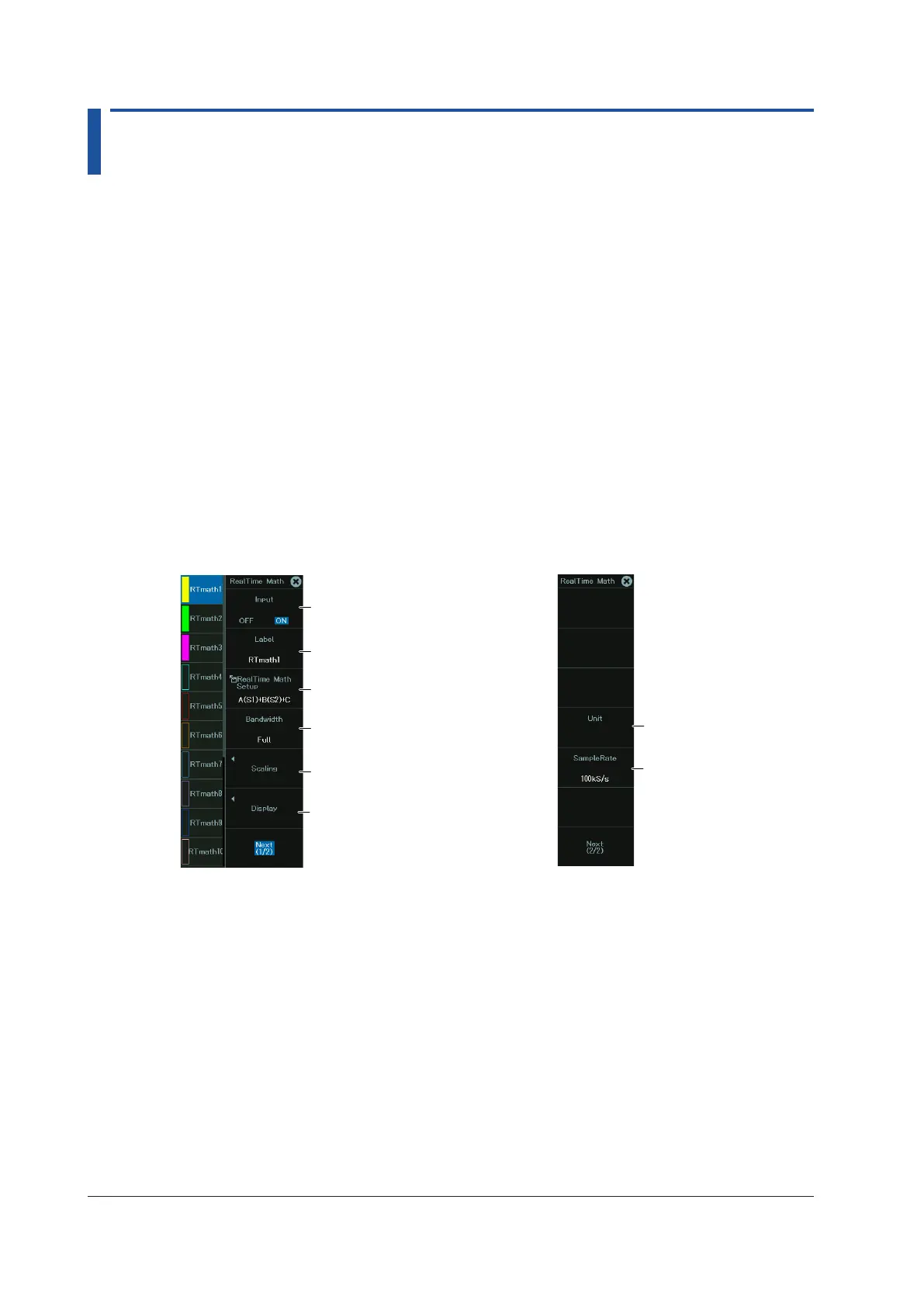

RealTime Math menu (1/2)
RealTime Math menu (2/2)
Set the real time math to ON.
See “Setting Real Time Math
Expressions.”
Set the bandwidth limits.
Set the label.
See “Setting the Scaling.”
Set the unit.
Set the sample rate.
Set display groups.
