4.4 Triggering on an Time Trigger (Simple) in
Scope Mode
This section explains the settings that are used when triggering on a specific date and time in
Scope mode.
Applicable in Scope Mode
• Trigger source
• Date and time
• Time interval
► “Simple Trigger (Simple)” and “Trigger Source (Source)” in the Features Guide
Trigger Menu
1.

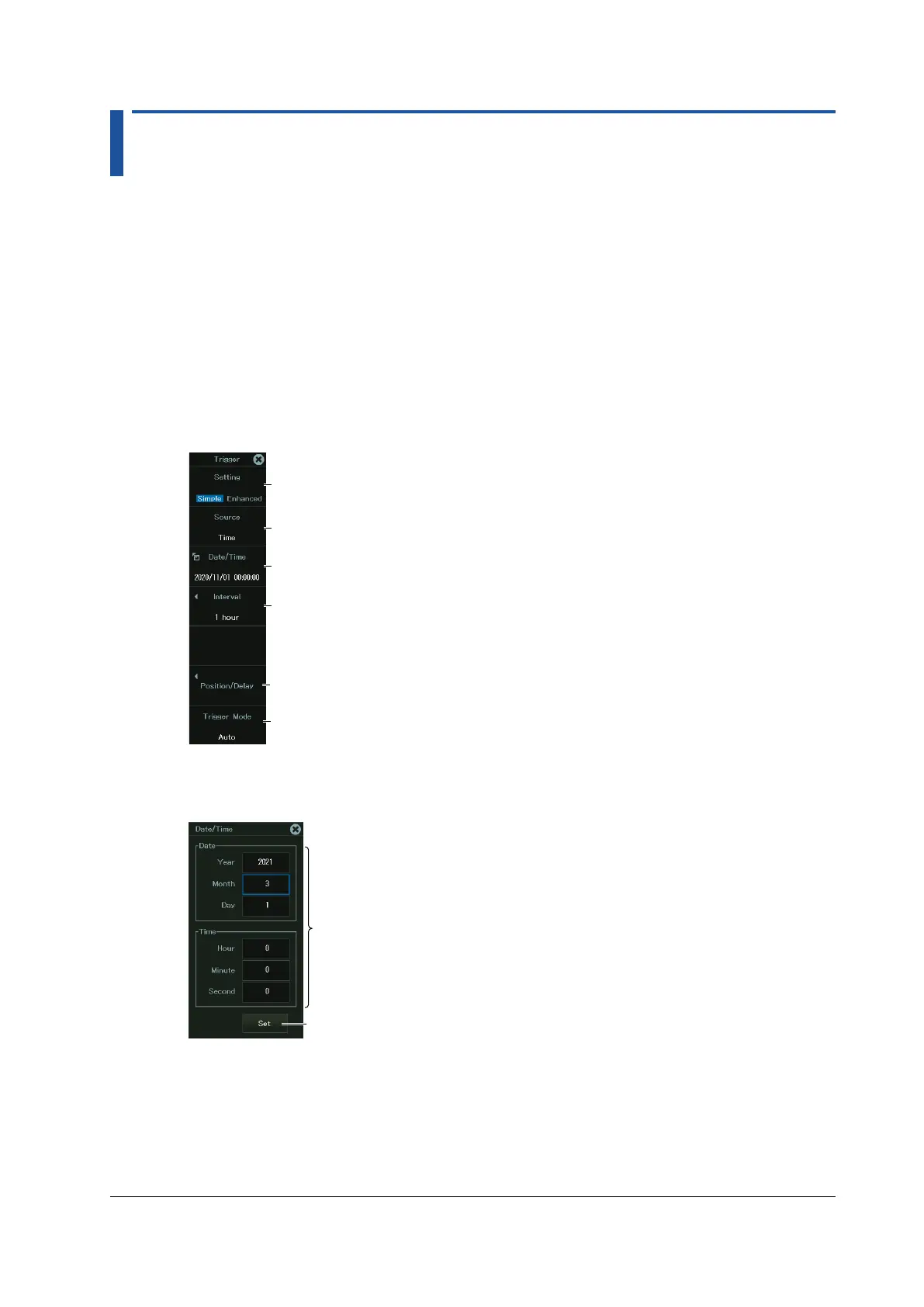

On the waveform screen’s MENU, tap TRIGGER > MENU, or press TRIG.MENU. A trigger
menu appears.
Select Simple.
Set the trigger source to Time.
See “Setting the Date and Time.”
Set the time interval.
Set the trigger position, trigger delay, and hold-off
► sec. 4.2
Set the trigger mode. ► sec. 4.1
Setting the Date and Time (Date/Time Setting)
2.
Press the Date/Time soft key. The following screen appears.
Set the date and time.
Confirms the date and time
To Next Page
