YOKOGAWA ScopeCorder DL950 User Manual

2-55
IM DL950-02EN
2.13 Setting the Digital Filter (/G03, /G05 option)
On models with the /G03 or /G05 option, in addition to the bandwidth limit, you can set a digital filter
(some input modules do not support the digital filter).
Items Common to Scope Mode and Recorder Mode
Digital filter settings
► “Digital Filter (Filter) (/G03, /G05 option)” in the Features Guide

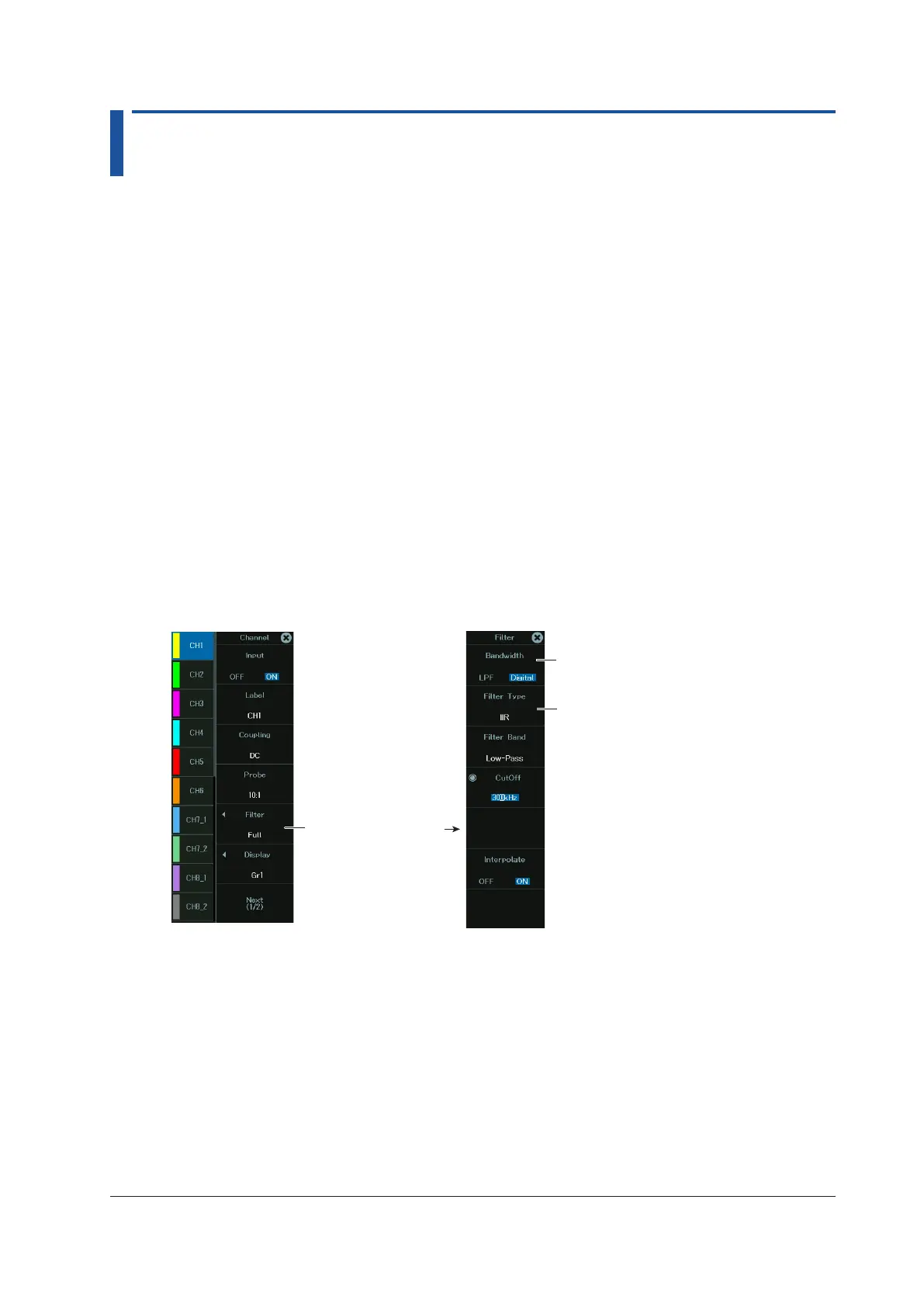

Channel Setup Menu
1.
On the waveform screen’s MENU, tap VERTICAL > CH, or press CH. A channel setup menu
appears.
(You can also tap the channel information display area at the top of the screen to display the
channel setup menu.)
2.
Tap a channel you want to configure, or select it using the jog dial or up and down arrow keys.
Digital filter settings
3.
Tap Filter, or press the soft key. A filter setup menu appears.
“Filter” does not appear for channels without digital filters. Either “Bandwidth Limit” is
displayed, or nothing is displayed.
Set the filter type.
(Gauss/Sharp/IIR/Mean/IIR-Lowpass)
Set the bandwidth limit to Digital.
Digital filter settings
4.
Set Bandwidth to Digital.
