YOKOGAWA ScopeCorder DL950 User Manual

10-3
IM DL950-02EN
10.2 Measuring with Vertical Cursors
This section explains the following settings for measuring T-Y waveforms with vertical cursors:
For information on cursor measurement on X-Y waveforms, see chapter 6.3.
Items Common to Scope Mode and Recorder Mode
• Turning the cursors on and off
• Cursor type
• Source waveform
• Cursor position
• Measurement items
• Cursor value read mode
• Cursor intensity
► “Vertical Cursors (Vertical)” in the Features Guide

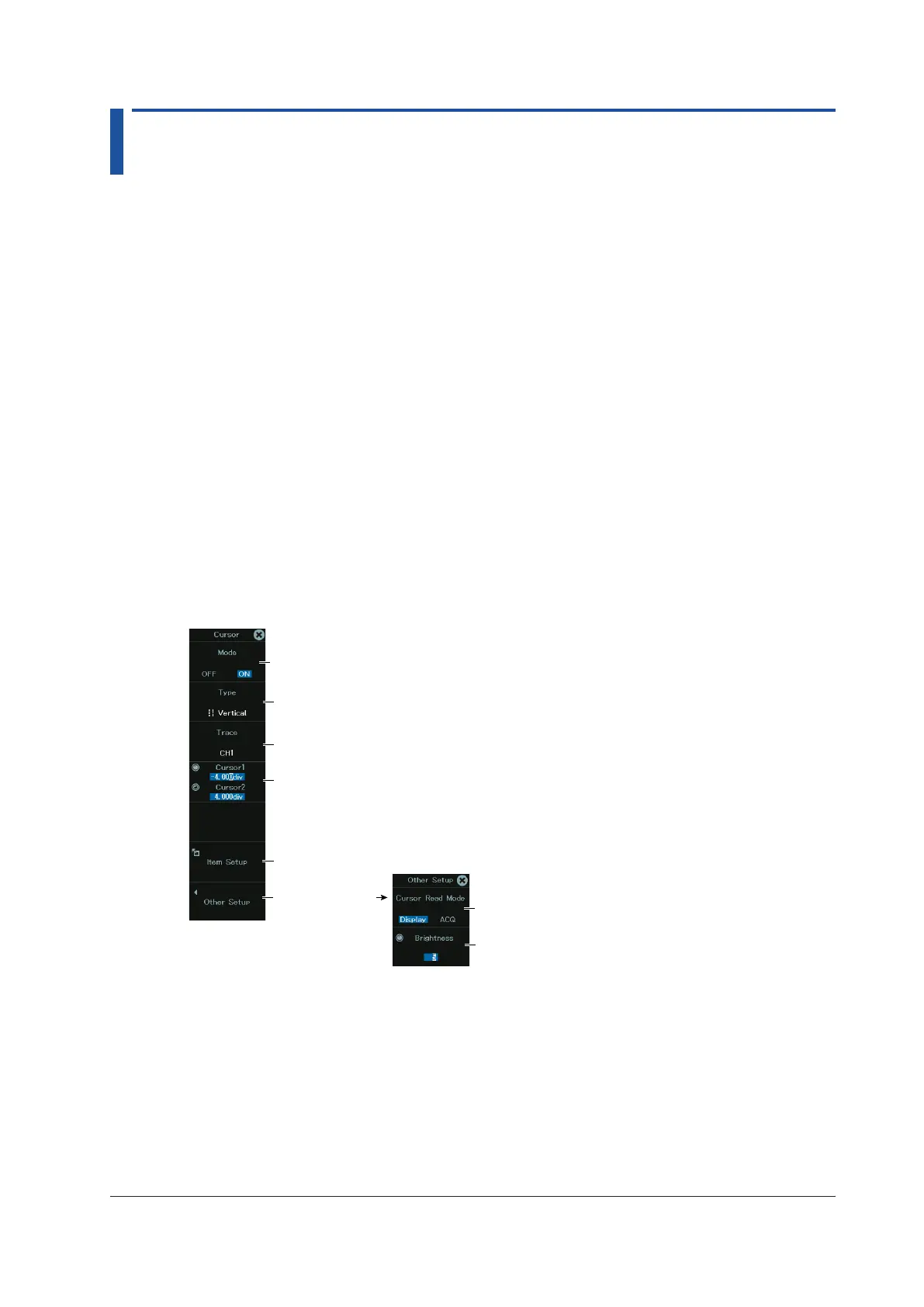

CURSOR Vertical menu
1.
On the waveform screen’s MENU, tap ANALYSIS > CURSOR, or press CURSOR.
2.
Tap Mode, or press the soft key to select ON.
3.
Tap Type, or press the soft key to select Vertical.
Set Type to Vertical.
Set the source waveform.
Set the cursor positions.
See “Setting Measurement Items.”
Turns cursor measurement on or off
Set the cursor display intensity.
See “Cursor Value Read Mode.”
Other settings
