10.4 Measuring with Angle Cursors (Degree)
This section explains the following settings for measuring T-Y waveforms with angle cursors:
Items Common to Scope Mode and Recorder Mode
• Turning the cursors on and off
• Cursor type
• Source waveform
• Cursor position
• Reference cursor position
• Measurement items
• Reference angle
• Cursor value read mode
• Cursor intensity
► “Angle Cursors (Degree)” in the Features Guide

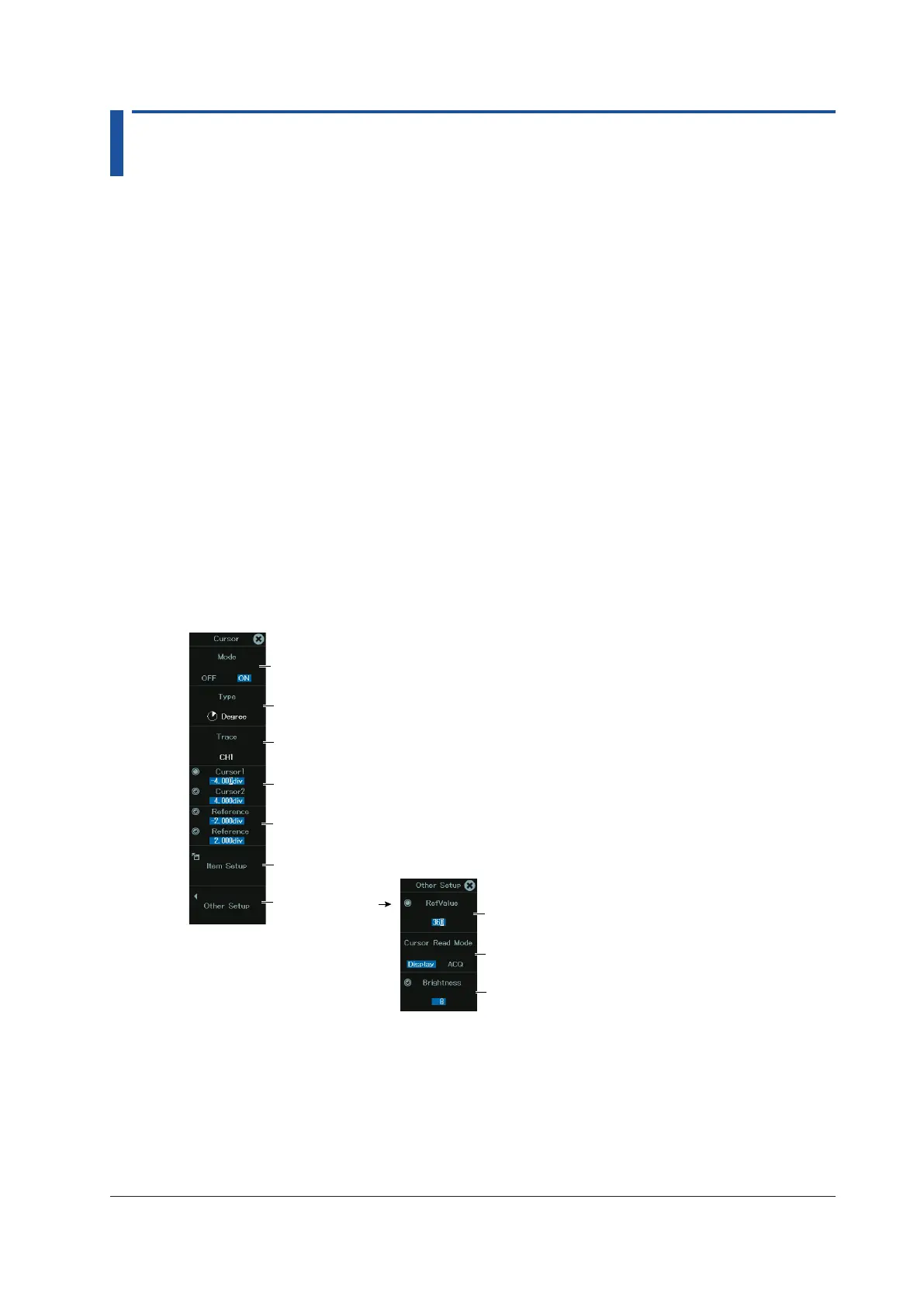

CURSOR Degree menu
1.
On the waveform screen’s MENU, tap ANALYSIS > CURSOR, or press CURSOR.
2.
Tap Mode, or press the soft key to select ON.
3.
Tap Type, or press the soft key to select Degree.
Set the cursor type to Degree.
Set the measurement source waveform (OFF, CH1 to CH16,
16CH TEMP/VOLT, CAN, CAN FD, LIN, SENT, Math1 to
Math8).
Set the cursor positions.
See “Setting Measurement Items.”
Turns cursor measurement on or off
Set the cursor display intensity.
See “Cursor Value Read Mode.”
Set the reference angle (1-720).
(Angle between the reference cursors
(R1, R2))
Set the reference cursor position.
Other settings
