3.5 Performing Real-time Recording (SSD
Recording) (/ST1 option)
This section explains the following settings when acquiring waveforms with the real-time recording
(SSD recording) feature.
Items Common to Scope Mode and Recorder Mode
• Turning SSD recording on and off
• Save destination and file name for recorded data
• File division
► “Waveform Acquisition” and “SSD Recording (SSD Recording, /ST1 option)”
in the Features Guide
Scope Mode

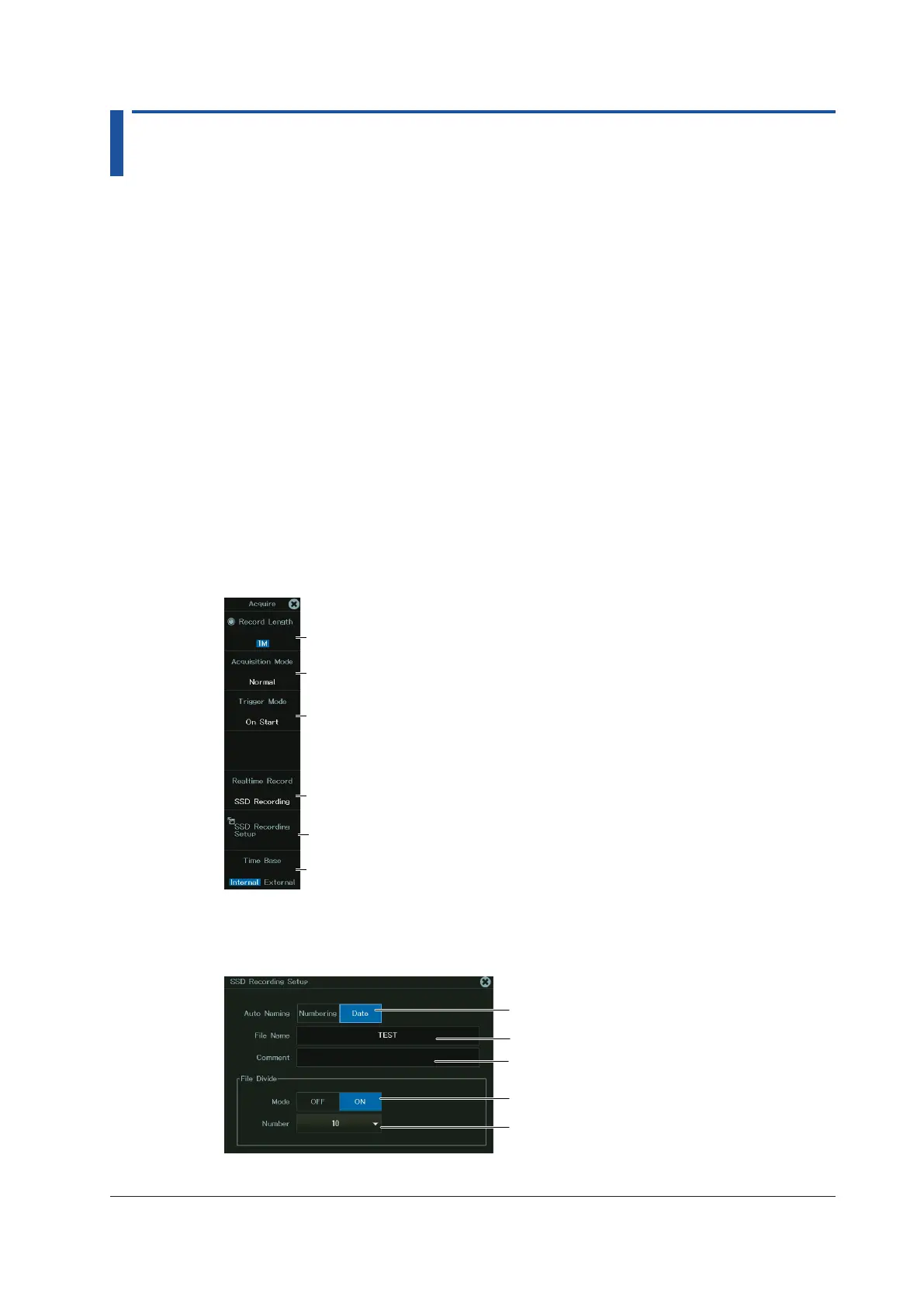

ACQUIRE Menu (when dual capture is off)
1.
On the waveform screen’s MENU, tap ACQUIRE > ACQUIRE, or press ACQUIRE. The
ACQUIRE menu appears.
When the dual capture mode is on, the dual capture menu appears. See section 3.4,
“Using the Dual Capture Feature (Scope mode only).”
Set the time base. ► sec. 3.1
Set the trigger mode to On Start. ► sec. 3.1
Set the acquisition mode to Normal (normal) or
Envelope (envelope). ► sec. 3.1
Set the record length. ► sec. 3.1
Select SSD Recording.
See “SSD Recording Detail Setup.”
SSD Recording Detail Setup (SSD Recording Detail Setup)
2
. Press the SSD Recording Detail Setup soft key. The following menu appears.
Set the file name.
Turns file division on or off
Set a comment.
Set the number of divisions
(10, 20, 50, 100).
Set Auto Name (auto naming)
(Numbering, Date).
To Next Page
