YOKOGAWA ScopeCorder DL950 User Manual

10-2
IM DL950-02EN

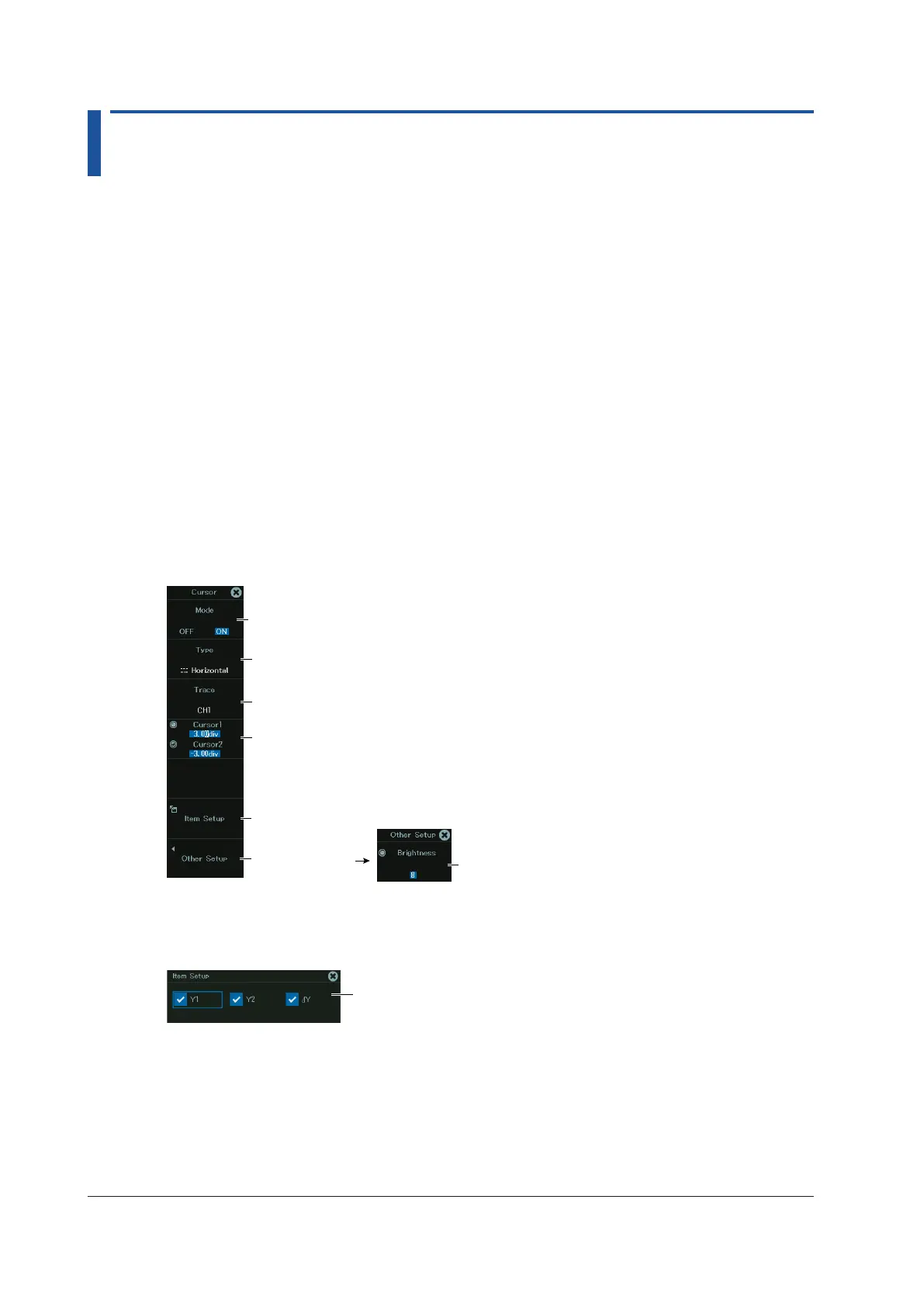

10.1 Measuring with Horizontal Cursors
This section explains the following settings for measuring T-Y waveforms with horizontal cursors:
For information on cursor measurement on X-Y waveforms, see chapter 6.3.
Items Common to Scope Mode and Recorder Mode
• Turning the cursors on and off
• Cursor type
• Source waveform
• Cursor position
• Measurement items
• Cursor intensity
► “Horizontal Cursors (Horizontal)” in the Features Guide
CURSOR Horizontal menu
1.
On the waveform screen’s MENU, tap ANALYSIS > CURSOR, or press CURSOR.
2.
Tap Mode, or press the soft key to select ON.
3.
Tap Type, or press the soft key to select Horizontal.
Set Type to Horizontal.
Set the source waveform.
Set the cursor positions.
See “Setting Measurement Items.”
Other settings
Turns cursor measurement on or off
Set the cursor display intensity.
Setting Measurement Items (Item Setup)
4.
Tap Item Setup, or press the soft key. The following screen appears.
Select the measurement items that you want to use.
Y1: Vertical value at Cursor1
Y2: Vertical value at Cursor2
ΔY: Difference between the vertical values of Cursor1
and Cursor2
