2.4 Configuring Temperature Measurements (For
16-CH temperature/voltage input modules)
This section explains the following temperature measurement settings for the 16-CH temperature/
voltage input module:
Items Common to Scope Mode and Recorder Mode
• Turning waveform input or and off
• Data update interval
• All sub channel settings
(Display label, input coupling, thermocouple type, unit, upper and lower display range limits,
RJC, burnout)
• Display setup (display group)
• Upper and lower limits of the display range
• Unit
• Temperature Setup (RJC, burnout)
• Sample Rate and Sample Interval
► “Temperature Measurement (For the 16-CH Temperature/Voltage Input Module)” in the
Features Guide

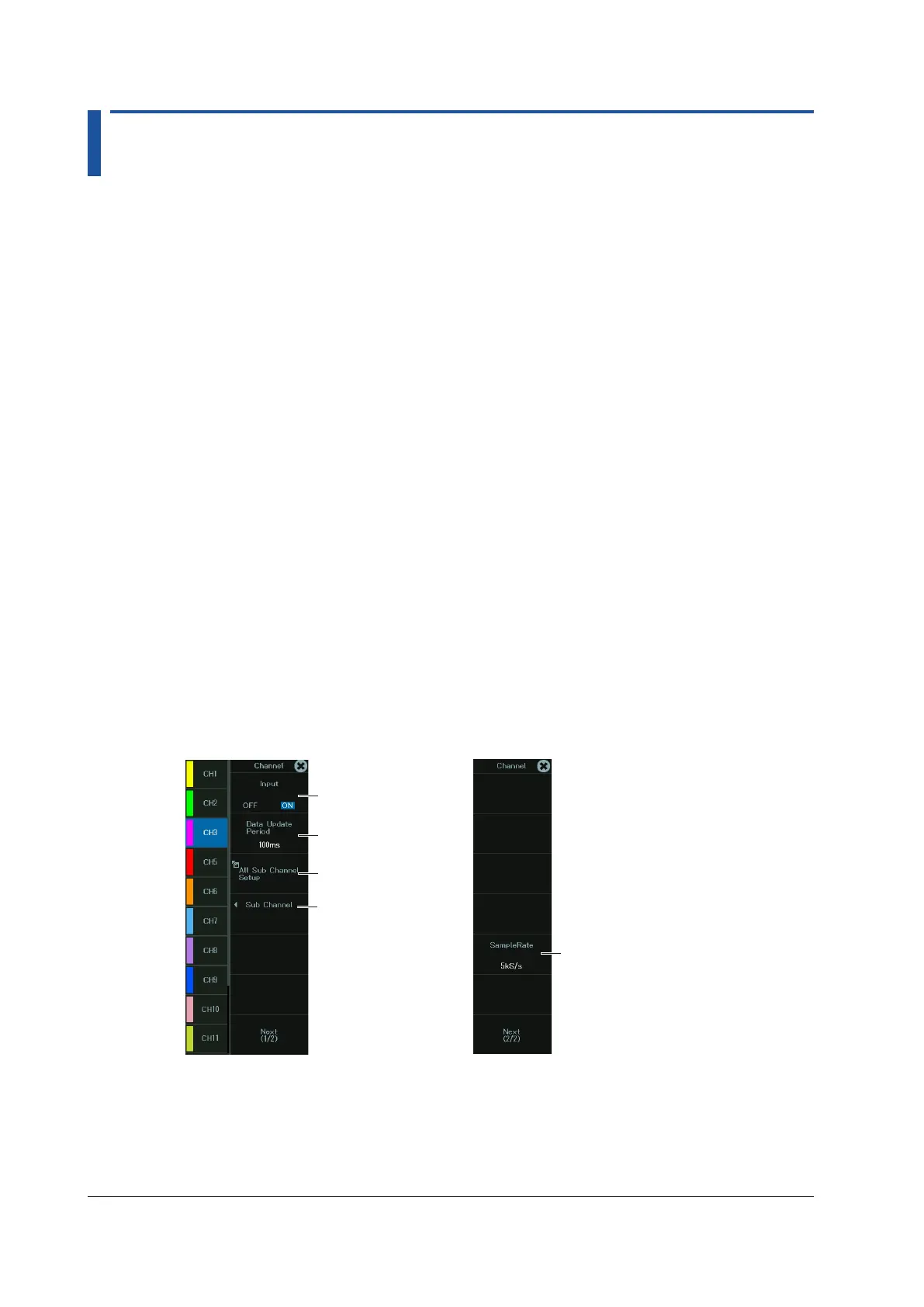

Channel Setup Menu
1.
On the waveform screen’s MENU, tap VERTICAL > CH, or press CH. A channel setup menu
appears.
(You can also tap the channel information display area at the top of the screen to display the
channel setup menu.)
2.
Tap a channel you want to configure, or select it using the jog dial or up and down arrow keys.
Turns the waveform
input on or off
Set the data update
interval.
See “All Sub
Channel Setup.”
Channel setup menu (1/2)
Channel setup menu (2/2)
See “Sub Channel
Setup.”
Set the sample rate.
(Scope mode)
Set the sample interval.
(Recorder mode)
► sec. 2.1
