3.1 Setting Conditions for Waveform Acquisition
(Scope mode)
This section explains the following settings for acquiring waveforms in Scope mode:
Applicable in Scope Mode (dual capture mode off)
• Record length
• Acquisition mode
• Trigger mode
• Waveform acquisition count
• Time base
• Time scale setting
► “Waveform Acquisition” in the Features Guide

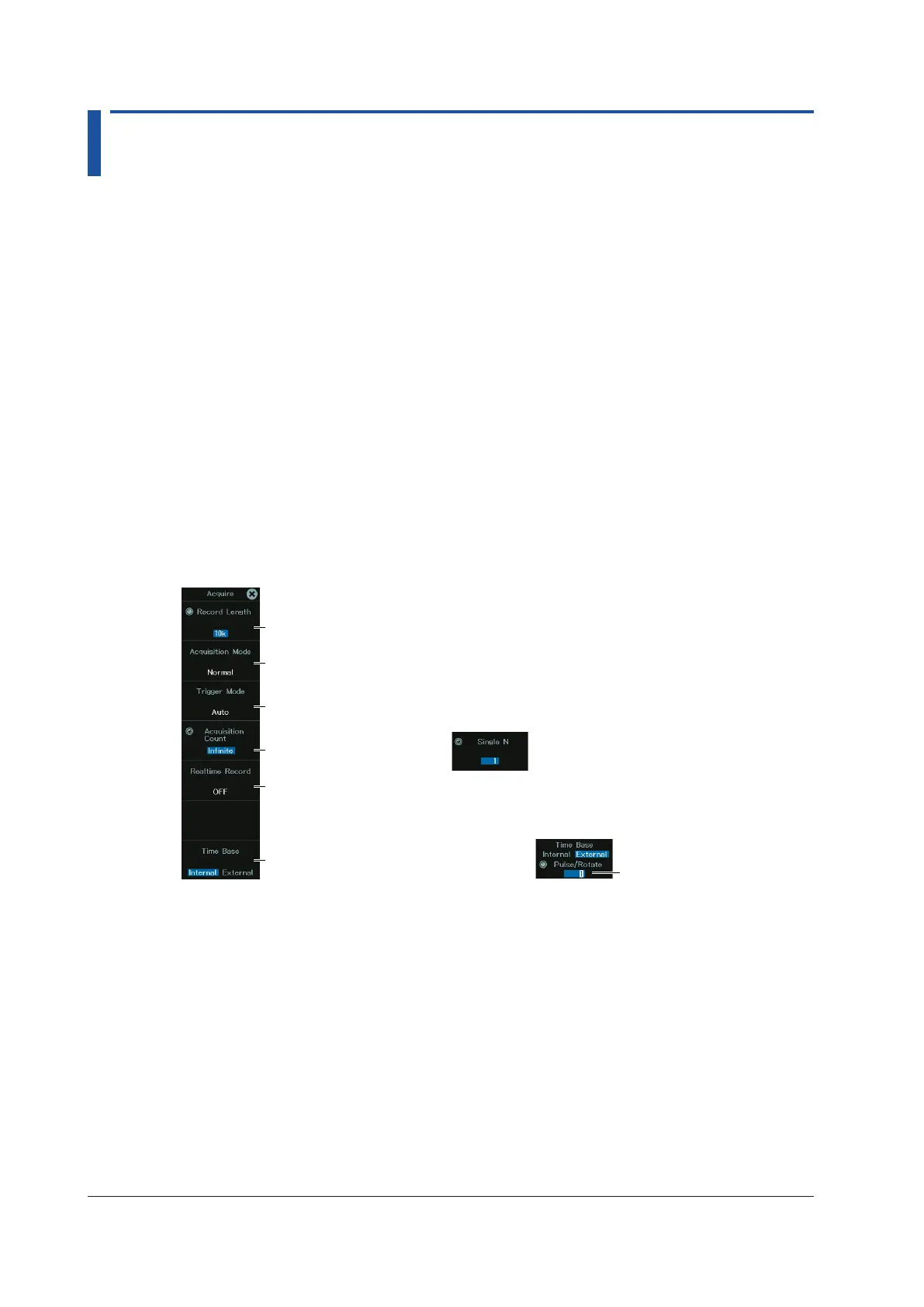

ACQUIRE menu
1.
On the waveform screen’s MENU, tap ACQUIRE > ACQUIRE, or press ACQUIRE. The
ACQUIRE menu appears.
When the dual capture mode is on, the dual capture menu appears. See section 3.4, “Using
the Dual Capture Feature (Scope mode only).”
When the Acquisition Mode Is Set to Normal or Envelope
Set the time base (Internal, External).
Set the number of
waveform acquisitions.*
Set the trigger mode.
Set the acquisition mode to Normal (normal) or Envelope (envelope).
Set the record length.
Set real-time recording. ► sec. 3.5 (/ST1 option)
External
Set the pulse/rotation.
* When SSD Recording is off or when the trigger mode is set to Auto, AutoLevel, or Normal
When the trigger mode is set to Single N
