4.16 Triggering on a Time Trigger in Recorder Mode
This section explains the settings that are used when triggering on a specific date and time in
Recorder mode.
Applicable in Recorder Mode
• Trigger source
• Date and time
• Pre-trigger
► “Pre-Trigger (Pre Trigger)” and “Time Trigger (Time)” in the Features Guide
Trigger Menu

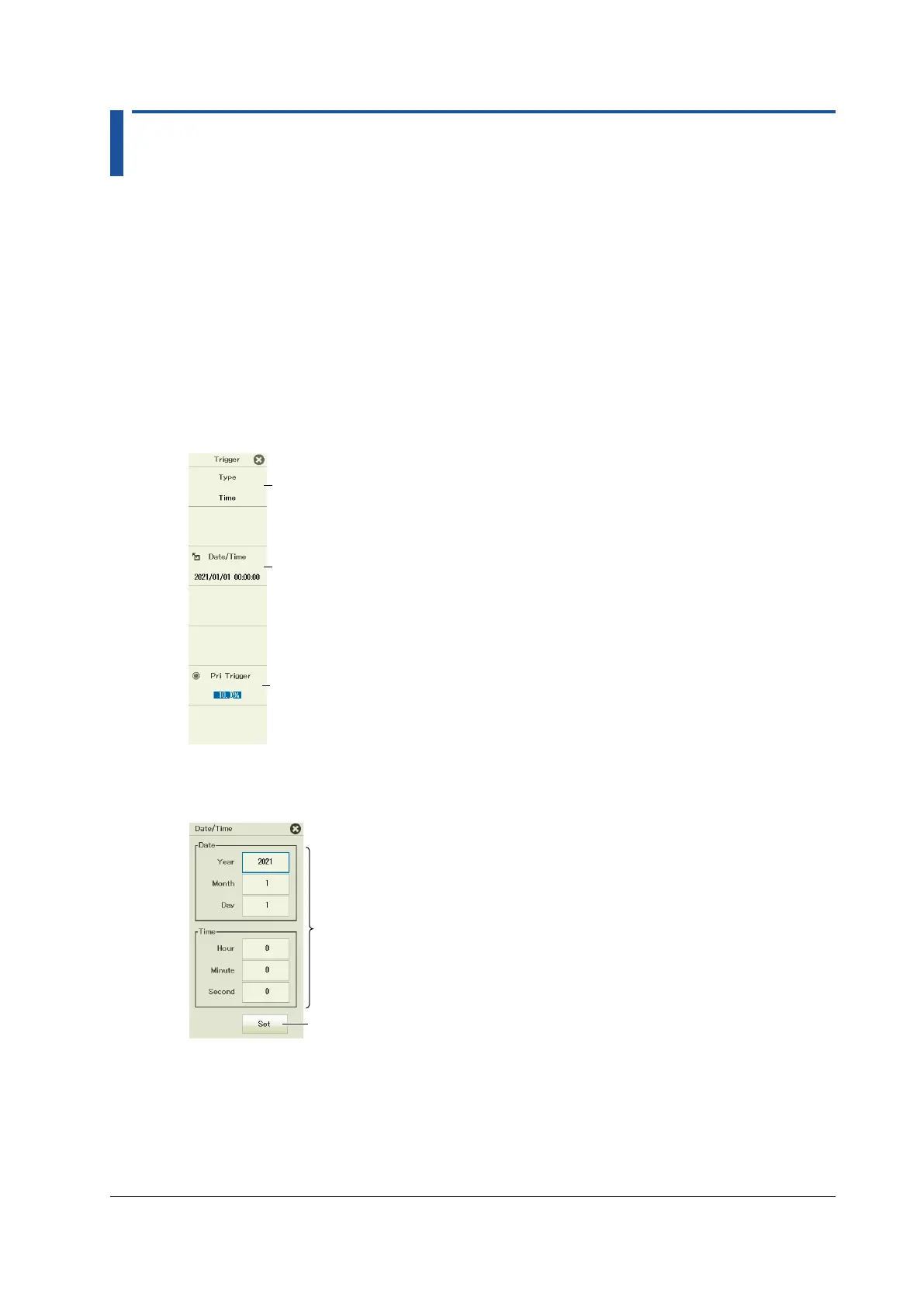

1.
On the waveform screen’s MENU, tap TRIGGER > MENU, or press TRIG.MENU. A trigger
menu appears.
Set the trigger type to Time.
See “Setting the Date
and Time.”
Set the pre-trigger.
Setting the Date and Time (Date/Time Setting)
2.
Press the Date/Time Setting soft key. The following screen appears.
Set the date and time.
Confirms the date and time
