YOKOGAWA ScopeCorder DL950 User Manual

10-5
IM DL950-02EN
10.3 Measuring with Marker Cursors (Marker)
This section explains the following settings for measuring T-Y waveforms with marker cursors:
For information on cursor measurement on X-Y waveforms, see chapter 6.3.
Items Common to Scope Mode and Recorder Mode
• Turning the cursors on and off
• Cursor type
• Marker type
• Measurement source waveform
• Cursor position
• Measurement items
• Marker form
• Cursor value read mode
• Cursor intensity
► “Marker Cursors (Marker)” in the Features Guide

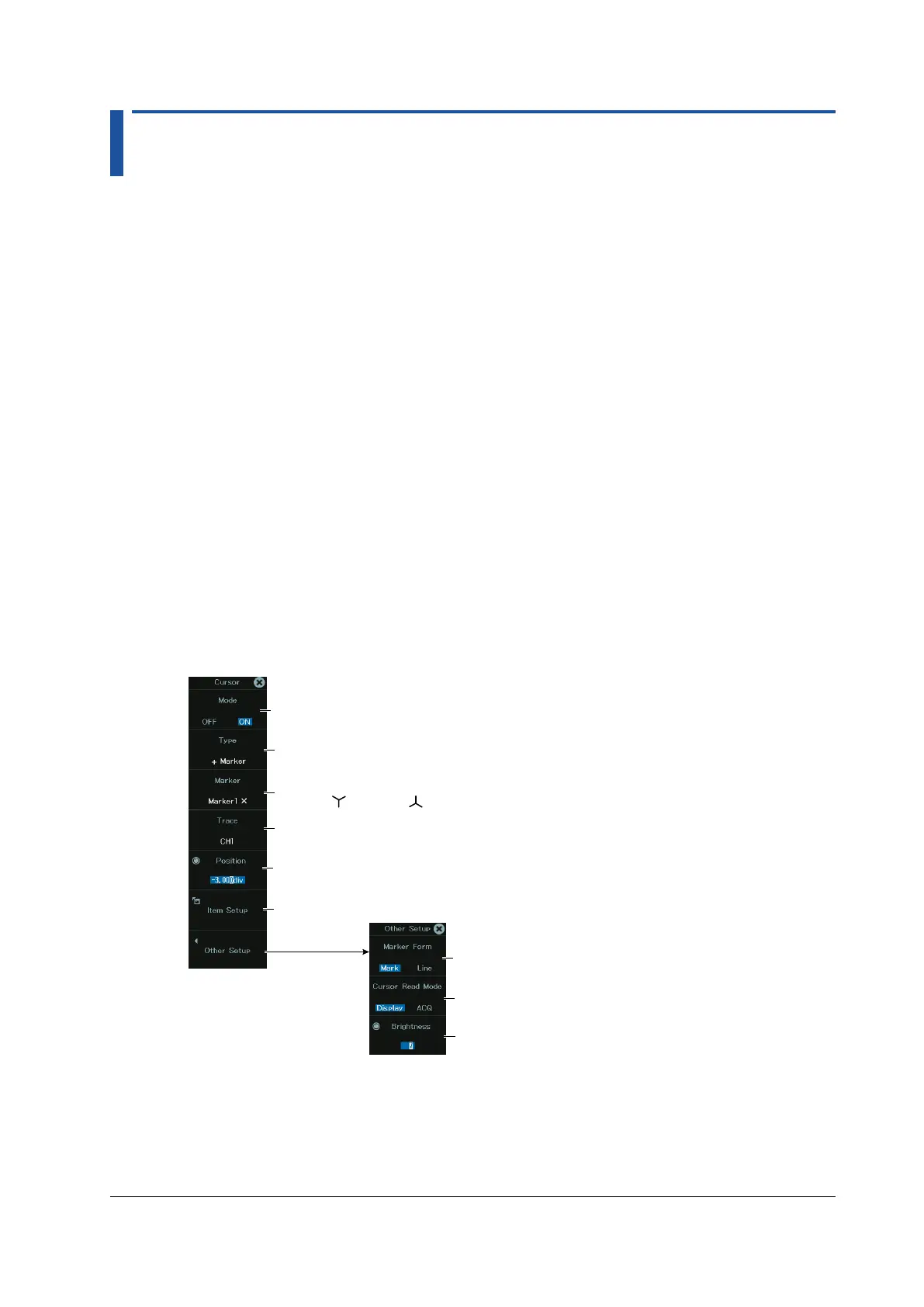

CURSOR Marker menu
1.
On the waveform screen’s MENU, tap ANALYSIS > CURSOR, or press CURSOR.
2.
Tap Mode, or press the soft key to select ON.
3.
Tap Type, or press the soft key to select Marker.
Set the cursor type to Marker.
Set the measurement source waveform (OFF, CH1 to CH16,
16CH TEMP/VOLT, CAN, CAN FD, LIN, SENT, Math1 to
Math8).
Set the marker position.
See “Setting Measurement Items.”
Other settings
Turns cursor measurement on or off
Set the cursor display intensity.
See “Cursor Value Read Mode.”
Set the marker you want to edit (Marker1 X, Marker2 +,
Marker3 , Marker2 ).
Set the marker shape (Marker, Line).
