22.2 Configuring the Multiple-Unit Connection
This section explains the following settings for connecting multiple DL950s.
Items Common to Scope Mode and Recorder Mode
• Configuring the main unit and sub units
• Connection and disconnection
► “Synchronizing Multiple Instruments (/C50 option)” in the Features Guide

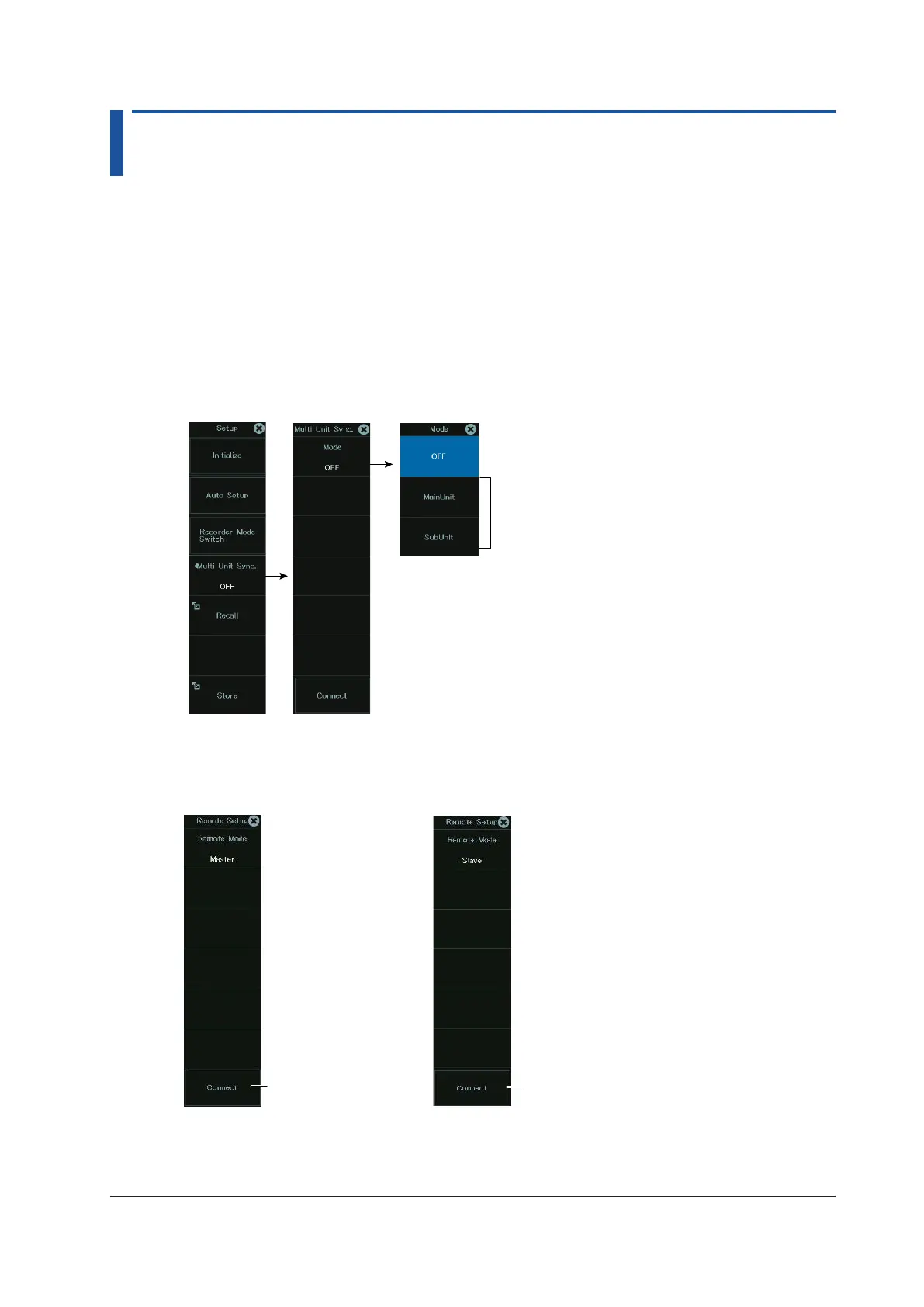

SETUP Multi Unit Sync. Menu
1.
On the waveform screen’s MENU, tap SETUP > SETUP, or press SETUP.
2.
Tap Multi Unit Sync., or press the soft key. The following screen appears.
See “Configuring the Main Unit
and Sub Units.”
Configuring the Main Unit and Sub Units
3.
Tap MainUnit or SubUnit, or press the soft key. The following screen appears.
See “Connection”
and “Disconnection.”
See “Connection” and
“Disconnection.”
Main unit Sub unit
