1.1 Setting the Operation Mode
This section explains how to set the operation mode.
Items Common to Scope Mode and Recorder Mode
Setting the Operation Mode
► “Operation Mode (Recorder Mode Switch/Scope Mode Switch)” in the Features Guide

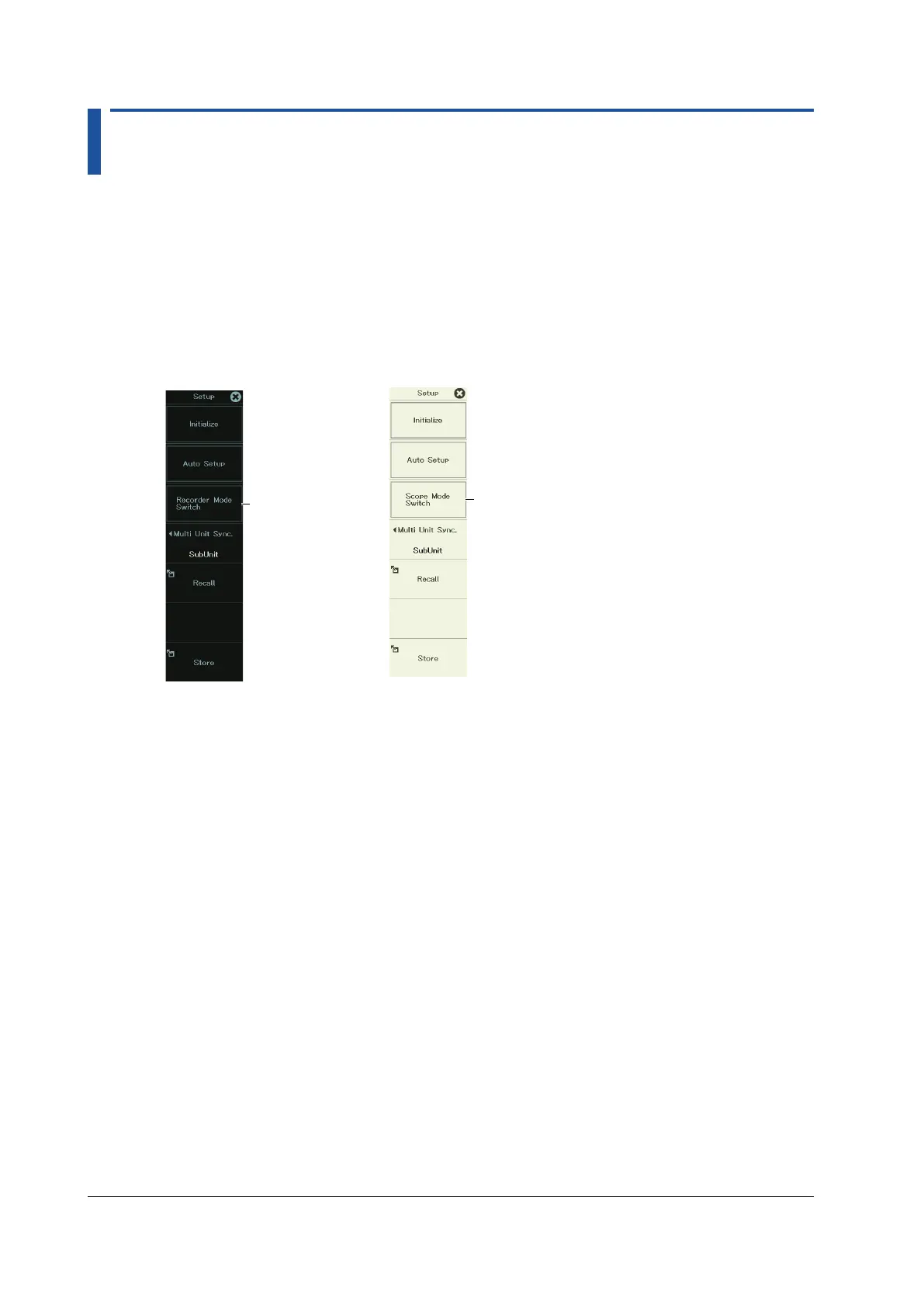

SETUP Screen
1.
On the waveform screen’s MENU, tap SETUP > SETUP, or press SETUP.
Set the operation
mode.
Scope Mode
Recorder Mode
Set the operation
mode.
2.
To switch from Scope mode to Recorder mode, tap Recorder Mode Switch. To switch from
Recorder mode to Scope mode, tap Scope Mode Switch, or press the corresponding soft
key. A confirmation message appears.
3.
Tap OK, or select OK using the arrow keys, and press SET.
Scope Mode (Scope Mode)
Scope mode is used to set the time axis using Time/Div and record length. This is the typical time
scale setting method for oscilloscopes. The default screen background color (section 5.4) is black.
Recorder Mode
Recorder mode is used to set the time axis using the measurement time and sampling interval. This
is the typical time scale setting method for recorders. The default screen background color (section
5.4) is white.
