Setting the Trigger Source (Source)
2.

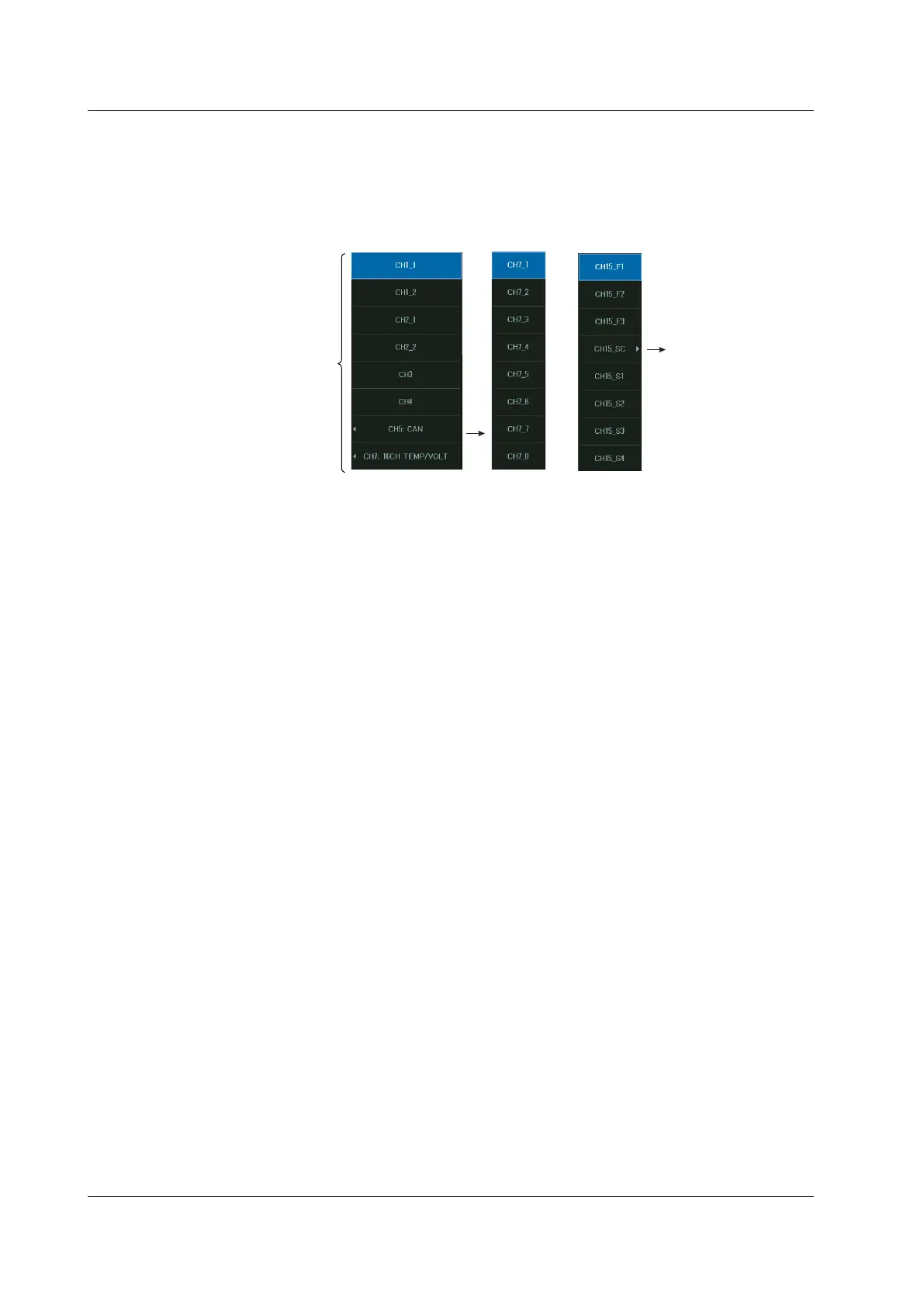

Press the Source soft key. The following menu appears.

Set the sub channel.
SENT
Set the source
channel
(CH1 to CH16,
16CH TEMP/VOLT,
CAN, CAN FD, LIN,
SENT)
* The list displays channel numbers and labels. For 16CH TEMP/VOLT, CAN, CAN FD,
LIN, and SENT, sub channel whose input (Input) is set to OFF cannot be selected.
For SENT SC
and ET, set also
the source bit or
error item.
16CH TEMP/VOLT,
CAN, CAN FD, LIN
4.3 Triggering on an Edge Trigger (Simple) in Scope Mode
