Setting the Scale and Display Groups (Sub Channel)
3.

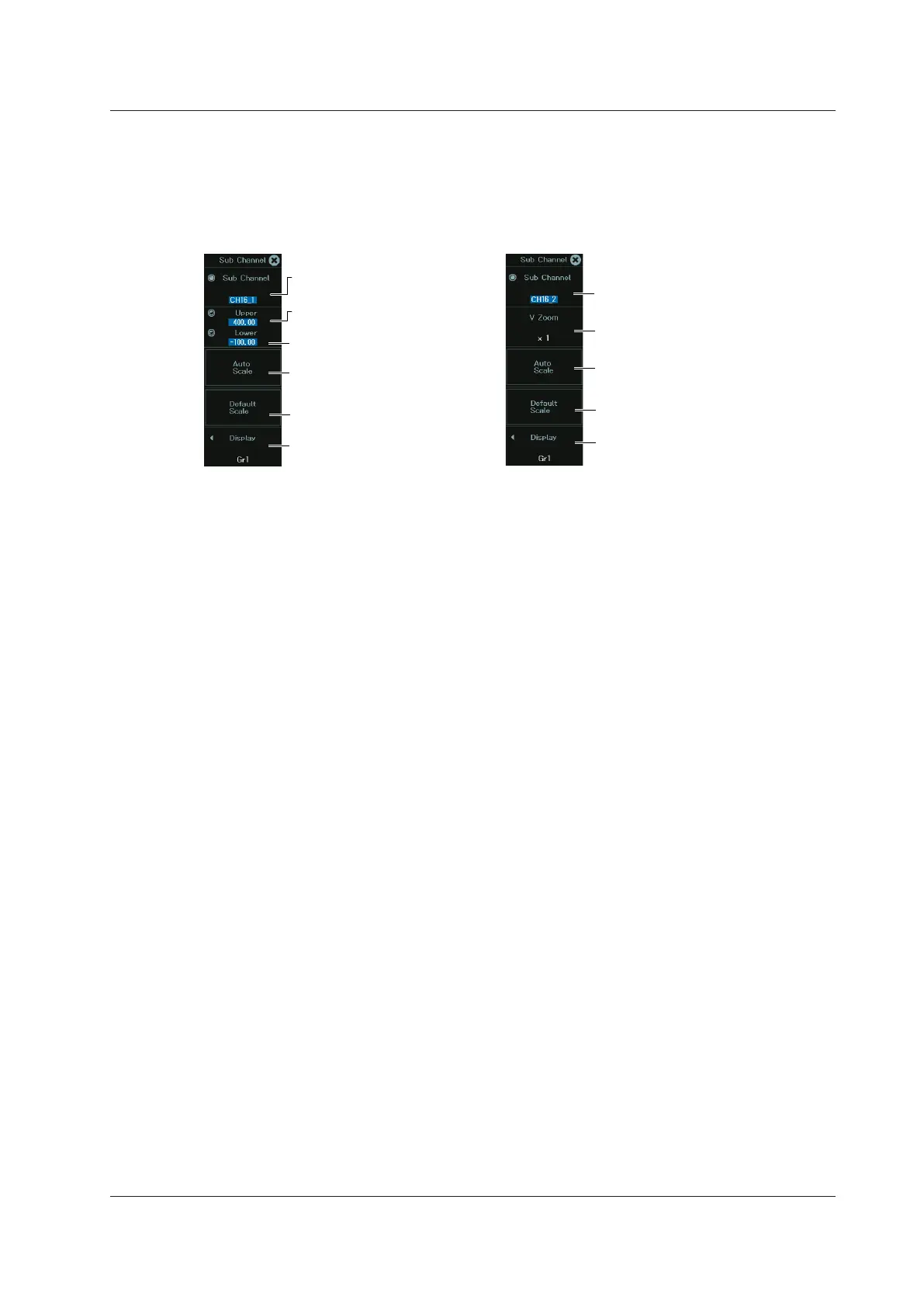

After step 2 on page 2-42, tap Sub Channel, or press the soft key. The following screen
appears.
Set the upper display
range limit.
Executes auto scale
Executes default scale
Vertical zoom
Set the lower display range
limit.
Executes auto scale
Executes default scale
When the Data Type (Value
Type) is Unsigned or Signed
When the Data Type
(Value Type) is Logic
Select the sub channel that
you want to set.
Select the sub channel that
you want to set.
Display settings
► sec. 2.1
Display settings
► sec. 2.1
