YOKOGAWA ScopeCorder DL950 User Manual

2-44
IM DL950-02EN

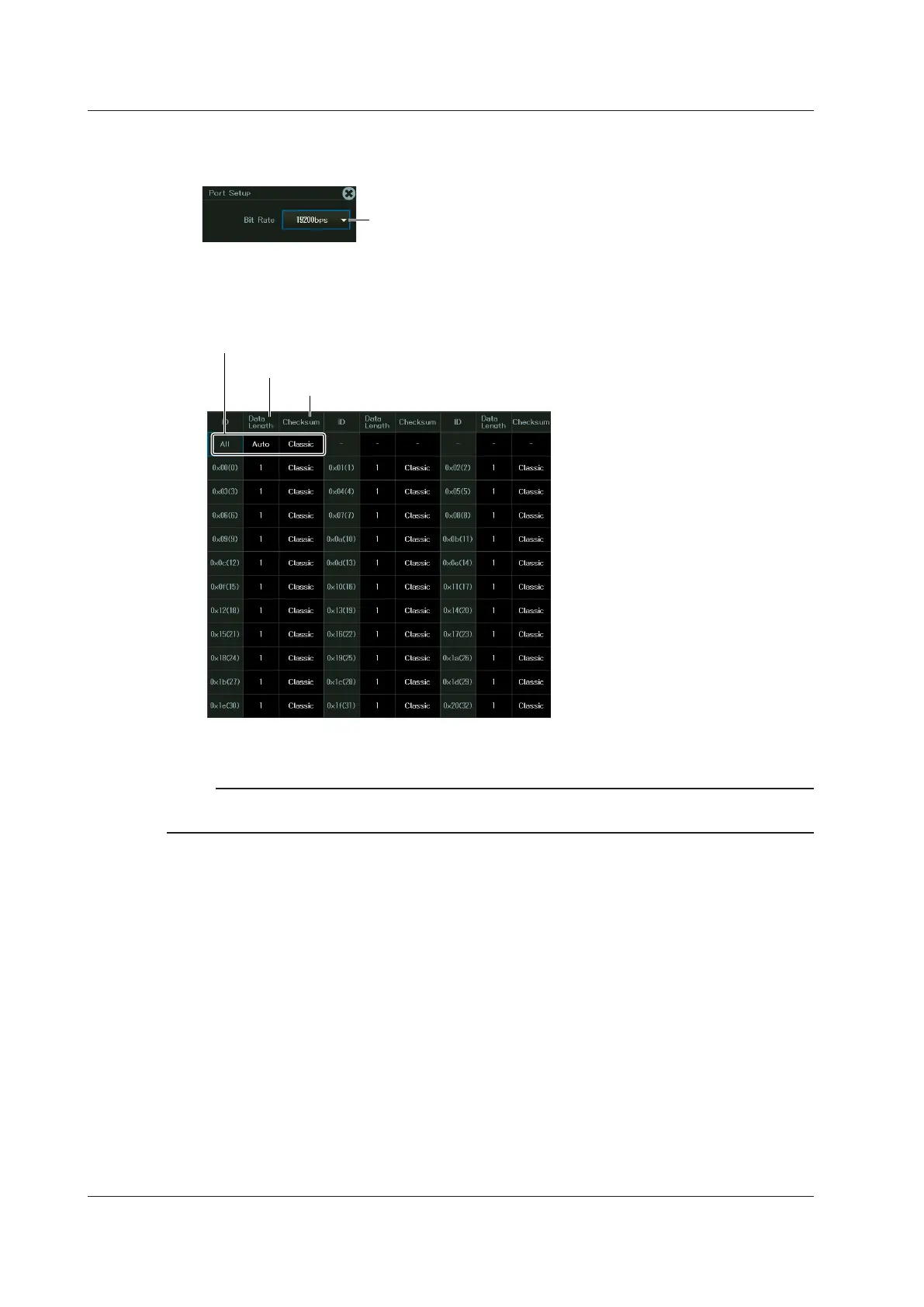

Port Setup (Port Setup)
4.
Tap Port Setup, or press the soft key. The following screen appears.
Set the bit rate.
(2400bps, 9600bps, 19200bps)
Frame Setup (Frame Setup)
4.
Tap Frame Setup, or press the soft key. The following screen appears.
Set the data length.
Select the checksum method (Classic, Enhanced).
To set frames 0 to 59 to the same setting at once, change the settings
in the All row.*
5.
Tap each item. Use the displayed list (options) or input box to set the items.
Note
All IDs are displayed. Only the settings for the frames that have IDs that data will be read for will be
enabled. The settings for frames that have other IDs will be ignored.
Loading Definition Files (Symbol File Load)
4.
Tap Symbol File Load, or press the soft key. A file list appears.
5.
On the file list, tap a symbol file (SBL file).
For details on file list operations, see section 19.10.
6.
Tap Load. A confirmation message appears.
7.
Tap OK. The symbol file is loaded.
2.10 Configuring the Monitoring of LIN Bus Signals (/VCE option)
