Configuring LIN Frame Reading Settings (LIN Port Configuration)
3
Tap LIN Port Configuration, or press the soft key.
All Sub Channel Setup (All SubChannel Setup - LIN Data Extraction
Conditions)
4.

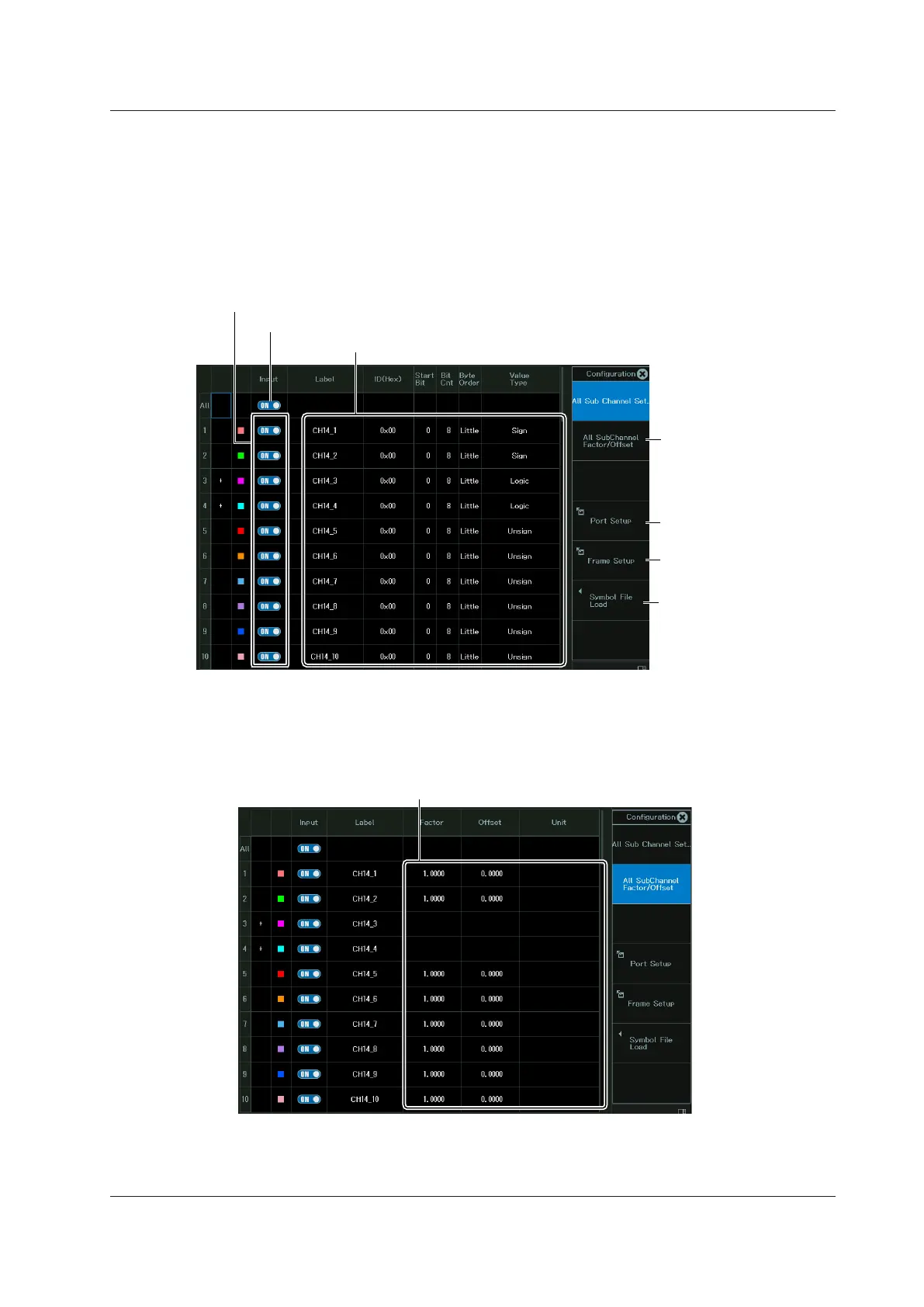

Tap All SubChannel Setup, or press the soft key. The following screen appears.
See “Frame Setup.”
LIN data extraction conditions
Turns sub channels on or off
Set each sub channel’s input to on or off.
See “Port Setup.”
See “Setting All Sub
Channel
Factor/Offset.”
Turns all sub channel on or off
See “Loading
Definition Files.”
Setting All Sub Channel Factor/Offset (All SubChannel Factor/Offset - LIN
Data Conversion Condition)
4.
Tap All SubChannel Factor/Offset, or press the soft key. The following screen appears.
LIN data conversion conditions
You cannot set Factor, Offset, or Unit when the data type (Value
Type) is set to Logic.
2.10 Configuring the Monitoring of LIN Bus Signals (/VCE option)
