YOKOGAWA ScopeCorder DL950 User Manual

21-3
IM DL950-02EN

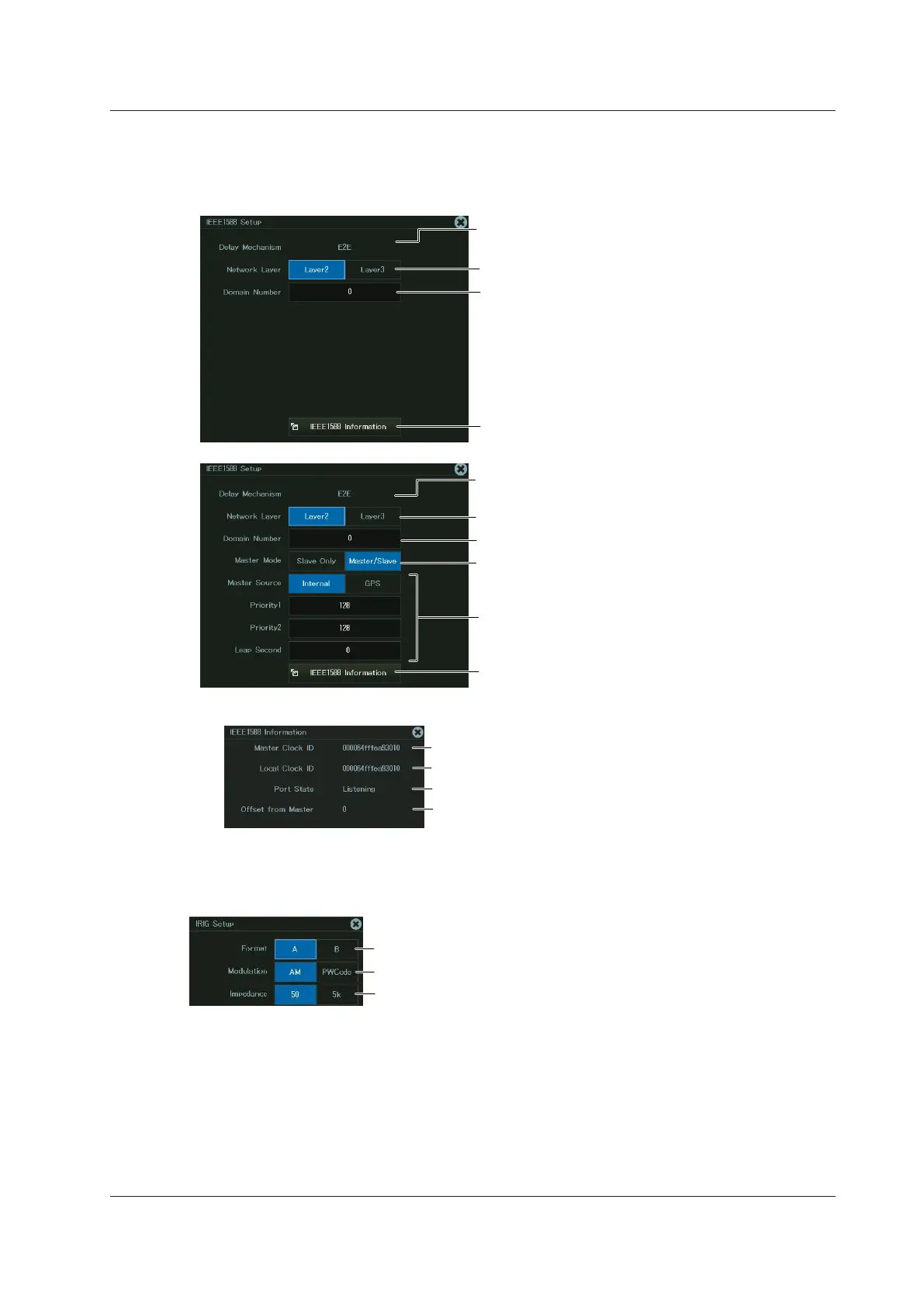

Configuring IEEE1588 Settings (IEEE1588)
4.
Tap IEEE1588, or press the soft key. The following screen appears.
Set the delay correction method.
(fixed to “End to End(E2E)”)
Set the network layer.
Set the domain number (0 to 255).
Configure the master settings.
► sec. 21.2
When the IEEE1588 master function (/C40) option is installed
When the IEEE1588 master function (/C40) option is not installed
Set the delay correction method.
(fixed to “End to End(E2E)”)
Set the network layer.
Set the domain number (0 to 255).
Set master/slave.
Slave Only: Fixed to slave
Master/Slave: Operate as master or slave
IEEE1588 information display
IEEE1588 information display
IEEE1588 Information Display
Master clock ID (64-bit identifier)
Local clock ID (64-bit identifier)
Port status
Offset from master
Configuring IRIG Settings (IRIG)
4.
Tap IRIG, or press the soft key. The following screen appears.
Set the time code format (A, B).
Set the modulation mode (AM, PWCode).
Set the impedance (50, 5k).
21.1 Setting Time Synchronization Mode
