Input Setup (Setup)
2.
Tap Setup, or press the soft key. The following screen appears.
The items on the input setting screen vary depending on the installed modules and
measurement items. For details on the settings, see the explanation of the measurement
items in section 2.1 and later.
3.

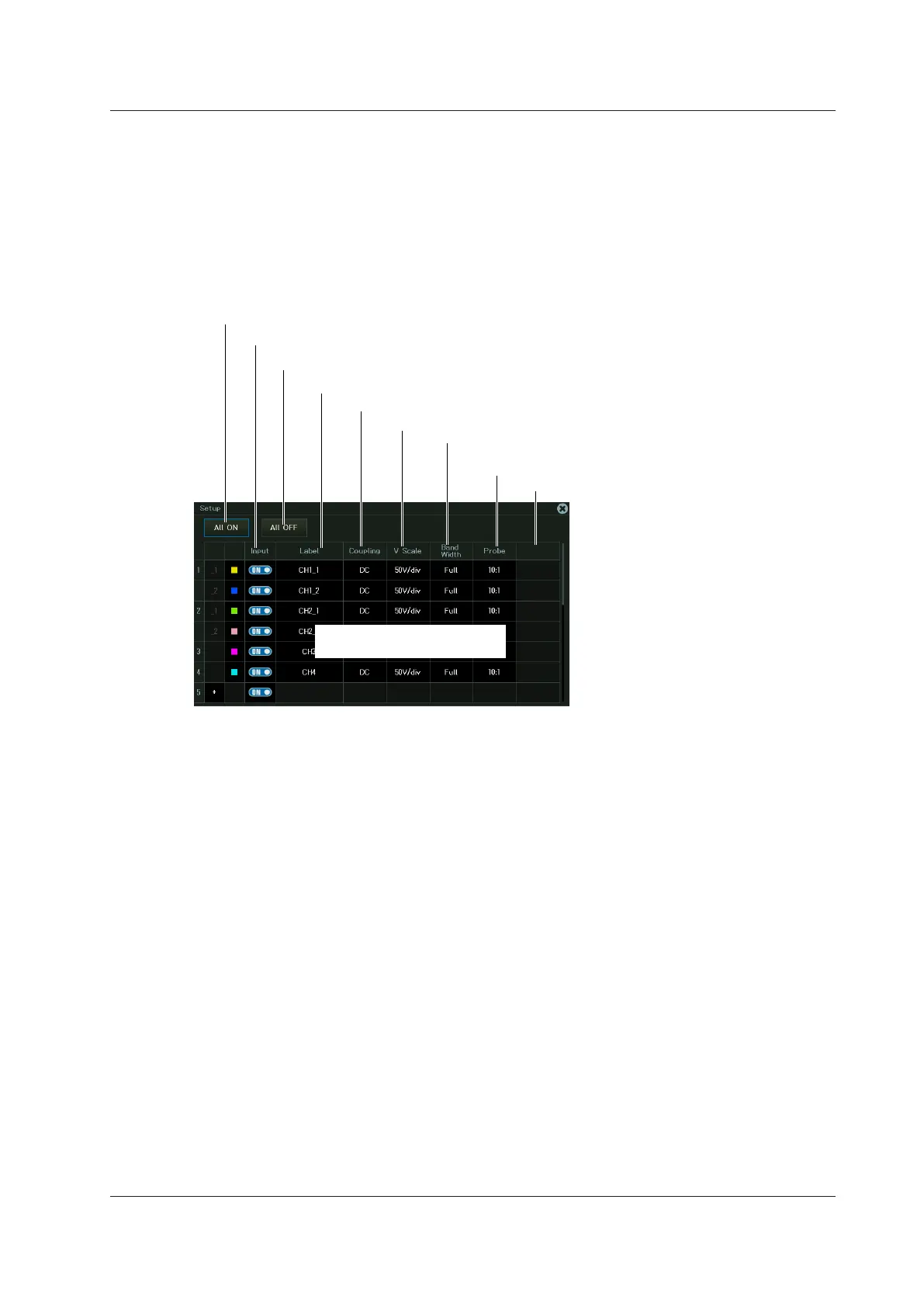

Tap the items of each channel. Use the displayed list (options) or input box to set the items.
Input coupling
Turns waveform input on for all channels
Turns waveform input off for all channels
Turns the waveform input on or off
Display label
Vertical scale
Bandwidth limit
Probe attenuation, current-to-voltage conversion
ratio, or bridge voltage (for strain measurement)
Scroll to display channels
that do not fit in the screen.
Gauge factor (for strain measurement)
2.12 Displaying the All Channel Setup Menu
To Next Page
