Channel Information Display Method
With the setup menu not shown on the screen, tap the channel information icon at the lower
right of the screen.
The icon varies depending on the channel information display range setting.
When the setup menu is not displayed, you can press ESC to switch between setup
information display, measured value display, and hidden.
When the channel information display is on, the icon background is displayed in blue.

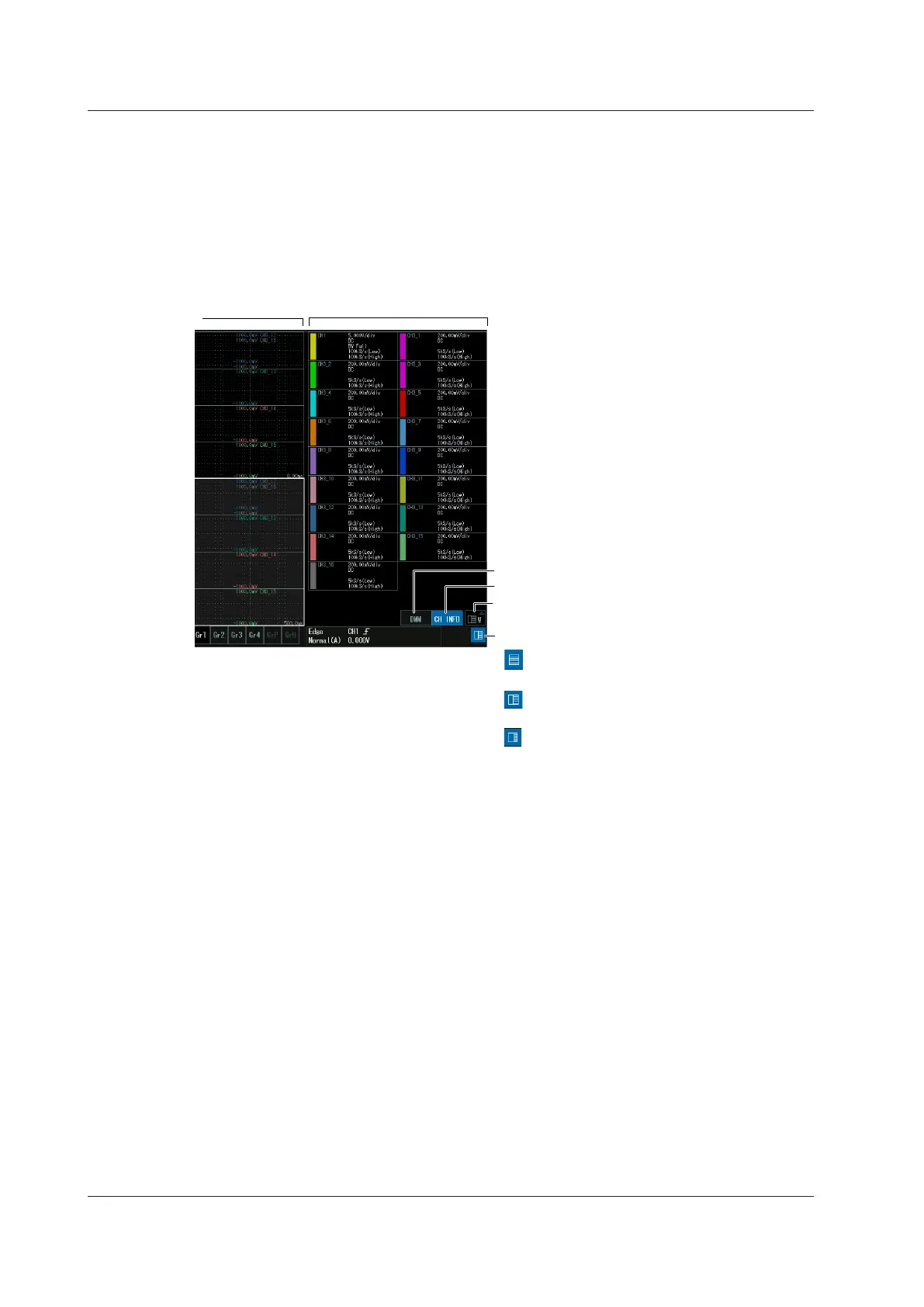

Channel information icon
When the channel information display
range is set to Full
When the channel information display
range is set to Narrow
When the channel information display
range is set to Wide
Measurement display (monitor)
Setup information display
Set the channel information display range.
Setup information and measurement
Waveform display
5.4 Configuring the Detailed Display Settings
