Measuring X-Y Waveforms with Horizontal Cursors (Horizontal)
3.
Tap Type, or press the soft key to select Horizontal.
See “Setting Measurement Items.”
Set the cursor positions (Cursor1: Y1, Cursor2: Y2).

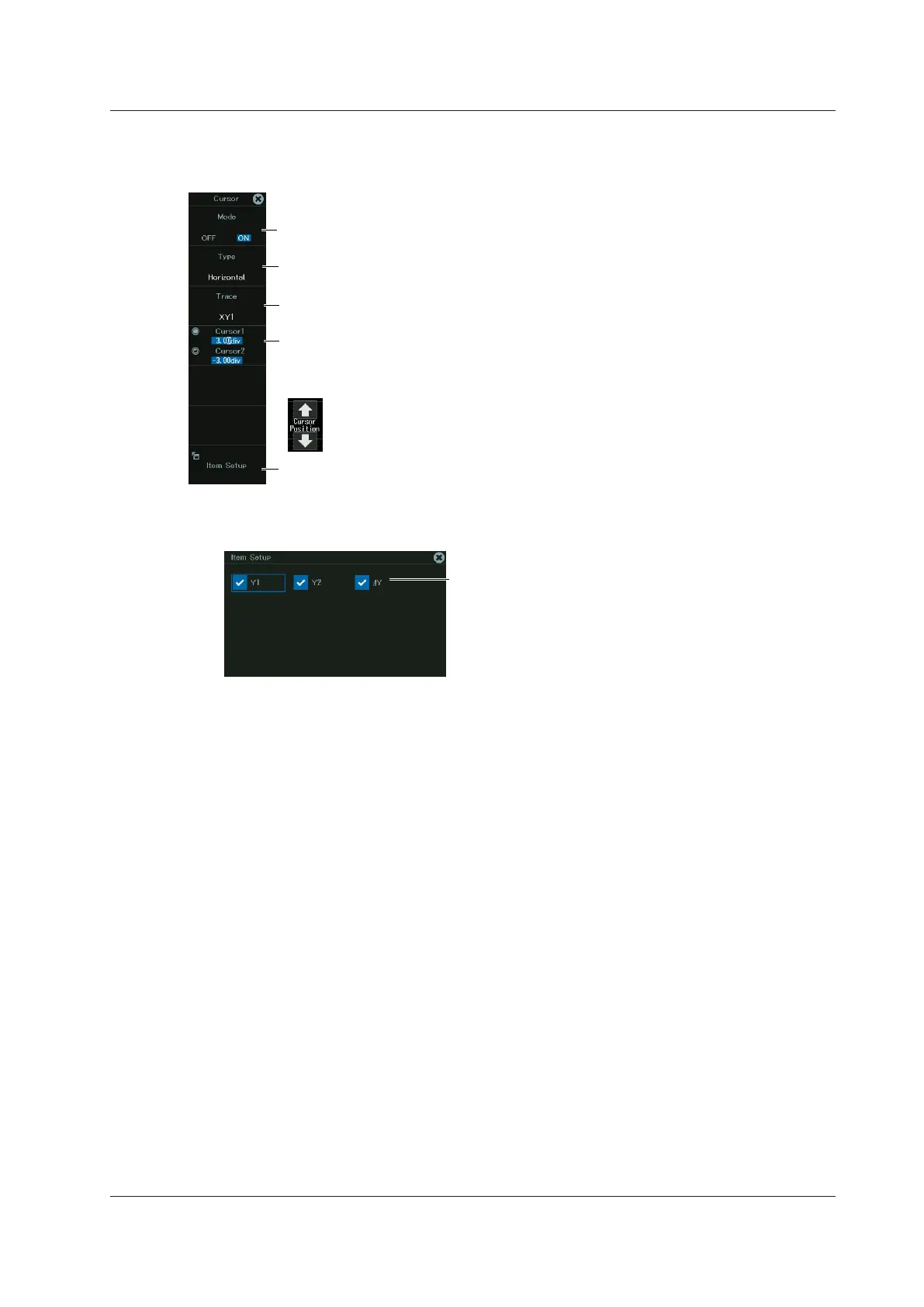

You can also drag the cursors on the X-Y screen. Tap the cursor and
then tap the arrow that appears (shown in the figure below) to adjust
the cursor position in fine increments.
Select the trace to measure with cursors (XY1 to XY8).
Set the cursor type to Horizontal (horizontal).
Set Mode to ON.
Setting Measurement Items (Item Setup)
4.
Tap Item Setup, or press the soft key. The following screen appears.
Select the measurement items that you want to use.
Y1: Vertical (Y axis) value at Cursor1
Y2: Vertical (Y axis) value at Cursor2
ΔY: Difference between the vertical (Y axis) values of
Cursor1 and Cursor2
6.3 Measuring X-Y Waveforms with Cursors
