6-7
IM DL950-02EN

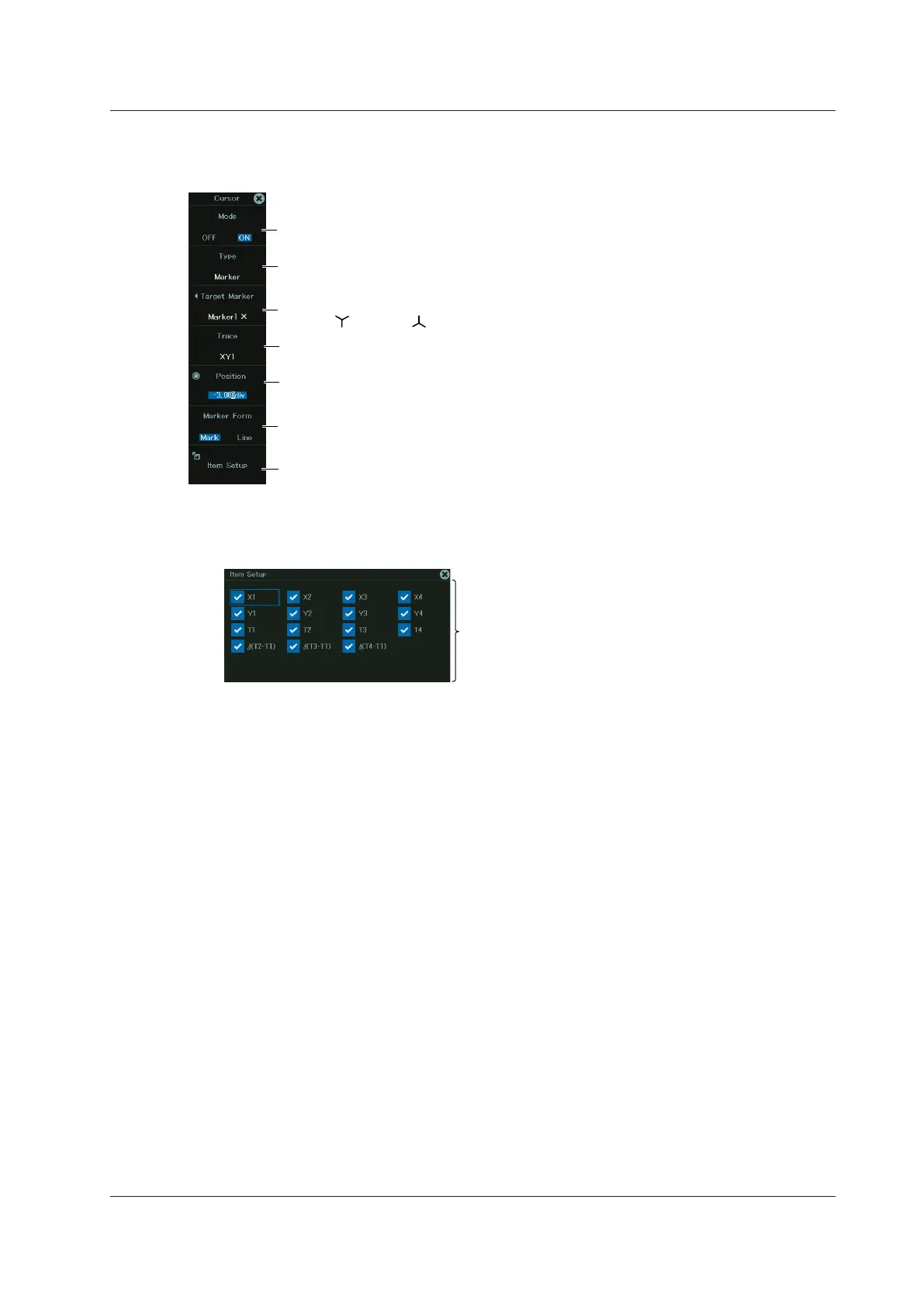

Measuring X-Y Waveforms with Marker Cursors (Marker)
3.
Tap Type, or press the soft key to select Marker.
See “Setting Measurement Items.”
Set the marker position.
You can also drag the cursors on the X-Y screen.
Select the trace to measure with cursors (XY1 to XY8).
Set the cursor type to Marker (marker).
Set Mode to ON.
Set the marker you want to edit (Marker1 X, Marker2 +,
Marker3 , Marker2 ).
Set the marker shape (Marker, Line).
Setting Measurement Items (Item Setup)
4.
Tap Item Seup, or press the soft key. The following screen appears.
Select the measurement items that you want to use.
X1: Horizontal (X axis) value at Marker1
X2: Horizontal (X axis) value at Marker2
X3: Horizontal (X axis) value at Marker3
X4: Horizontal (X axis) value at Marker4
Y1: Vertical (Y axis) value at Marker1
Y2: Vertical (Y axis) value at Marker2
Y3: Vertical (Y axis) value at Marker3
Y4: Vertical (Y axis) value at Marker4
T1: Time from the trigger position at Marker1
T2: Time from the trigger position at Marker2
T3: Time from the trigger position at Marker3
T4: Time from the trigger position at Marker4
Δ(T2-T1): Time difference between Marker1 and Marker2
Δ(T3-T1): Time difference between Marker1 and Marker3
Δ(T4-T1): Time difference between Marker1 and Marker4
6.3 Measuring X-Y Waveforms with Cursors
To Next Page
