YOKOGAWA ScopeCorder DL950 User Manual

7-3
IM DL950-02EN

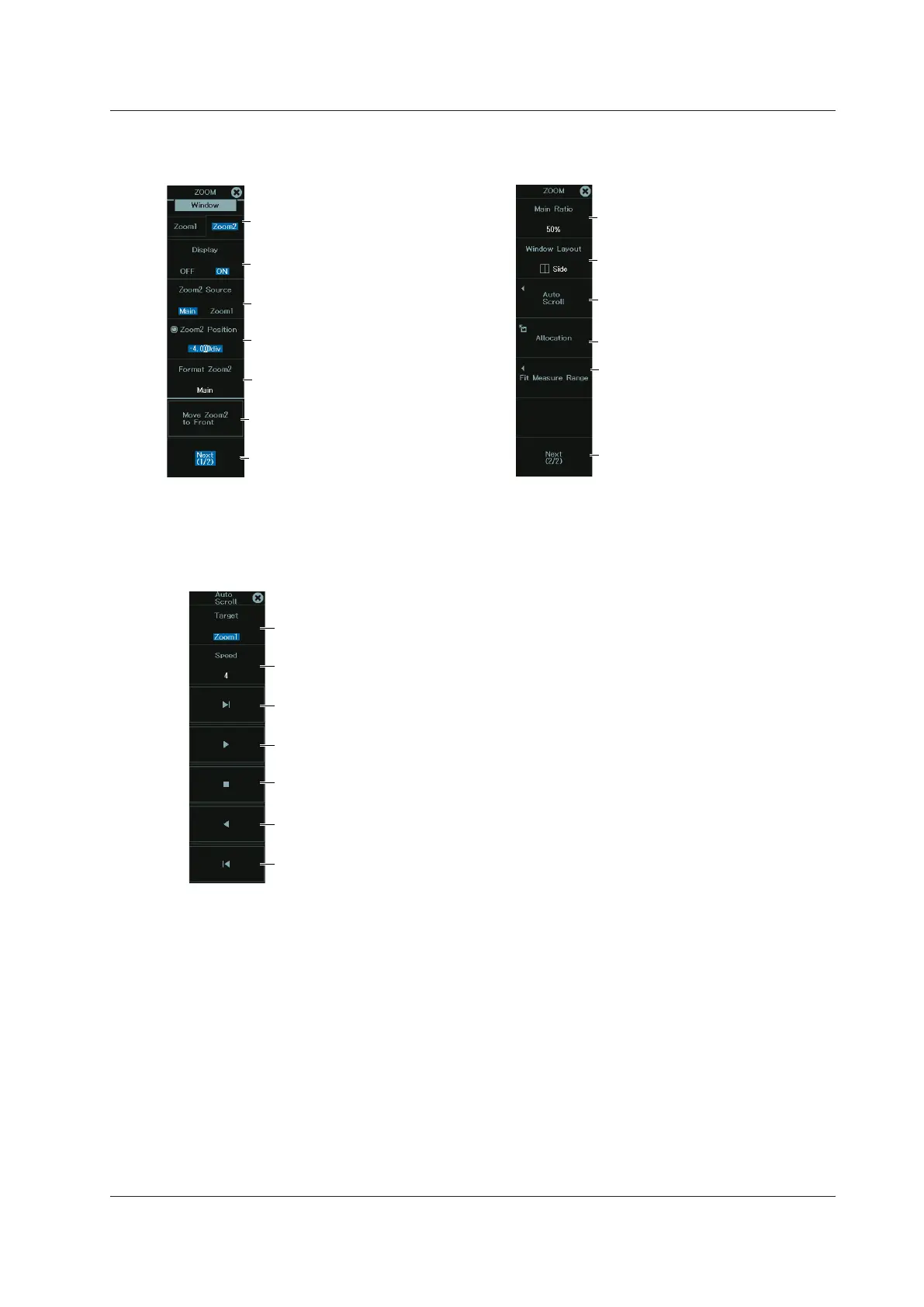

Configuring Zoom2
Set the zoom position.
Select Zoom2.
Turns the zoom window display
on or off
Set the display format (Main (same as
Main), 1, 2, 3, 4, 5, 6, 8, 12, 16).
Moves the zoom position to the
most recent position
Displays the second
page of the menu
ZOOM menu (page 1/2)
Set the main window’s
display ratio (50%, 20%, 0%).
Set the window layout
(Side, Vertical).
See “Setting Auto
Scrolling.”
See “Allocating Zoom Source
Waveforms.”
Displays the first
page of the menu
Set the range of automated
measurement of waveform
parameters to the zoom area.
Select either one when both
Zoom1 and Zoom2 are on.
ZOOM menu (page 2/2)
Set the zoom source window of
Zoom2 (Main, Zoom1).
Setting Auto Scrolling (Auto Scroll)
2
. Tap Auto Scroll, or press the soft key. The following menu appears.
Set the source zoom box
(the zoom boxes that can be selected are displayed).
Set the scroll speed.
Zoom in on the right edge of the Main window
Scroll right
Stop auto scrolling
Scroll left
Zoom in on the left edge of the Main window
7.1 Zooming In on or Out of Waveforms (Scope mode)
