YOKOGAWA ScopeCorder DL950 User Manual

8-4
IM DL950-02EN
Configuring the Search Result Display Window (Zoom Window)
(Display Result) (Scope mode)
Set which zoom window, Z1 or Z2, to display the found waveform in. You can configure zoom
windows Z1 and Z2 when they are displayed. If both Z1 and Z2 are not displayed, Z1 will be
displayed when you press SHIFT+ZOOM (SEARCH) to display the SEARCH menu.

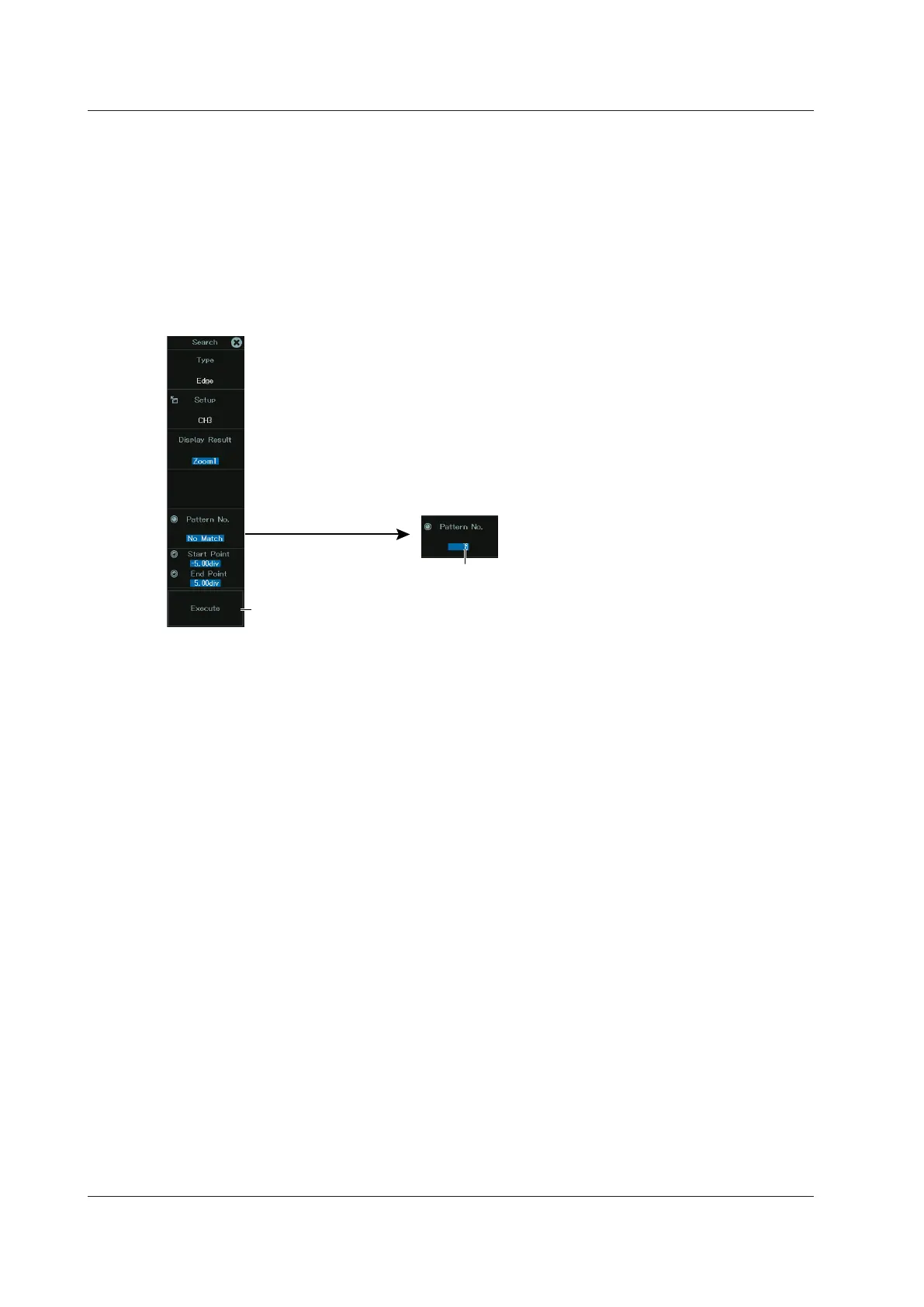

Executing a Search (Execute)
4.
Tap Execute, or press the soft key. The instrument executes the search.
Executes the search
This appears when a
point that matches the
specified search
conditions is found.
Detected point
Executing and Aborting a Search
After setting the search conditions, tap Execute, or press the soft key. The search is executed, and
the soft key changes to Abort. If the instrument finds points that match the search conditions (detected
points), it shows numbers (0, 1, 2, etc.) from the left of the waveform display in the order that the
points were detected.
To abort a search, tap Abort, or press the soft key.
Setting the Detected Point Numbers
You can set the detected point number and display the waveform with the detected point in the
center of the zoom window.
8.1 Searching for Edges
