Setting Measurement Time Period 2 (Area2 Mode)
Set this to simultaneously measure parameters in two areas.
2.
Tap Area2 Mode, or press the soft key.

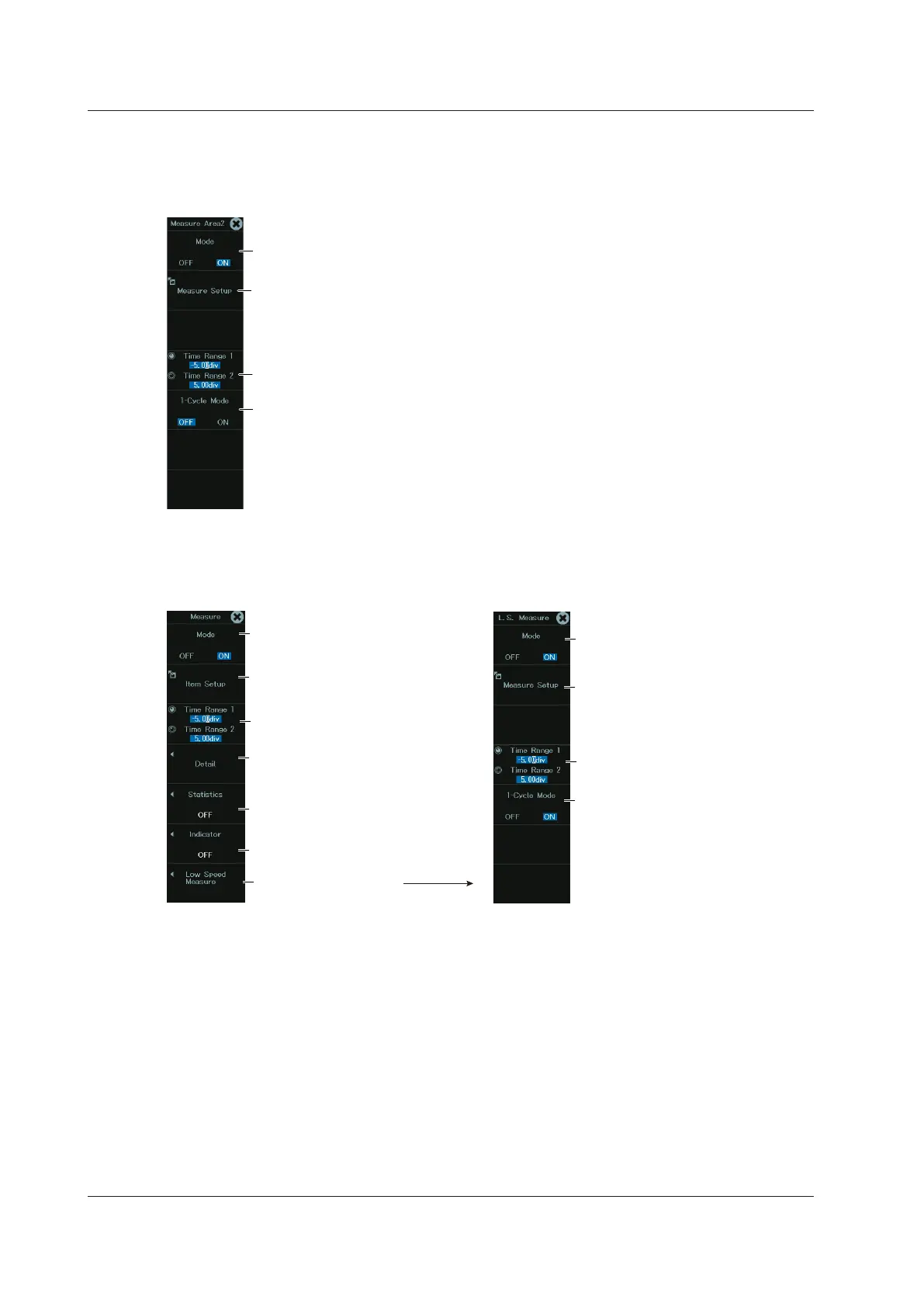

The following menu appears.
See “Setting the Source Waveform and
Measurement Items.”
Set measurement time period 2.
Turns 1-cycle mode on or off for
measurement time period 2
Turns measurement time period 2 on or off
During Dual Capture
When measuring in dual capture mode, set the measurement time period, measurement items, and
1-cycle mode separately for high-speed sampling and low-speed sampling.
Configure low-speed
sampling.
Set the measurement time
period (high-speed sampling).
Configure statistical processing.
► sec. 11.2, 11.3, 11.4
Turns automated
measurement on or off
(High-speed sampling)
See “Setting the Source Waveform
and Measurement Items.”
(High-speed sampling)
See “Setting the Time
Measurement Reference Level
and 1-Cycle Mode.”
See “Setting the Indicator.”
Set the measurement time
period (low-speed sampling).
Turns automated
measurement on or off
(Low-speed sampling)
See “Setting the Source Waveform
and Measurement Items.”
(Low-speed sampling)
Turns 1-cycle mode on or off
(Low-speed sampling)
11.1 Automatically Measuring Waveform Parameters
