Measuring with Peak Cursors (Peak)
3.
Tap Type, or press the soft key to select Peak.
See “Setting Measurement Items.”
Set the cursor mode to Peak.
Turns cursor measurement on or off
Set the measurement time period of Window1.
Set the measurement time period of Window2.
Setting Measurement Items (Setup)
4.

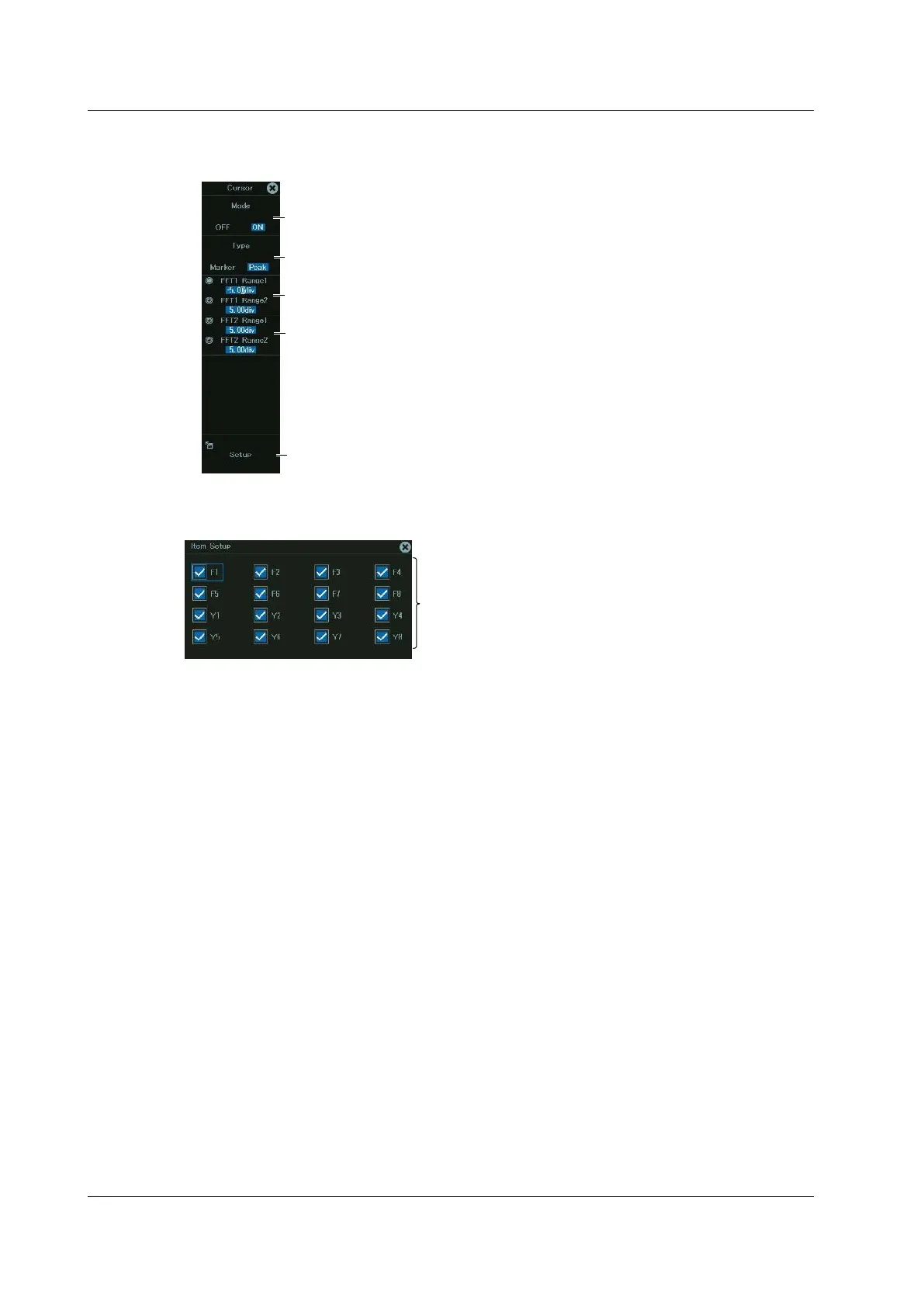

Tap Setup, or press the soft key. The following screen appears.
Select the measurement items that you want to use.
F1 to F8 The peak value frequencies of FFT1 to FFT8
Y1 to Y8 Peak values of FFT1 to FFT8
12.3 Measuring FFT Waveforms with Cursors
